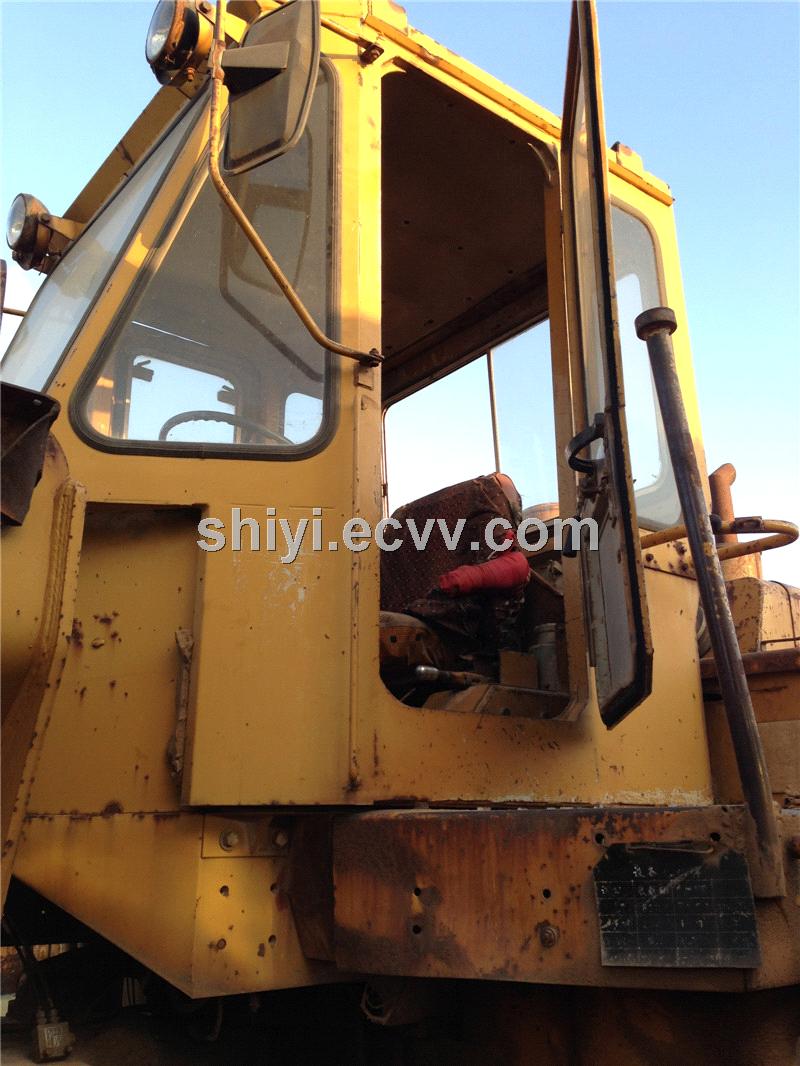

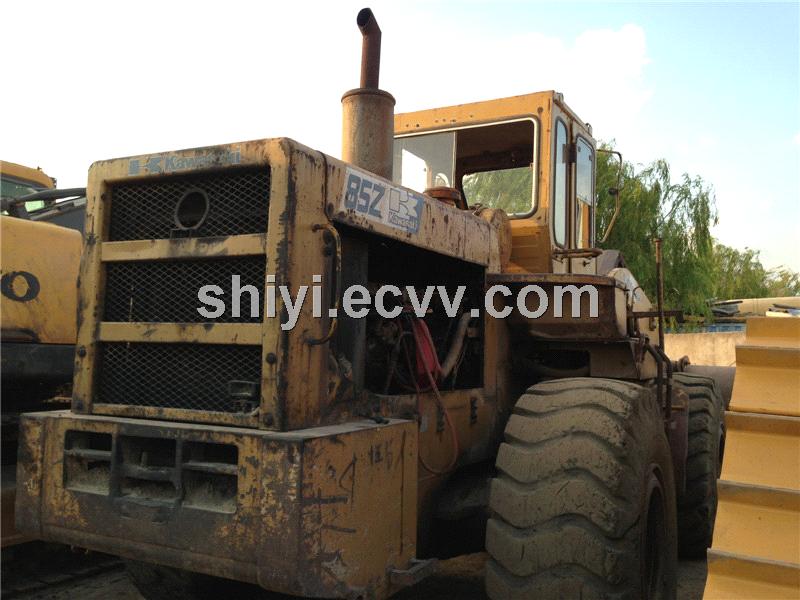

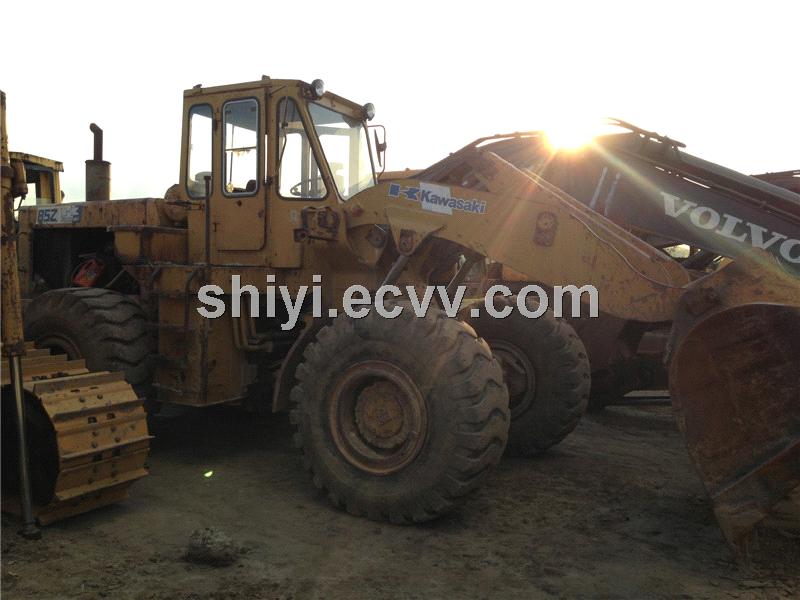

Used Wheel Loader Kawasaki 85Z in Good Condition

1.Brand: Kawasaki

Model: 85Z

Place of Origin: Japan

Engine Make: Cummins/ Nissan

Gross Power: 226 hp 168.5 kw

Displacement: 611 cu in 10 L Number of Cylinders:6

Aspiration: turbocharged



2.Operational Operating Weight: 19900 kg

Fuel Capacity: 290 L

Hydrauilc System Fluid Capacity : 254 L

Engine Oil Fluid Capacity: 37 L

Cooling System Fluid Capacity: 66 L

Transmission Fluid Capacity: 60 L

Front Axle/Diff Fluid Capacity: 55 L

Rear Axle/Diff Fluid Capacity: 55 L

Static Tipping Weight: 13594.2 kg

Turning Radius: 23.5 ft in 7150 mm

Operating Voltage: 24 V

Alternator Supplied Amperage: 75 amps

Rear Axle Oscillation: 30 degrees

Tire Size: 23.5-25-16PR (L-2)



3.Transmission Type: full power shift

Number of Forward Gears: 4

Number of Reverse Gears: 2

Max Speed - Forward: 36.2 km/h

Max Speed - Reverse: 15.6 km/h



4.Hydraulic System Pump Type: gear type

Relief Valve Pressure: 18133.2 kPa

Pump Flow Capacity: 210.8 L/min

Raise Time: 6.3 sec

Dump Time: 1.2 sec

Lower Time: 4 sec



5.Bucket Breakout Force: 164.9 kN

Dump Clearance at Max Raise: 9.6 ft in 2940 mm

Bucket Width: 9.7 ft in 2953 mm

Bucket Capacity - heaped: 4.3 yd3 3.3 m3

Bucket Capacity - struck: 3.7 yd3 2.8 m3



6.Dimensions Length with Bucket on Ground: 7635 mm

Width Over Tires: 2950 mm

Height to Top of Cab: 3625 mm

Ground Clearance: 540 mm

Wheelbase: 3200 mm

Hinge Pin - Max Height: 4102.6 mm

Reach at Max Lift and Dump: 1010 mm
