| OEM: | Support |
|---|---|
| GPRS: | Support |
| GSM/GPS: | Support |
| Colour: | Blue |
Quick Details
Specifications
Product Description

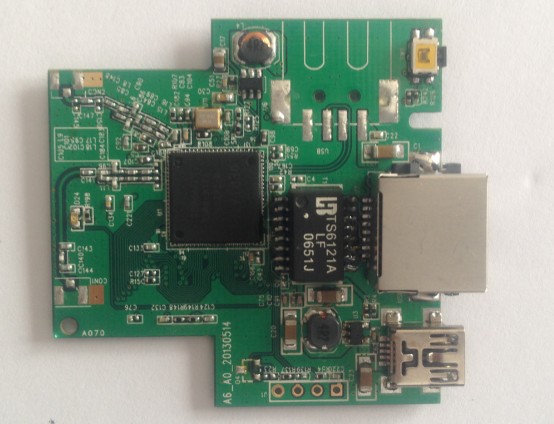

The module of AR9331 is a complete, small form factor 802.11 b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a few external 3.3V power supply and connection to antenna.
Full function WIFI module based on Atheros AR9331 chip solution, could share the local network and 3G network to a WIFI hotspot rapidly. The module could help the users to expand peripheral interface fully on main board, support large-capacity storage, removable hard disk, U disk, CF and SD card. This module can be widely used in mobile power, MIFI, wireless card reader, wireless mobile HDD and various industrial embedded usages.
The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.
The module support AP mode and client mode at the same time and include mass service application software to reduce the research and design work of customer.
Product Features
1, MIPS 24K processor operating at up to 400 Mhz.
2, DD2 memory up to 512 Mb.
3, SPI NOR Flash memory up to 64Mb.
4, 4LAN ports and 1 WAN port
5, High-speed UART for console support
6, USB 2.0 host/device mode support
7, GPIO/LED support
8, SPI support.
Product Specification:
|
System info |
|
|
System |
OpenWRT, Linux SDK |
|
Hardware Spec |
|
|
CPU |
Atheros AR9331 |
|
Memory |
64MB DDRII (Up to you) |
|
Flash |
8MB Nor (Up to you) |
|
Wireless Rate |
2.4GHz 1T1R, up to 150Mbps |
|
Interface |
1 10/100M WAN, 4 10/100M LAN (Auto MDI/MDIX); |
|
1 USB 2.0 |
|
|
2 GPIO |
|
|
Reset |
WPS/Reset Button; |
|
Power Supply |
Input 3.3V±5%, average Current 200MA, max 600mA |
|
Dimensions |
40.5*27.5*2.5mm |
|
Wireless Spec |
|
|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Frequency |
2.4-2.4835GHz& 5GHz |
|
Basic Functions |
Wireless switch; |
|
SSID broadcast switch; |
|
|
2.4GHz channel selection: 1-13; |
|
|
Band bandwidth: 20MHz, 40MHz, automatically; |
|
|
2.4GHz wireless modes: 11n only, 11 bgn mixed (default), 11 bg mixed, 11g only, 11b only; |
|
|
Data Transmission Rate |
11n: 135/121.5/108/81/54/40.5/27/13.5Mbps; |
|
130/117/104/78/52/39/26/13Mbps; |
|
|
65/58.5/52/39/26/19.5/13/6.5Mbps; |
|
|
11g: 54/48/36/24/18/12/9/6M(adaptive); |
|
|
11b: 11/5.5/2/1M(adaptive) |
|
|
Transmission Distance |
Outdoor 300 meters |
|
RF output power(Typical) |
802.11n:15dBm for OFDM mode; |
|
802.11g: 17dBm for OFDM mode; |
|
|
802.11b: 20dBm fro CCK mode |
|
|
Reception Sensitivity |
130M_2.4G: -74dBm; |
|
54M_2.4G: -79dBm; |
|
|
6M_2.4G: -94dBm |
|
|
Wireless Security |
Wireless MAC address filtering; |
|
Wireless security function switch; |
|
|
64/128/152 bit WEP encryption; |
|
|
WPA-PSK/WPA2-PSK, WPA/WPA2; |
|
|
WPS fast security settings |
|
|
Software Functions |
|
|
Utility Functions |
ADSL&DHCP automatic access; |
|
Support IE,Firefox, safari, chrome; |
|
|
QOS(WMM,Bandwidth Control); |
|
|
DDNS |
|
|
Work Modes |
AP, Router, WDS |
|
Network Settings |
WAN Types: Dynamic IP/Static IP/PPPoE |
|
Dial-up way types: automatic dial-up, on-demand dialing, manual dialing, timing function; |
|
|
MAC address modification and cloning; |
|
|
Static routing; |
|
|
QSS; |
|
|
User Configuration Wizard |
|
|
DHCP |
DHCP Server; |
|
DHCP Client; |
|
|
Client List; |
|
|
Address Reservation |
|
|
Port Forwarding |
Virtual Server; |
|
Port Triggering; |
|
|
DMZ; |
|
|
UPnP |
|
|
Security Settings |
IP and MAC Address Binding; |
|
Dynamic routing; |
|
|
IP Address Filter; |
|
|
Domain Filter; |
|
|
MAC Address Filter; |
|
|
System tool |
Traffic statistics; |
|
System language settings; |
|
|
System clock settings; |
|
|
Restore the factory settings; |
|
|
System upgrades; |
|
|
System reboot; |
|
|
Password change; |
|
|
System security log; |
|
|
Network Diagnostics; |
|
|
Remote Web management; |
|
|
backup system configuration |
|
|
Other |
|
|
Environment |
Operating temperature: -10℃ to 55℃; |
|
Storage Temperature: -40℃ to 70℃; |
|
|
Operating Humidity: 10% to 90% RH non-condensing; |
|
|
Storage humidity: 5% to 90% RH non-condensing |
|
