After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Certification: | ISO9001/ ISO14001/ ISO18001,CTI |
Brand Name: | ARK |
Material: | FRP |
Condition: | New |
Model Number: | FKY |
Place of Origin: | China (Mainland) |
cooling tower: | open round type |
Quick Details
Specifications
1. the whole structure is solid and light; the body and water pond is
Manufactured with reinforced glass fibre (FRP glass fiber reinforced plastics),
Never being corrosive. the surface finish is added with ultraviolet inhibitor,
Which can resist sunshine attack and damage.
2. All steel and iron
Material is processed through galvanizing by dipping, corrosion resisting and
Durable.
3. Special designed axial-flow type air blower applies belt
Reduction gear, reducing low noise and sufficient wind; tailor-made water-drop
Noise reduction carpet to eliminate water sound.
4. Apply special design
PVC water block curtain (water-stop) to prevent splashing) remarkably; pressure
Drop loss is slight and splashing loss is under 0.001%.
5. Special
Designed water sprinkler with big bore diameter, which won't cause blocking but
the sprinkling effect is very good. It is installed in the tower, so it won't
Bee polluted by outside dust and foreign matters.
6. Apply cellular
Vacuum molding heat dissipation material, stagger arrangement surface has
Grooves and the heat exchange effect is especially good.
7. Water pond
Applies slant design, easy to wash, containing less water; the operating weight
Is lower, but the water tank is very big, so it won't absorb air.
8. the
Cooling tower support is light and solid,
Convenient to assembly no matter there is suspension iron rack or not.

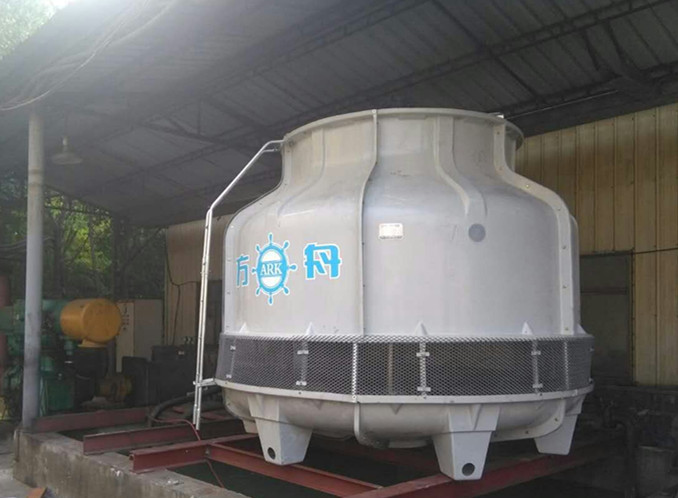

Product structure
Attractive appearance It has small overall
Dimension and light weight and it can fully use the space and save the areas.
the appearance is attractive and tidy.
Light weight and high strength the tower body has adopted the glass fiber Reinforced polyester resin materials (FRP) composite materials and new materials with light weight and high strength and it can undertake the magnitude 8. 0 Earthquake and the typhoon level 12 and the snow load is greater than 200kg/m2.
Minimum noise It has adopted the low noise axial flow blower of advanced Technology in domestic as well as the special silencing technique and its noise Index is at the advanced level in the industry.
High quality packing It has special combustion-supporting packing and has Adopted the rigid vinyl chloride (PVC) plates. It is applied with special Embossing processing and there is the integrated fluid baffle at the internal Edge (the side of fan). The heat exchange performance of water and air is Furthest improved and the drifting of water is reduced to the minimum. It is Sturdy and durable and the heat-resistance temperature is 50. It has the Excellent environmental protection performance.
Reliable and durable All of the main parts are processed with hot-dip Galvanizing to obtain good corrosion resistance performance and its service life Is longer than the similar products.
Unique design
1) the water inlet system, water spray system, water
Collecting system and heat dissipation packing are calculated through scientific
Approach and it is rigorous designed to keep smooth water flow and avoid the
Scaling and blocking.
2) the vacuum forming heat dissipation materials that successfully pass the Special design test are used and they have excellent heat exchange effects, the Heat dissipation materials have the special diversion design that can prevent The splash of water and make them flow downward along with the heat dissipation Materials.
3) the flowing-wind plate is used to make rectification to inlet air and make It smooth so as to obtain good water retaining performance.
