| Size: | 75mm,100mm,150mm,200mm |
|---|---|
| Bonding Agent: | Resin |
| Abrasive: | Diamond |
| Shape: | Dish |
| Brand Name: | Moresuperhard |
| Viscosity: | 100% |
| Hardness: | N |
| Model Number: | 12V9 |
| Place of Origin: | China (Mainland) |
| diamond grinding wheel: | 12V9 diamond grinding wheel |
| gash grinding wheel: | diamond gashing wheel |
| diamond gridning wheel for carbide: | 12V9 diamond grinding wheel |
Quick Details
Specifications
Diamond Grinding Wheel | Diamond Wheel | Saw Sharpening Wheel | Diamond Grinding Wheel for Carbide

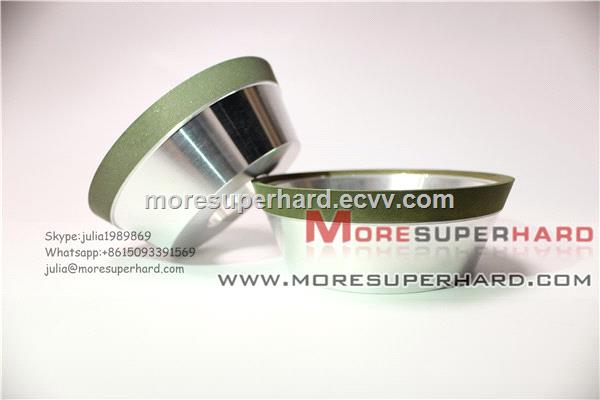

Resin bond diamond grinding wheel for carbide's rough and fine grinding
Contact: Julia
Application:
-12V9 diamond grinding wheel used for sharpening and finishing of cutting tools back surface.
*the abrasive layer of the grinding wheel can be made of synthetic diamond powder and CBN powder in resin,metal or vitrified bonds.
Diamond wheels can be used to grind various materials including tungsten carbide, glass, ceramics, fiberglass, plastics, stone and abrasives. CBN wheels are used to grind high speed steels, tool & die steels, alloy steels, Aerospace alloys and hard stainless steels.
Resin Bond wheels are the most commonly used. They have good elasticity, can produce fine surface finishes and give high grinding performance. Many types of resin-bonded diamond wheels are specially made for a specific application. these are particularly suited for the grinding of carbide tipped and inserted tooling such as Saws, Cutters, Reamers and End-mills. They are utilized in precision grinding operations on carbide dies, rolls and carbide wear parts. Resin bonds are the best choice for precision finishing of ceramics as well as grinding tungsten carbide and ceramic thermal spray coatings.
When combined with CBN, resin bonds can be used for grinding high-speed steels, tool and die steels and super alloys with a hardness greater than HRC 50.
We offer a full range of FEPA Standard shape diamond and CBN wheels.
the resin bond products have the features of good self-sharpening, sharp cutting, high efficiency, low roughness of work piece surface, few heat generating and without burning work piece. They are suitable for high efficiency and precision grinding of most work pieces. They are suitable for high efficiency and precision grinding of most work pieces.
We are able to provide resin bond superabrasive grinding wheels according to the standard GB/T6409.2-1996. the diameter range is 10~700mm;the thickness range is 0.07~300mm;the grit size range is 60/70~W3.5. We can also design and make nonstandard grinding wheels according to customer's requirement.
Application:
Resin bond diamond products: mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, silicon materials, thermal spraying alloy materials and so on.
Resin bond CBN products: mainly used for machining high speed steel, cast iron and so on.
Standard sizes:
(Non standard shape and sizes can be made at special request)
D, mm |
T, mm |
H, mm |
U, mm |
X, mm |
V,o |
75 |
20 |
20 |
10 |
2 |
45 |
75 |
20 |
20 |
10 |
2 |
45 |
100 |
20 |
20 |
10 |
2 |
45 |
100 |
20 |
20 |
10 |
2 |
45 |
100 |
20 |
20 |
10 |
3 |
45 |
125 |
25 |
20 |
10 |
2 |
45 |
125 |
25 |
20 |
10 |
2 |
45 |
125 |
25 |
20 |
10 |
3 |
45 |
150 |
25 |
32 |
10 |
2 |
30 |
Non-standard shape and sizes can be made at special request.
Application
-cutter sharpening
Material to be ground
- carbides
- mineral ceramics
- composites
