| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |

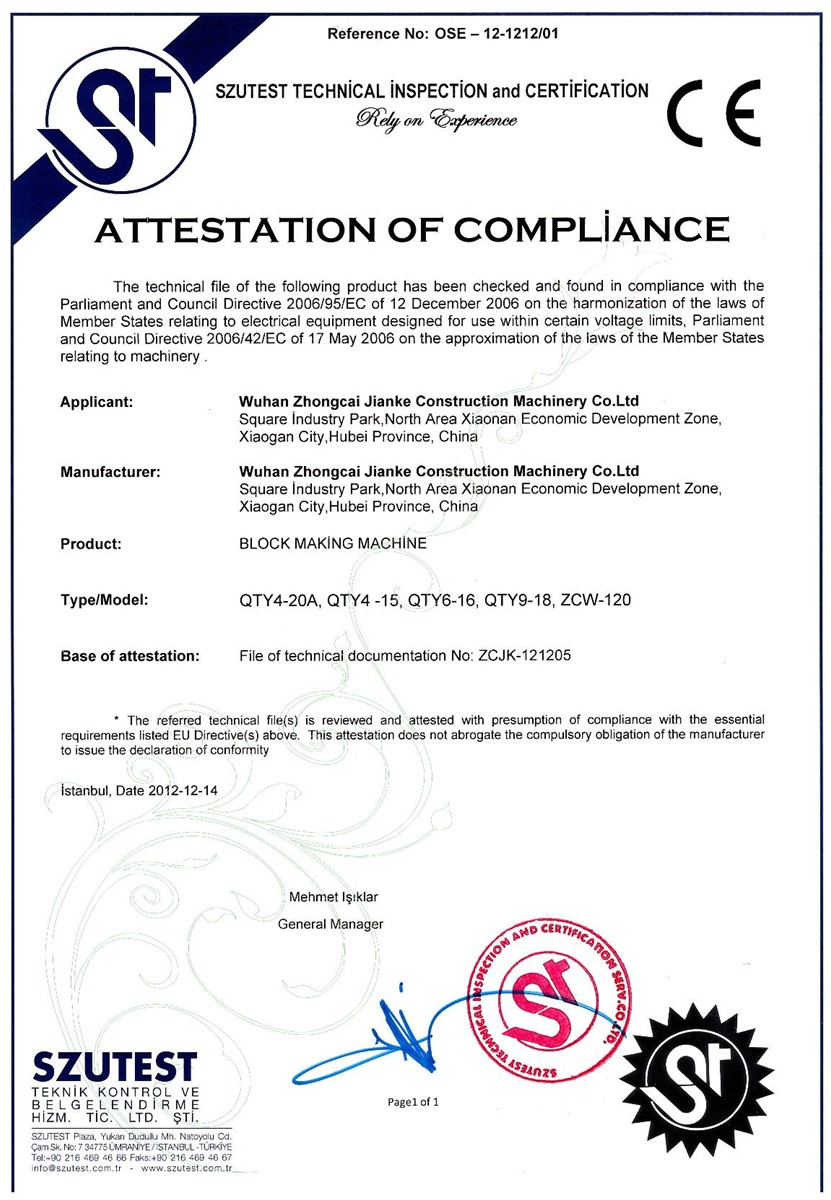

| Certification: | ISO9001,CE,BV,SGS |
| Dimension(L*W*H): | 2140*1220*2350mm |
| Power: | 15KW |
| Voltage: | 380v |
| Model Number: | ZCY-200 |
| Brand Name: | zhongcai jianke |
| Place of Origin: | China (Mainland) |
| Capacity: | 250*250*50mm 1920pcs/8 hours |
| Automatic: | Yes |
| Method: | Hydraulic Pressure |
| Processing: | Brick Production Line |
| Brick Raw Material: | Cement |
| Type: | Paving Block Making Machine |
| Condition: | New |
Quick Details
Specifications
Zhongcai jianke interlocking block making machine price
|
Introduction: |
|
Productivity: Give the example of the production with dimensions at 250*250*50mm,240pcs produced in one hour, and 300 workdays in one year, the annual output is 720,000pcs |
|
Land area:1000m2(50m2 for workshop, 50m2 for warehouse, 50m2 for office, 850m2 for other purse) |
|
Manpower:4 workers(2 for machine operation,1 for blending machine and feeding operation, 1 for transportation) |
|
Water and power supply: Total capacity installed: 15KW Average power consumption: 8KW/hour Average water consumption: 4T/day |
|
Main raw material: sand, mountain flour and cement |
|
Technical Specifications |
|
|
Maximum pressure |
200T |
|
Rated pressure |
180T |
|
Maximum pressure of oil pump |
31.5mPa |
|
Cycle of forming |
Twice/minute |
|
Motor power |
11KW |
|
Forming table top |
700*655mm |
|
Overall weight of machine |
2.4T |
|
Demolding table top |
700*655mm |
|
Paving brick |
250*250*50mm 240pcs/hour |
|
Production capacity |
250*250*50mm 1920pcs/8 hours |
|
Dimensions |
2140*1220*2350mm |
|
Items of investment |
|
|
Component of production line |
Quantity |
|
ZCY-200 multiple-purpose paving Machine |
1 |
|
Hydraulic Station |
1 |
|
Free mould |
1 |
|
Brief Introduction of our company |
|
Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments
Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.
|
