| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO9001,CE,BV,SGS |
| Dimension(L*W*H): | 3000 mm * 2200 mm * 2500 mm |
| Power: | 15.5KW |
| Voltage: | 380v |
| Model Number: | QTY3000 |
| Brand Name: | jin laibao |
| Place of Origin: | China (Mainland) |
| Capacity: | 23040pieces/8 hours(200*100*60mm) |
| Automatic: | semi automatic |
| Method: | Hydraulic Pressure |
| Processing: | Brick Molding Machine |
| Brick Raw Material: | cementconcrete,fly ash,sand,etc |
| Type: | Interlock Block Making Machine |
| Condition: | New |
Quick Details
Specifications

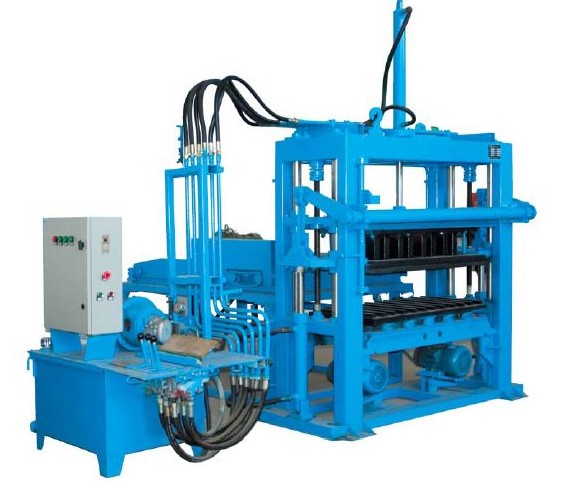

Cement Block machine block making machine
Technical Specifications:
Technical Specifications:
| Description | Parameters |
| Products in one operation | 1 piece of curbstone (995 * 120 * 300) |
| Output in eight hours | 400 pieces (give an example of 995 curbstone) |
| Paving Brick | 200*100*60mm 16 pcs/mould |
| Vibration frequency | 5000 times a minute |
| Production capacity | 23040 pieces per shift |
| Vibration time | About 10 seconds for one vibration |
| Installed capacity | 15.5KW |
| Weight of the whole machine | 3600 KG |
| External dimensions | 3000 mm * 2200 mm * 2500 mm |
| Force of agitation & vibration | 68 KN |
| Vibration amplitude | 1.5 mm |
Items of Investment
| Component of production lineComponent of production line | Quantity |
| QTY3000 Colorful Hydraulic Brick Making Machine | 1 |
| JQ350 Mixer | 1 |
| Free mould |
