| Application: | Laser Engraving |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 90x60x40cm |
| Model Number: | RF-3020-CO2-40W |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Engraving Speed: | 0-180mm/s |
| Engraving Area: | 300*200mm |
| Laser Type: | CO2 |
| Condition: | New |
| custom made: | yes |
| laser power: | 40w |
| application: | laser cutting and engraving |
| up and down working table: | yes |
| power cable: | USA,EURO,ASIA |
Quick Details
Specifications
RF-3020-CO2-40W laser engraving and cutting machine
Laser power 40W
Power supply AC220±10% 50 HZ/AC110±10% 60HZ
Working area 300*200mm
Max moving speed 0-180mm/s
Laser energy control 1-100℅ set by hand or software
Worktable Professi Worktable :Professional Fixture platform
Lens Diameter: Lens:Diameter: 18mm, focus length: 50mm
Locating precision <0.01mm
Mini shaping characterletter: 0.8mmx0.8mm
Operating temperature5℃-35℃
Data transfer interfaceUSB
System environmentWINDOWS 2000/WINDOWS XP
Cooling wayWater cooling and protection system
Compatible softwareLASER DRAW
Cutting thickness0-3mm (depends on different materials)
Package dimension 90x60x40cm
Gross weight 41 kg

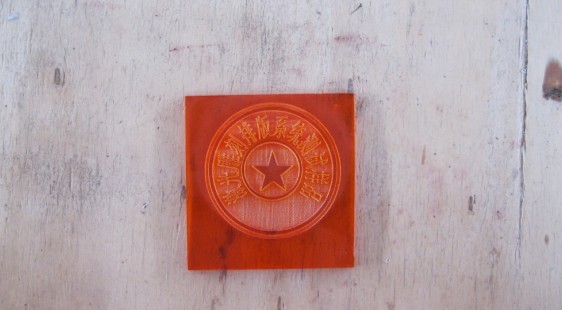

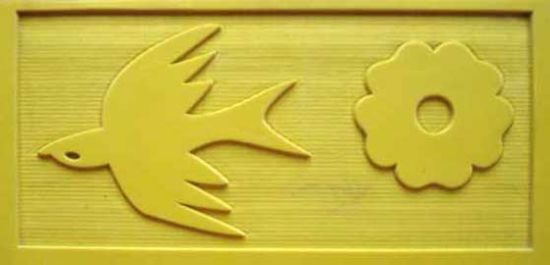

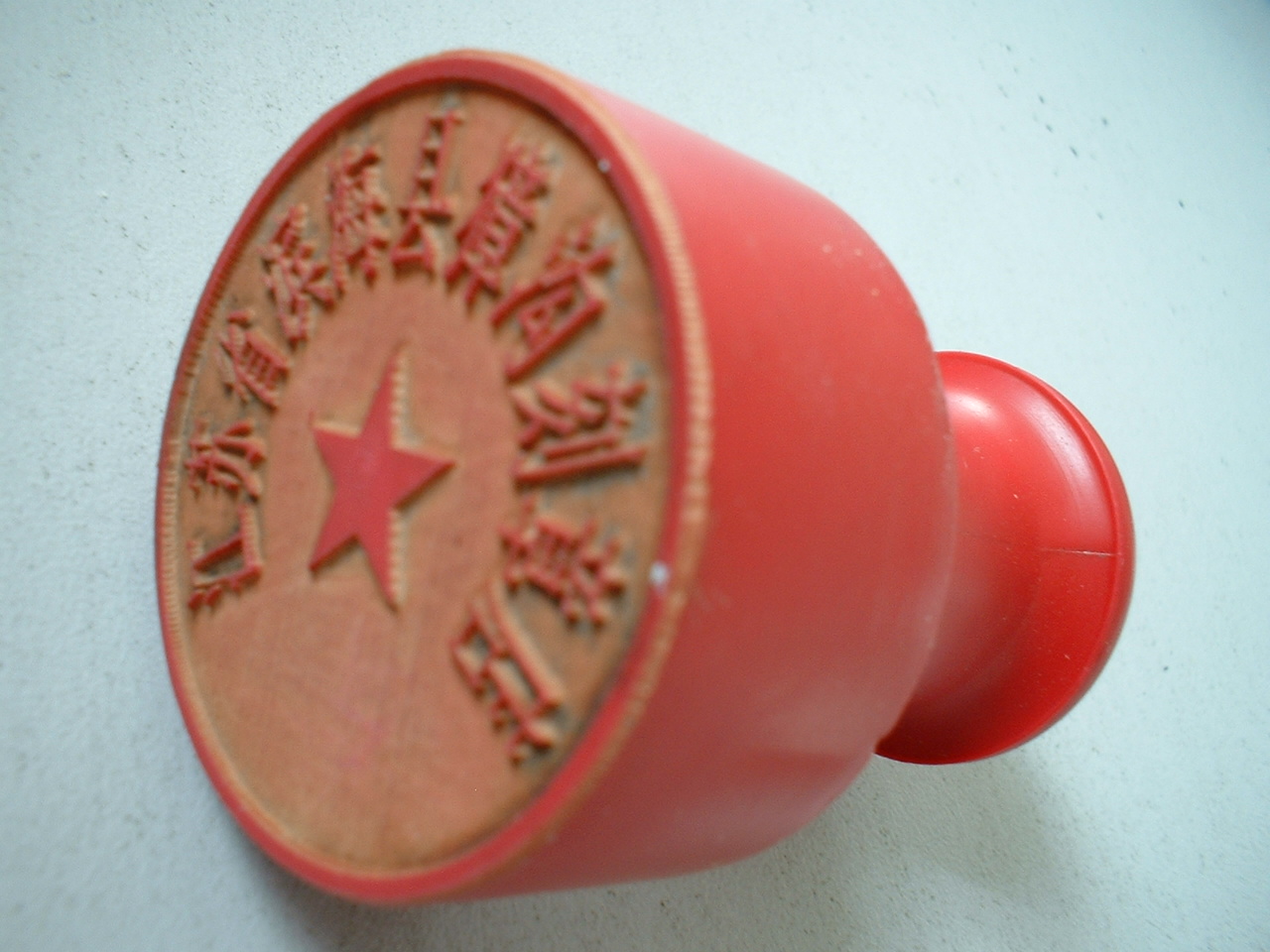

samples:
