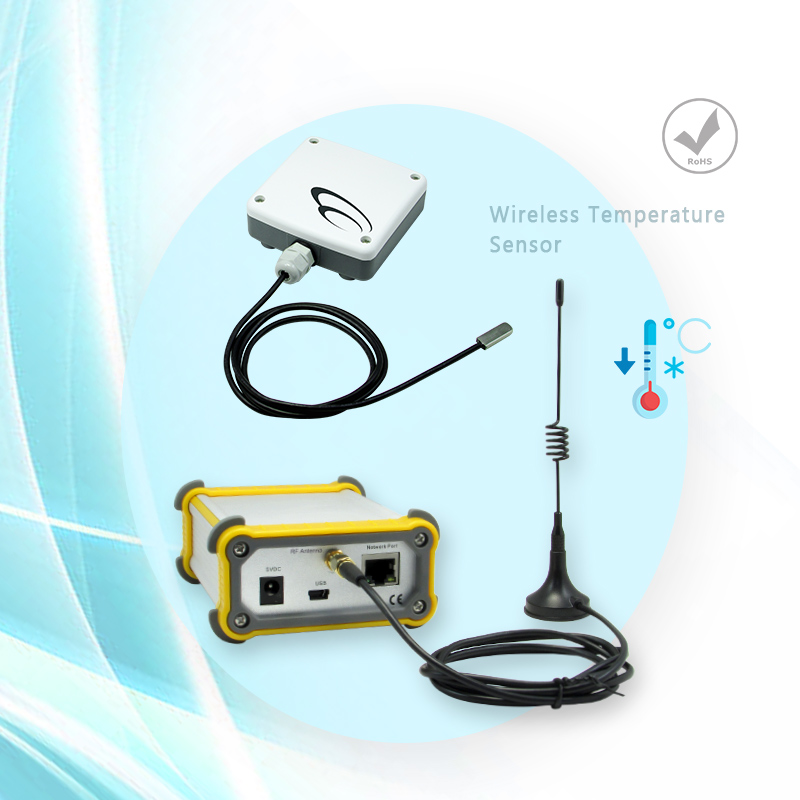

G7-T2, G7-TXWireless Temperature Sensor System

with G7 temperature wireless sensor and Base Station, you can start monitoring your premises environmental condition online.

Wireless sensor G7 transmits measurement to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.

G7-Centre App receives data from Base Station over Internet or LAN.

G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. by monitoring and understanding how environmental changes, you can adjust your air conditioner or heater to save energy and money.

[in the Package]

1 x Base Station & RF Antenna

1 x AC/DC Adaptor

1 x Ethernet Cable

up to 64 x Wireless Sensors in one single system



[how it Works]

(1) Wireless Sensor

the sensor transmits the temperature reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.

* G7-T2/TXWireless Temperature Sensor

* G7-H2/H3Wireless Temperature Humidity Sensor

* G7-T2/TX-ExWireless Temperature Sensor [Extended Power]

* G7-H2/H3-ExWireless Temperature Humidity Sensor [Extended Power]

* G7-ADWireless Analog Sensor

* G7-D2Wireless Digital Alarm Input



(2) Base Station

It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. this station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.

[Applications]

* water pipes network real time monitoring - water in and out temperature

* oil/gas pipes network, pump stations

* underground water level real time monitoring

* environmental monitoring system - wind/temperature//CO2/pressure

* remote Industrial equipment monitoring

* rural equipment monitoring e.g. Power plant, antenna tower

* measuring equipment data capture and report via Wi-Fi

* food chain, storage, transport industry, building management

* agricultural, farming, laboratory, medical industry
