| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ce,fda |
| Weight: | 1500kg |
| Dimension(L*W*H): | 3.5*2.2*1.8m |
| Power(W): | 2000w |
| Voltage: | AC220V |
| Model Number: | RF-1325-4 |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| machine body: | heavy machine body |
| drive mechanism: | xy rack gear z axis ball screw |
| working table: | heavy aluminum T slots |
| optional parts: | rotary axis |
Quick Details
Specifications
Performance:
Features:

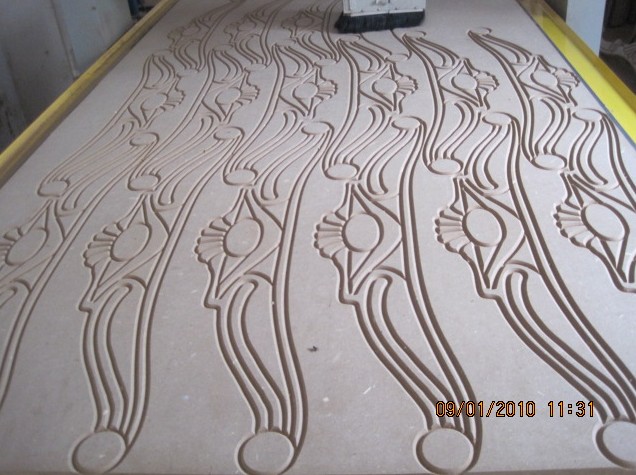

It can be used to engrave/carve on both flat and cylinder objects because the table is flexible.
welded with big and steel tube work more stable without vibration.
multi-heads working at the same time more efficiency
|

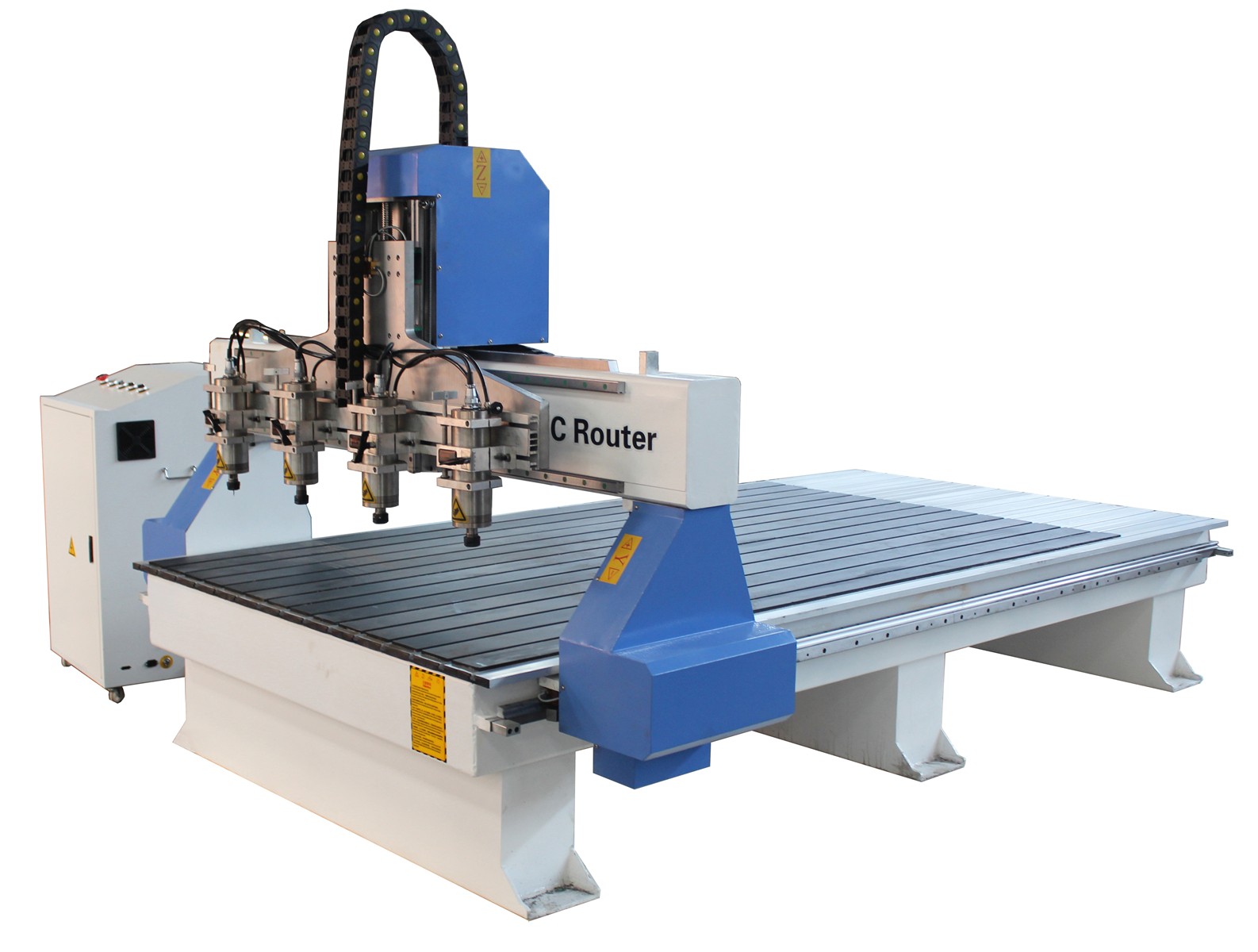

Model |
RF-1325-4 |
|
Structure |
welded with big steel tube |
|
No.of spindle |
4 spindle heads |
|
X, Y axis travelling area |
325mm(single head)*4-1800mm |
|
Z axis travelling area |
200mm |
|
Machine size |
1800*2080mm |
|
X-Y-Z movement |
High precision ball screw drive/Gemany |
|
Guide |
Linear square/Taiwan |
|
Max.speed |
20m/min |
|
Max.working speed |
15m/min |
|
Working precision |
0.02mm |
|
Repositioning accuracy |
0.025mm |
|
Engraving command |
G code * u00* mmg* plt |
|
Software environment |
windows98/2000/xp |
|
Working voltage |
AC220V/50-60Hz, 2-phase |
|
Main spindle power |
1.5kw*4 water-cooled motor |
|
Main spindle speed |
0-24000rpm |
|
Driver motor |
Stepper motor |
|
Software |
Type 3, Artcut , Artcam software |
|
Control system |
DSP offline control system |
|
Collet |
ER20-12.7mm,6mm,3.175mm |
