| Type: | Other Type |
|---|---|
| Seals Type: | sealed both sides |
| Outside Diameter: | 55-210 mm |
| Bore Size: | 9-52 mm |
| Brand Name: | RIGBRS |
| Type: | crossed roller bearing |
| Place of Origin: | China (Mainland) |
| Precision Rating: | P5/P4 |
| Model Number: | Harmonic Reducer Bearing CSF-XRB Series |
| Structure: | crossed roller bearing split outer ring |
| Material: | GCr15 |
Quick Details
Specifications

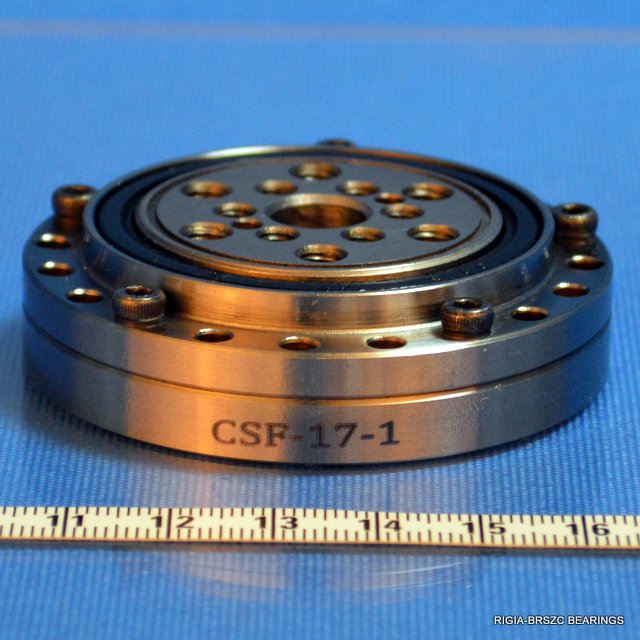

CSF-17 Harmonic speed reducer gear units bearing
Structrue: crossed roller bearings, split outer ring with integrated inner ring.
Size:10*62*16.5mm
Application: CSF17-2UH drive units
BRS Harmonic Reducer Bearing CSF-XRB Series
Harmonic reducer bearing is widely used in industrial automation and robotic arm because of its high precision, high rigidity and high transmission ratio. BRS HD series crossed roller bearing CSF-XRB is specially designed for CSF harmonic reducer. both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.
CSF series crossed roller bearing specifications
CSF14-XRB-9*55*16.5mm
CSF17-XRB-10*62*16.5mm
CSF20-XRB-14*70*16.5mm
CSF25-XRB-20*85*18.5mm
CSF32-XRB-26*112*22.5mm
CSF40-XRB-32*126*24mm
CSF50-XRB-32/40*157*31mm
CSF65-XRB-44/52*210*39mm
Luoyang BRS Bearing Co.,Ltd specialized in producing Harmonic Reducer Crossed Roller Bearing CSF-XRB Series. to learn CSF-XRB series' price, detailed parameters, usage and installation, maintanence or other infomation please contact us.
