Equipment features:

High speed DSP offline control system with colorful TFT screen displaying and USB interface.2MHZ data transfer and designing display on TFT screen.

Dynamic display the working process during machine cutting work.

Can change the parameter on TFT panel.

Special follow up laser cutting head for both metal and nonmetal materials cutting.

USA imported focus lens.

Industry heavy duty machine body to ensure machine stable and high precision

Whole set imported guide rails and ball screw from Taiwan.

Hybrid servo motor with driver more powerful and accurate.

Whole laser cutting system review





Application industries:

Specially used for advertising,decorate,home,lighting,die-cutting,light box,packaging industries;



Application materials:

suitable for carbon steel,stainless steel,galvanized sheet,solid wood,multi-players board,PVC,acrylic,plexiglass,rubber,resin,MDF etc.



Technical parameter:

Model: RF-1325-CO2-150W

Machine body: welded heavy duty machine body

drive mechanism: ball screw drive on xyz axis

Laser power:150W reci tube

Cutting thickness:

carbon steel 1.5mm,stainless steel 1.2mm,nonmetal materials 20mm.

Position accuracy:±0.01mm

Working environment:0-30 degree

Support format:PLT,BMP,DXF,DST,DWG,HPGL etc.

Compatible software:COREL-DRAW,PHOTOSHOP,AUTOCAD.

Working voltage: AC220V   50/60HZ.

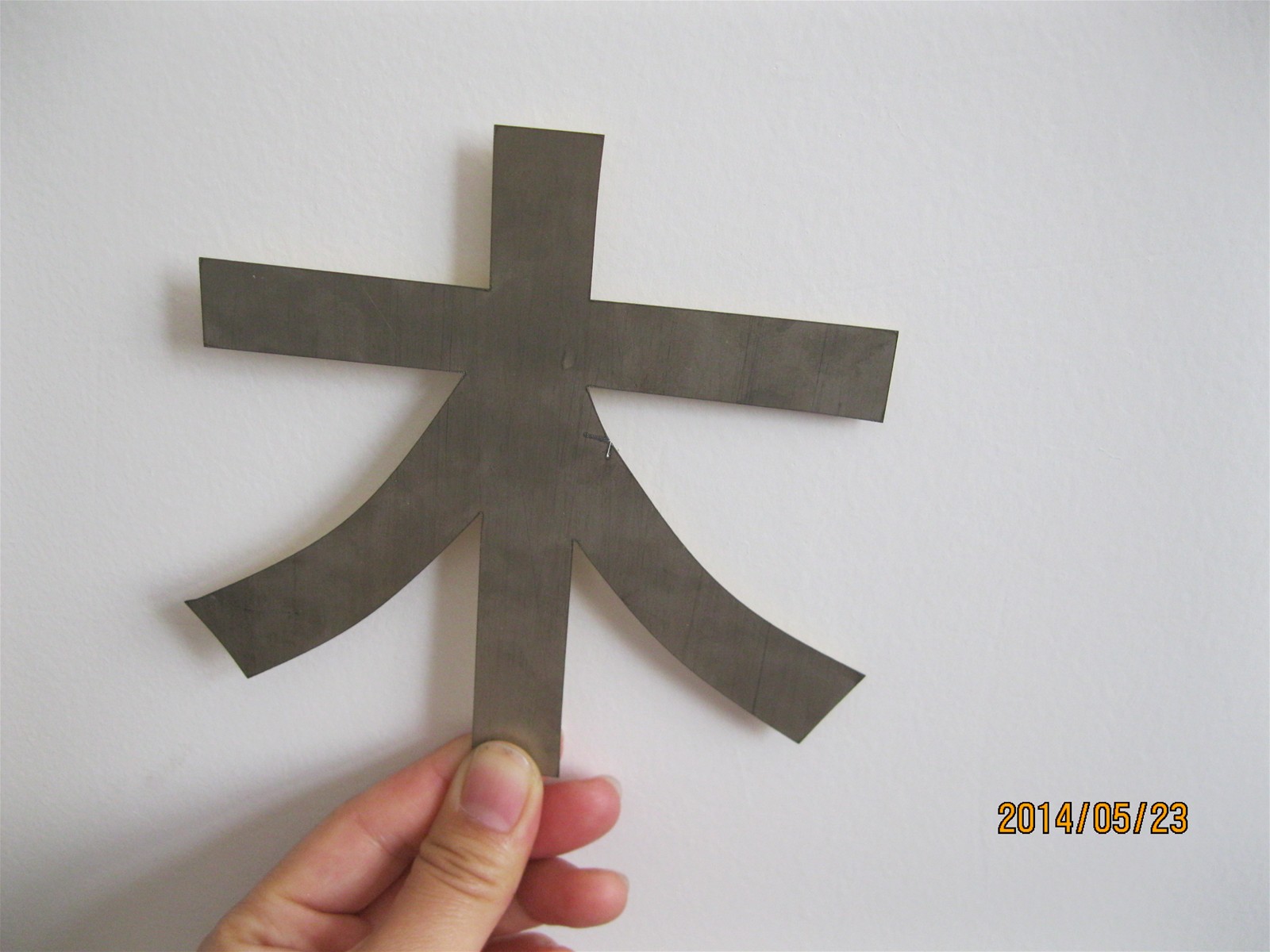

CUTTING SAMPLES:
