| Connection: | Male |
|---|---|
| Brand Name: | driflex |
| Type: | Coupling |
| Technics: | Casting |
| Material: | Stainless Steel |
| Head Code: | Hexagon |
| Shape: | Equal |
| Place of Origin: | China (Mainland) |
| Place of Origin: | China (Mainland) |
| Brand Name: | driflex |
| Model Number: | LTCM-S33 |
Quick Details
Specifications
Description:

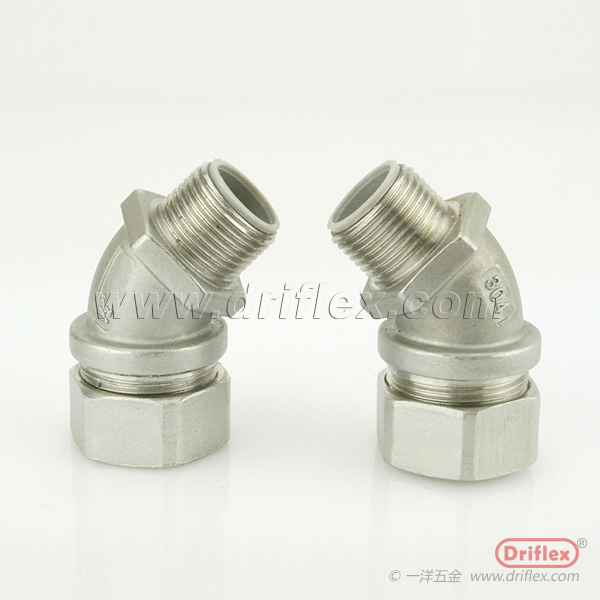

Stainless Steel Conduit Fittings/45d Angle
Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.
Material:
- Connector body - Galvanized die casting, zinc plated steel& malleable iron, nickel plated brass, stainless steel.
- Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron, nickel plated brass, stainless steel.
- Sealing ring - Nylon 66
- Ferrule - Galvanized steel or stainless Steel.
Features:
- Simple, one piece installation provides a quick and reliable liquid-tight seal
- IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
- High mechanical strength
- Highly liquid-tight and dustproof
- Vibration and tensionproof
- Inherently low fire hazard
- Covering of the conduit ends
- Available in straight, 45oand 90oBodies
- Available in ISO Metric and NPT, PF, PG, BSP etc. Threads
Applications:
- General indutrial and commerical electrical wiring protection
- Machining centres and robotics
- Any narrow space in static applications
- General wiring for OEM applications
- Low fire hazard applications
- Underflooring wiring in office buildings
- Machine tools
- Installations where liquid-tight is a requirement
- Outdoor installation
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
| Part No | ISO Thread (mm) | Part No | NPT Thread (inches) | I.D. (mm) | O.D (mm) | Box (pcs) |
|---|---|---|---|---|---|---|
| LTCM-S309 | 16 | LTC-S309 | 5/16" | 11.0 | 15.7 | 25 |
| LTCM-S30 | 16/20 | LTC-S30 | 3/8" | 11.0 | 19.7 | 25 |
| LTCM-S31 | 20 | LTC-S31 | 1/2" | 14.5 | 19.7 | 25 |
| LTCM-S32 | 25 | LTC-S32 | 3/4" | 19.5 | 24.7 | 25 |
| LTCM-S33 | 32 | LTC-S33 | 1" | 25.0 | 31.7 | 15 |
| LTCM-S34 | 40 | LTC-S34 | 1-1/4" | 33.5 | 39.7 | 6 |
| LTCM-S35 | 50 | LTC-S35 | 1-1/2" | 38.0 | 49.7 | 6 |
| LTCM-S36 | 63 | LTC-S36 | 2" | 49.5 | 62.7 | 4 |
Suitable flexible conduits:
- VJ type of vacuum jacketed flexible conduit
- LT type of liquid-tight flexible conduit
- FM type of flexible metallic conduit
