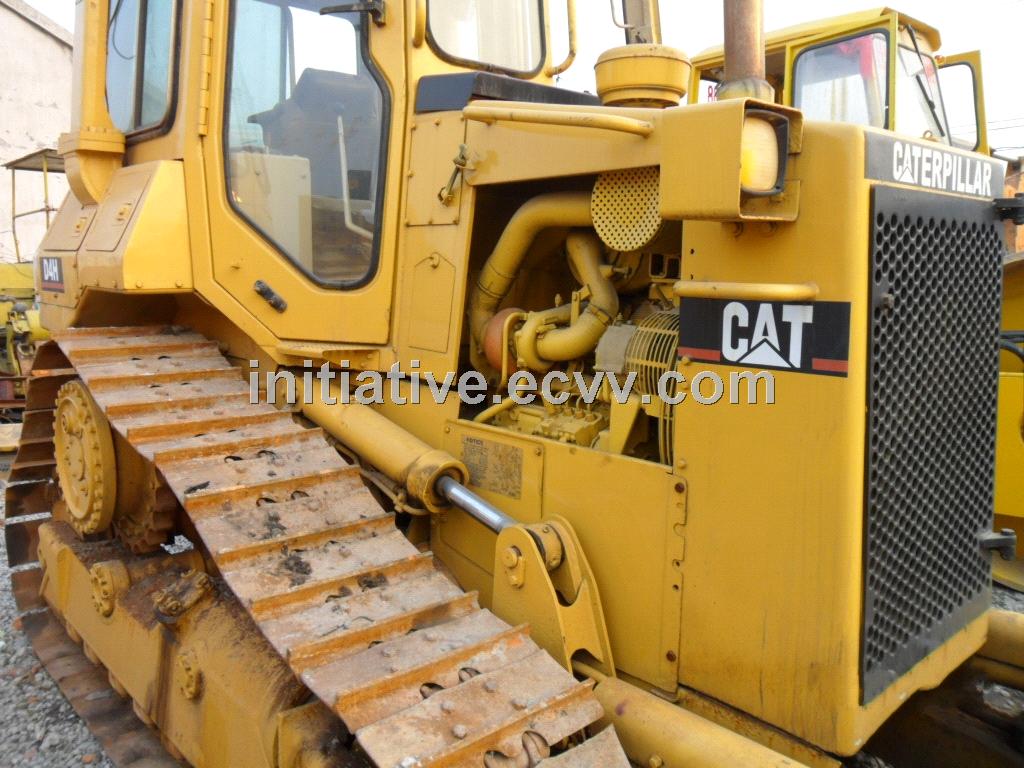

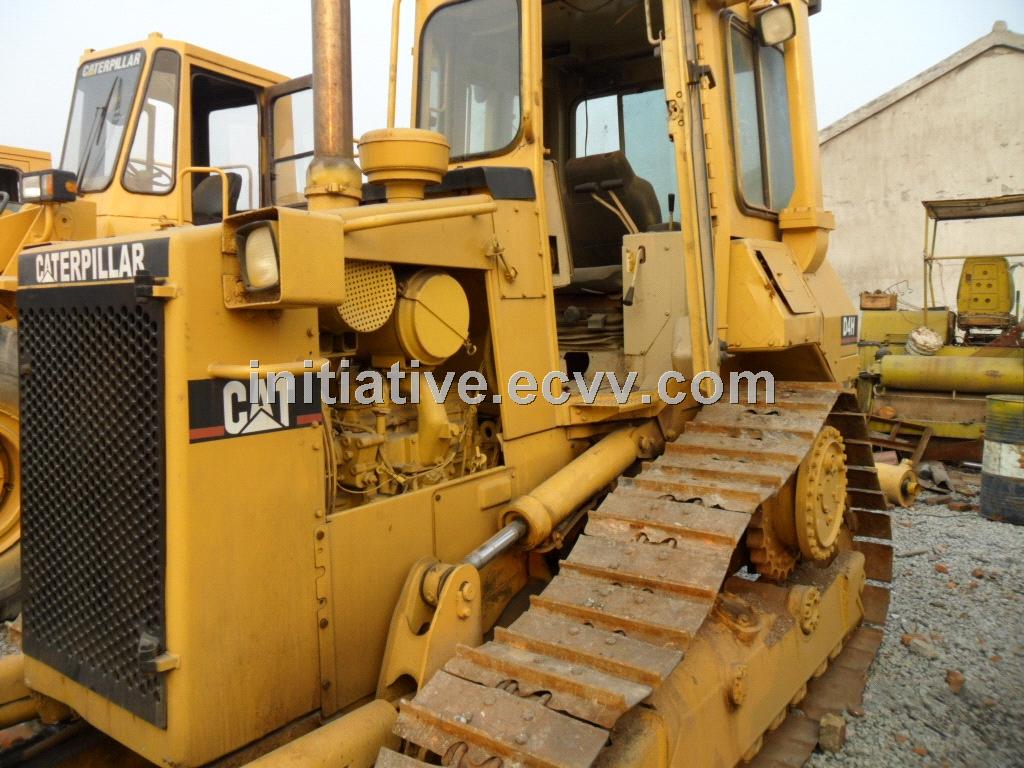

Used Bulldozer Caterpillar D4H; Used Crawler Caterpillar Bulldozer

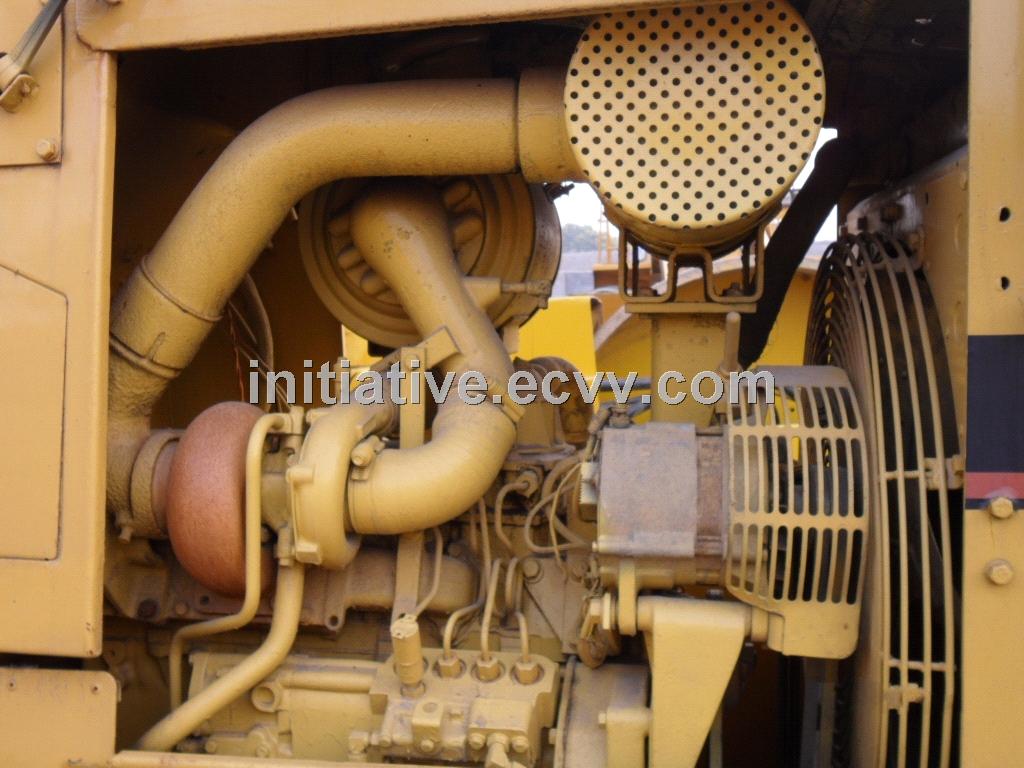

Engine
Make                                   Caterpillar
Model                                  3204
Gross Power                            73.8 kw
Net Power                              70.8 kw
Power Measured @                       2200 rpm
Displacement                           5.2 L
Number of Cylinders                    4
Aspiration turbocharged
Operational
Operating Weight                       10250 kg
Fuel Capacity                          167 L
Cooling System Fluid Capacity          27 L
Engine Oil Capacity                    15 L
Hydraulic Fluid Capacity               67.3 L
Final Drives Fluid Capacity            6 L
Operating Voltage  V

Transmission
Type planetary power shift
Number of Forward Gears                 3
Number of Reverse Gears                 3
Max Speed - Forward                     10.2 km/h
Max Speed - Reverse                     12.2 km/h
Undercarriage
Ground Pressure                         49.2 kPa
Ground Contact Area                     2 m2
Standard Shoe Size                      460 mm
Number of Shoes per Side                39
Number of Track Rollers per Side        7
Track Gauge                             1680 mm
Hydraulic System
Pump type Variable-displacement piston pump senses implement load
Relief Valve Pressure                  18615.8 kPa
Pump Flow Capacity                     94.6 L/min
Standard Blade
Width                                  2584 mm
Height                                 965 mm
Capacity                               1.9 m3
Cutting Depth                          414 mmDimensions
Length w/o Blade                       3420 mm
Length w/ Blade                        4260 mm
Width Over Tracks                      2130 mm
Height to Top of Cab                   2986 mm
Length of Track on Ground              2230 mm
Ground Clearance                       376 mm


We also supply the best after-service

1. Once we make a deal we can arrange all for the shipment if you need.

2. We have our own fix team to finish all problems or purchase some

quick-wear parts for you before loading.

3. All photos and data of products revealed here are based on truth of machine.

4. All machineries import by normal way with complete procedures. With very good working condition and competitive price.

If you have any questions you can ask me

Hydraulic pumps,crawler chains,engines and other parts are of good working condition,without any mechanical problems /oil-leaking. Warmly welcome to visit our yard for the inspection of machine at site. You can also get back to me with your detailed inquires,for more question,plz feel free to contact with me. 1>Original parts and good working condition; 2>Low working hours and high working efficiency; 3>Strong working power and stability; 4>Complete accessory and no oil leaking; 5>Competitive price compared to others;

6>Good after-sales service

Hope you contact us if you have interests. Welcome to our yard and we will give you the best price and good service.

If you need more information, please do not hesitate to contact us.

Welcome to visit our factory to choose and check your preferred machine.
