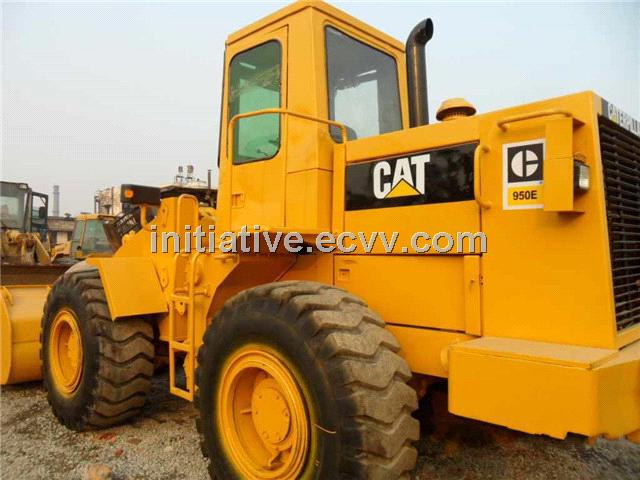

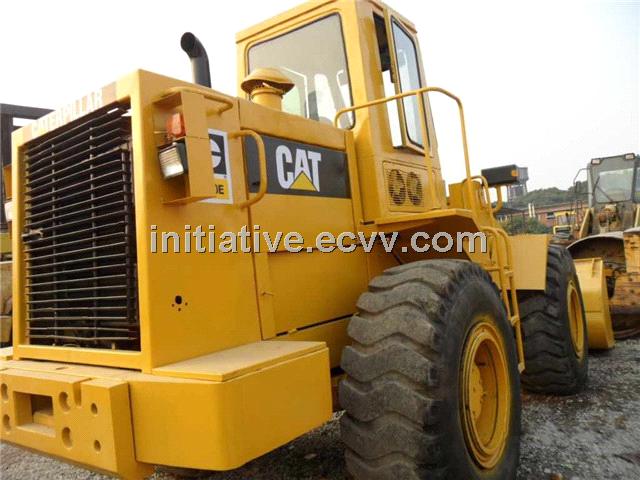

Used Caterpillar Wheel Loader 950E/CAT 950E Wheel Loader ready to work
Selected Dimensions
Bucket
Dump Clearance at Max Raise 9.4 ft in 2852 mm
Dimensions
 Length with Bucket on Ground 24.8 ft in 7548 mm
 Width Over Tires 9 ft in 2750 mm
 Height to Top of Cab 11.5 ft in 3520 mm
Wheelbase 10.4 ft in 3180 mm
Ground Clearance 1.5 ft in 454 mm
Hinge Pin - Max Height 13 ft in 3950 mm
 Reach at Max Lift and Dump 3.8 ft in 1160 mm
Specification

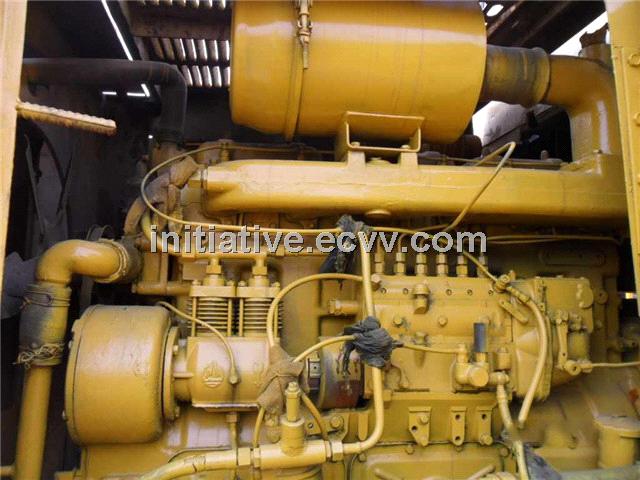

Engine
Make Caterpillar
Model 3304
Gross Power 159.6 hp 119 kw
Displacement 427.2 cu in 7 L
Operational
Operating Weight 34321.6 lb 15568 kg
Fuel Capacity 58.6 gal 222 L
Hydrauilc System Fluid Capacity 40.4 gal 153 L
Static Tipping Weight 22566.5 lb 10236 kg
Turning Radius 22.7 ft in 6918 mm
Tire Size 23.5-25 12PR
Transmission
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed - Forward 22.5 mph 36.2 km/h
Max Speed - Reverse 24.8 mph 39.9 km/h
Hydraulic System
Raise Time 6.6 sec
Dump Time 2.2 sec
Lower Time 3 sec
Bucket
Breakout Force 30150 lb  kN
Dump Clearance at Max Raise 9.4 ft in 2852 mm
Bucket Width 9.1 ft in 2777 mm
Bucket Capacity - heaped 3.8 yd3 2.9 m3
Bucket Capacity - struck 3.3 yd3 2.5 m3
Dimensions
Length with Bucket on Ground 24.8 ft in 7548 mm
Width Over Tires 9 ft in 2750 mm
Height to Top of Cab 11.5 ft in 3520 mm
Ground Clearance 1.5 ft in 454 mm
Wheelbase 10.4 ft in 3180 mm
Hinge Pin - Max Height 13 ft in 3950 mm
Reach at Max Lift and Dump 3.8 ft in 1160 mm
