| Model Number: | VRX932LAP |
|---|---|
| Brand Name: | Skytone |
| Place of Origin: | China (Mainland) |
| Place of Origin: | China (Mainland) |
| Material: | Plywood |
| HF Driver: | 3*22407J(1.5 |
| LF Driver: | 1*2262HPL(12 |
| Sensitivity: | 95dB |
| Net Weight: | 32kg |
| Coverage pattern: | 100*15 nominal |
| Dimension: | 349mm*597mm*444mm |
| Frquency Response: | 75Hz-20KHz |
| Paint: | Environmental polyurea paint |
Quick Details
Specifications
VRX932LAP Amazing Power Line Array Speaker
VRX932LAP overview:
the VRX932LAP is a powered,light-weight,compact 12'' two-way line-array speaker system designed
for useing in arrays of up to five unit. VRX932LAP is the ideal choice when line-array performance is
Needed but the venue size doesn't call for the very long-throw characteristics of large line-arrays and
A fast and easy setup is vital.
Application of VRX932LAP Amazing Power Line Array Speaker:
Large outdoor live concerts performance
MID-size and small venues
Small-scale stage performance
Night club bar
Church
Wedding
Hall, stadium, theater
Professional and sound system hire companies
Other entertainment performance place
Specification of VRX932LAP powered line array:
| Model | VRX932LAP | VRX918SP |
| Frequency Range(-10dB) | 55Hz-20kHz | 30Hz-220Hz |
| Frequency Response(±3dB) | 65Hz-20kHz | 35Hz-220Hz |
| Coverage Pattern | 100*15 nominal | / |
| Maximum Peak Output | 115B SPL at 1m | 120B SPL at 1m |
| LF Driver | 1*2262HPL 305MM (12in) dual voice coil Differential Driver woofer with Nenodymium-magnet |
1*2268HPL 457MM (18in) dual voice coil Differential Driver woofer with Nenodymium-magnet |
| HF Driver | 3*2408H 38mm(1.5in) voice coil Neodymium compression driver |
/ |
| Nominal Impedance | LF:8ohms HF:8ohms | LF:8ohms |
| DPC-2 Intermal Amplification Output (at nominal load) |
1600 Watts Peak, 800 Watts Continuous |
1600 Watts Peak, 800 Watts Continuous |
| DPC-2 Output as (Continuous IEC Shaped pink noise into rated load Impedance) |
LF: 800 Watts,HF: 120Watts | LF: 800 Watts |
| Audio Input Connector | XLR with loop through | XLR with loop through |
| User Controls | Input Attenuator (0-16dB) ACS (Array Configuration Selector) HF level adjustment (+3dB ,0dB,-3dB) |
Best option 90Hz Low Pass 90Hz High-Pass enable/disable for XLR loop thru |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60Hz | 90-132 VAC or 216-264 VAC, 50/60Hz |
| AC Line Voltage | User selectable: 120V/240V (-15%,+10%) | User selectable: 120V/240V (-15%,+10%) |
| AC Input Connecotr | PowerCon (NAC 3MPA) | PowerCon (NAC 3MPA) |
| AC Loop through Connector | PowerCon (NAC 3MPB) | PowerCon (NAC 3MPB) |
| AC Current Requirements | 5A | 5A |
| Enclosure | 25/18mm birch plywood | 18mm birch plywood |
| Finish | Polyurea Finish | Polyurea Finish |
| Grille | Powder coated, black, 16-gauge perforated Steel with acoustically transparent foam |
Powder coated, black, 16-gauge perforated Steel with acoustically transparent foam |
| Dimensions Net | 349mm*597mm*444mm | 508mm*597mm*749mm |
| Net Weight | 32KG | 51kg |
VRX932LAP outdoor speaker Advantages:
1.ABS plastic horn, made by moudle.
2.Birch plywood cabinet:25mm side, 18mm other parts, 13-ply birch plywood.
4.1PCS 2262HPL 12inch neodymium magnet:Different Drive. Neodymium magnet. Dual voice coil. Imported paper cone. Aluminum frame. 150degrees heat-resistant.
6.DSP power amplifier
7.+/-3dB adjustable
8.Metal pole support.Strong enough for support 2pcs VRX932LA speakers.

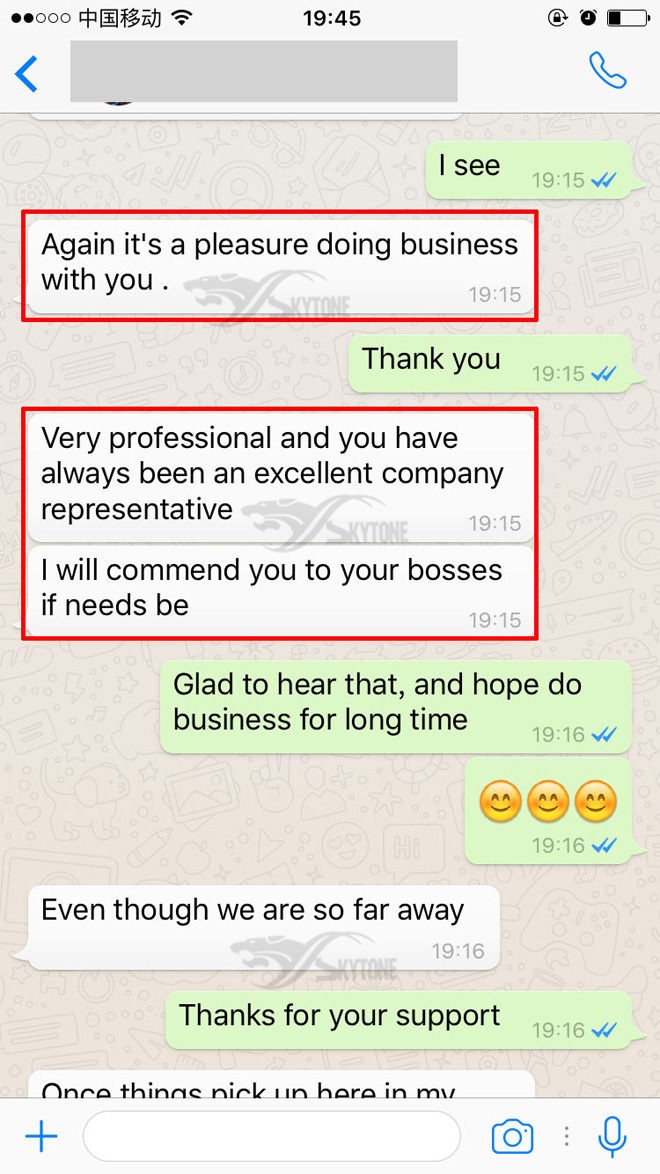

Customer's good feedback of our service:
Our advantages:
Experienced staff answer all your questions with fluent English.
Specialized in speakers over 12 years in China.
Quality is the soul of our enterprise.
We think our products will give you an edge over your competitors.
Hope fully to become yours trustworthy company in China.
Welcome OEM and ODM.
If you have any question about VRX932LAP Amazing Power Line Array Speaker ,feel free to contact us.
