| Processing Type: | Foaming Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Brand Name: | JS |
| Condition: | New |
| Processing Type: | CNC |
| Warranty: | 12 months |
| Place of Origin: | China (Mainland) |
| Product Type: | |
| already sold or not: | yes |
| buyer from: | India |
Quick Details
Specifications

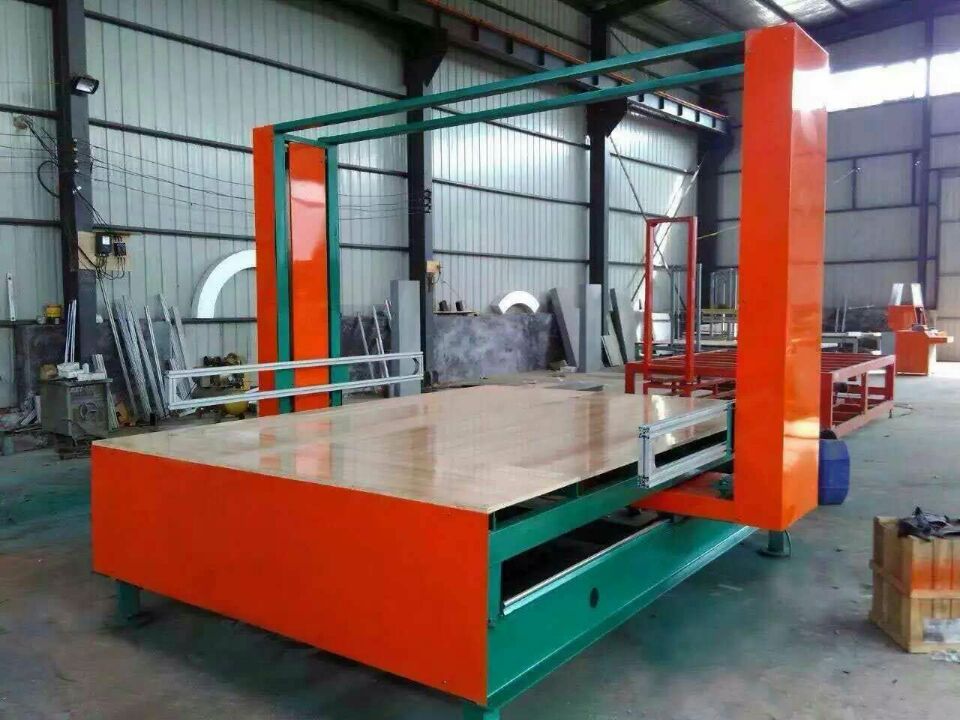

1 :the mechanical parts of the machine made of rectangular iron pipe and sliding part adopted linear sliding module for motion stability & high precision.
2.Machine adopts stepper motor with smooth movement and free speed-regulation, suitable for constantly shifting in special shape cutting.
3.Horizontal hanging cutting wire.20 heating wires can be installed and 20 same pattern and word can be cut at the same time.
4.the machine control system adopts PC + touch screen or PC+computer control.It can use draw various graphics by using CAD/CAM on the computer, direct cutting also cutting by file LED into touch screen.
5.the machine has a process protection Function, also has outage memory,backlash compensation etc.
Item |
Unit |
Numerical Control EPS Foam Cutting Machine |
Cutting Size |
mm |
3000*2000 *(1250-2000) |
Hot Wire Diameter |
mm |
0.4GN |
Stepping Motor Torque |
N.M |
6.8 |
Install Power |
KW |
2.25 |
Cutting Speed |
m/min |
0-2000 |
Hot Wire Operating Number At the Same Time |
piece |
1-20 |
Transformer Capacity |
KVA |
3 |
Input Voltage |
v |
380 |
Output Voltage |
v |
40-60 |
Overall Dimension |
mm |
3000*2600*2400 |
Total Weight |
Kg |
1200 |
