| Condition: | New |
|---|---|
| Place of Origin: | China (Mainland) |
| Brand Name: | CHERY |
| Model Number: | FD35 diesel forklift |
| Type: | Powered Pallet Truck |
| Power Souce: | Diesel Engine |
| Rated Loading Capacity: | 3.5 ton |
| Max. Lifting Height: | 6 m |
| Min. Lifting Height: | 145mm |
| Fork Length: | 1070mm |
| Fork Width: | 125mm |
| Overall Dimensions: | 2700*1230*2095mm |
| Certification: | CE, EPA, GHOST |
| After-sales Service Provided: | Overseas third-party support available |
| Load center: | 500mm |
| Min. ground clearance: | 120mm |
| Max. travelling speed (full load): | 20km/h |
| Max. lifting speed: | 470/450 m/s |
| Wheel base: | 1700mm |
| Curb weight (without load): | 4850kg |
| Rated power: | 39/2500 kw/rpm |
| Displacement: | 2.98L |
| Fuel Tank Volume: | 70L |
Quick Details
Specifications
Rated Load | kg | 3500 | ||
Load Center | mm | 500 | ||
Lifting Height | mm | 3000 | ||
Free Lifting Height | mm | 145 | ||
Minimum Turning Radius | mm | 2430 | ||
Minimum Right Angle Channel Width | mm | 2235 | ||
Minimum Ground Clearance | mm | 120 | ||
Overhead Guard Height | mm | 2090 | ||
Front Overhang | mm | 475 | ||
Max.Lifting Speed | Full load | mm/s | 410 | |
Max. Traction | Full load | KW | 18 | |
Max. Climbing Ability | % | 20 | ||
Overall Length | Without Fork | mm | 2725 | |
Overall Width | mm | 1230 | ||
Max. Fork Lifting height (With Load Backrest) | mm | 4265 | ||
Mast Height | mm | 2095 | ||
Wheel Base | mm | 1700 | ||
Fuel Tank Volume | L | 70 | ||
Working Pressure | Mpa | 17.5 | ||
Economy & Green
Professional Designed
Safe& Efficient
FD35 Diesel Forklift shipment:
Below 3 tons, the standard 20 foot container can hold 4 units;
Between 3 to 3.5 tons, Containers that can hold 3 units.

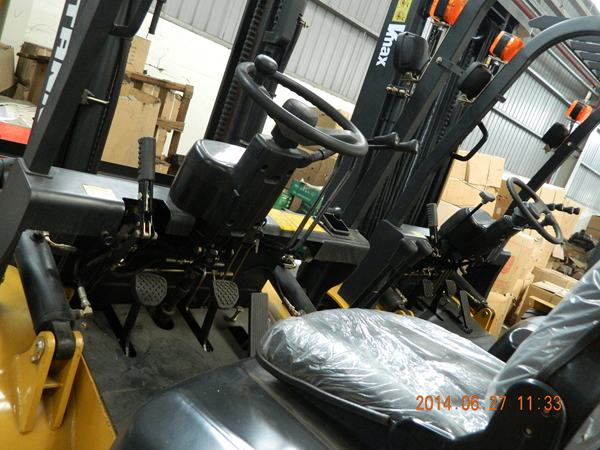

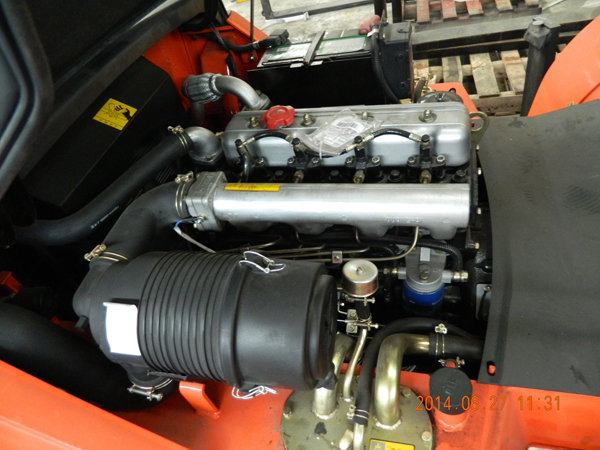

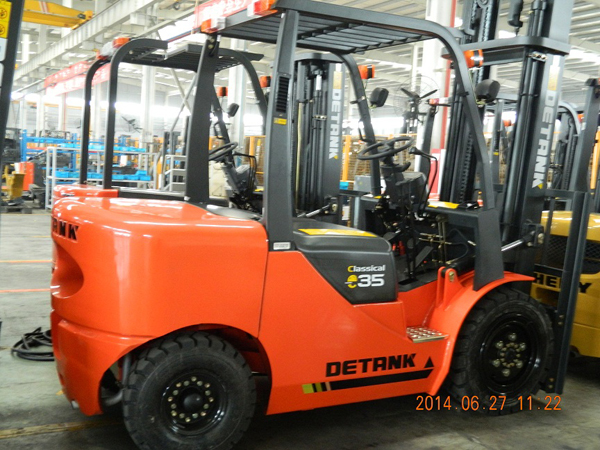

FD35 Diesel Forklift pictures:
