| Place of Origin: | China (Mainland) |
|---|---|
| Brand Name: | Chery detank |
| Model Number: | DE150 excavator |
| Condition: | New |
| Moving Type: | Crawler Excavator |
| Operating Weight: | 14300kg |
| Bucket capacity: | 0.6M3 |
| Maximum Digging Height: | 8601mm |
| Maximum Digging Depth: | 5525mm |
| Machine Weight: | 14300kg |
| Max Digging Radius: | 8313mm |
| Rated Speed: | 2.7/5.5kw/rmp |
| Certification: | CE, EPA, GHOST |
| After-sales Service Provided: | Overseas third-party support available |
| Max. flow: | 132.7*2 L/min |
| Grade Ability: | 70% |
| Contact Area Pressure Ratio: | 38.3KPa |
| Hydraulic Pressure: | 31.4MPa |
| L*W*H: | 7669*2490*2834mm |
| Crawler Length: | 3582mm |
| Track Shoe Width: | 500mm |
| Max. Dump Clearance: | 6156mm |
| Fuel Tank: | 250L |
Quick Details
Specifications

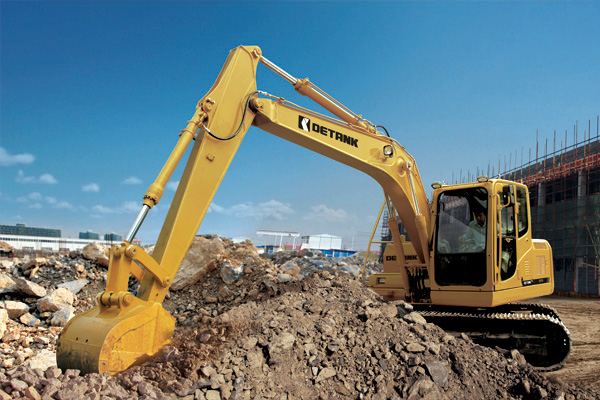

15 ton crawler excavator with cummins engine
Main features:
| Model | DE150 | ||
| Operating Weight | Kg | 14300 | |
| Bucket Capacity | M3 | 0.6 | |
| Engine | Model | / | 4B3.9-C115 |
| Power/Rated Speed | KW/rpm | 85.4/2200 | |
| Hydraulic Pump | Model | / | T5V63DP |
| Max. flow | L/min | 132.7×2 | |
| Capability | Bucket Digging Force | KN | 93 |
| Bucket Arm Digging Force | KN | 60 | |
| Travel Speed (lower/higher) | km/h | 2.7/5.5 | |
| Swing Speed | r/min | 11 | |
| Grade ability | % | 70 | |
| Contact Area Pressure Ratio | KPa | 38.3 | |
| Hydraulic Pressure | MPa | 31.4 | |
| Transport Dimension | L*W*H | mm | 7669*2490*2834 |
| Min. Ground Clearance | mm | 410 | |
| Crawler Length | mm | 3582 | |
| Track Shoe Width | mm | 500 | |
| Working Range | Max. Digging Height | mm | 8601 |
| Max. Digging Depth | mm | 5525 | |
| Max. Digging Reach | mm | 8313 | |
| Max. Dump Clearance | mm | 6156 | |
| Fuel Tank | L | 250 | |
Pictures:
