| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE,ISO,FDA |
| Model Number: | DW1218 |
| Brand Name: | DWIN |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | leetro or rdcam |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-10000mm/min |
| Cutting Area: | 1200*1800mm |
| Cutting Thickness: | based on materials |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
| keyword: | 100W laser cutting machine |
| model: | DW1218 |
Quick Details
Specifications

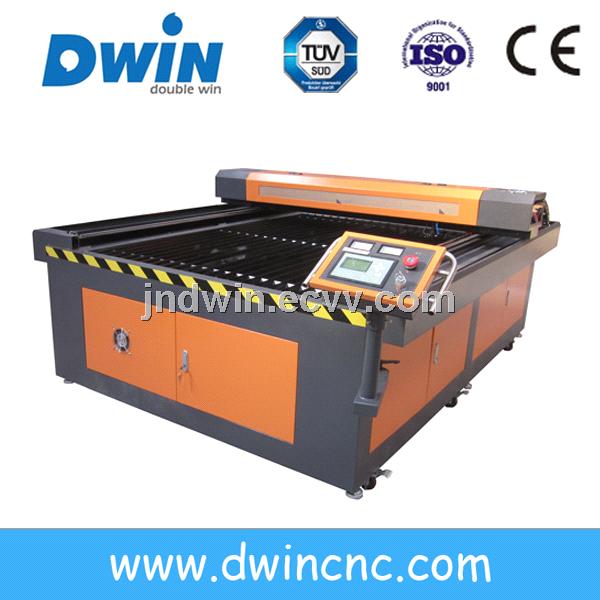

DW1218 RECI 100W laser cutting machine
Features:
Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision, less waste, high efficiency,Optional double laser heads cutting machine so that the exponential growth efficiency
Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.
Operational speed, laser energy real-time tunable, and very easy for customers to operate
Cutting energy automatic compensation function, cutting greatly improved results
DW1218 is mainly for cuting, the new design can avoid the laser power lose as the tube is move together with the beam
Specifications:
Model |
DW1218 |
Working area |
120cm*180cm /47 in*71in (W*L) |
Laser power |
100W/130W/150w |
Laser type |
CO2 sealed laser tube,water-cooled |
Engraving speed |
0-60000mm/min |
Cutting speed |
50-10000mm/min |
Power supply |
220V±10% /50HZ, 110V±10%//60HZ |
Graphic format supported |
BMP, PLT, DST, DXF, AI,CDR |
Software supported |
CorelDraw, PhotoShop, AutoCAD |
Laser Output Control |
1-100% software setting |
Highest Scanning Precision |
2500DPI |
Resolution ratio |
<0.01mm |
Location precision |
<0.01mm |
Working temperature |
540 |
Operating humidity |
5%-95%(without condensed water) |
Equipment Dimension |
318cm*200cm*112cm/125in*79in*44in |
Gross weight |
860KG |
Accessories: Nessary Attachment like: water cooling,exhaust fans, air compressor. Software, English friendly user manual, data cable and other free parts
Applicable materials: Non-metal materials,such as double color board, plexiglass, glass,bamboo,and wood,rubber.Marble,granite,tiles,leathers,etc
Standard Accessories with machine
Rotary deviceAuto up and down tableindustry chillerred point dotauto focusDSP off-line operation with USB flash
