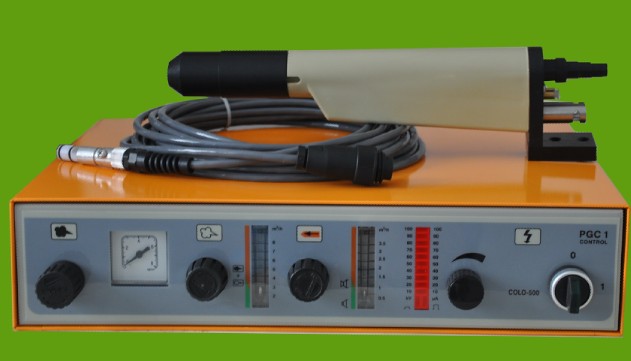

Manual Electrostatic Powder coating spray gun

PG2A spray gun with PG2A controller
Could Installed into a cabinet

Automatic Powder coating spray gun



compatiable with PG2A spray gun and PGC1 controller.

Electrical data
Mains input voltage	100-240 VAC
Operating frequency	50-60 Hz
Input power	50W
Nominal output voltage (to the gun)	max. 12 V
Nominal output current (to the gun)	max. 1 A
	IP54
Ambient temperature range	0°C - +40°C (+32°F - +104°F)
Max. operating temperature	85°C (+185°F)
Approvals	CE
Pneumatical data
Compressed air connection	1/4" male quick release
Max. input pressure	10 bar / 145 psi
Min. input pressure (while unit in operation)	6 bar / 87 psi
Max. water vapor content of the compressed	air 1.3 g/m3
Max. oil vapor content of the compressed air	0.1 mg/m3



 related equipments could be order together.



Automatic Reciprocator (reciprocating machine) (Work with Electrostatic Powder Coating Gun) With several electrostatic powder coating gun on the reciprocator Japan Mitsubishi Transducer & PLC controlled Four automatic spray gun rods(qty of the rods can be ordered)

Colour can be ordered.

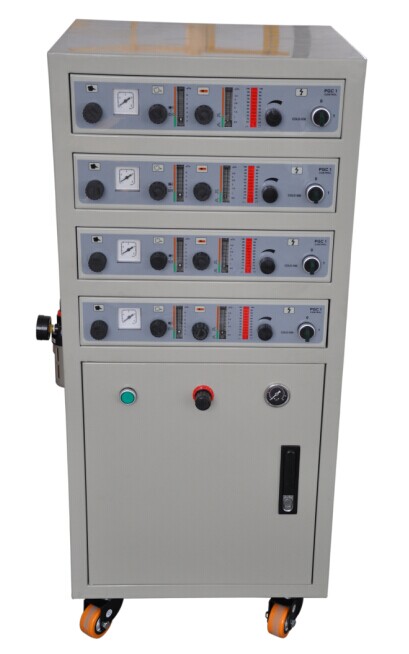

Central automatic spraying control cabinet for 4 ~ 10 sets electrostatic powder coating spray equipments.



The automatic electrostatic powder coating spray equipment is pgc1,other items could order as required.
