CSB-500C fail secure electric bolt is suitable for wooden door, metal door, etc. We supply integrity equipment to collocate with swing-in door.

Built-in Photoelectricity control and low tempreture design makes the access control automation safer and electric bolt more durable.



Advantages:

Photoelectricity Controling, no mechanical defect.

Low Temperature, safe & Durable.

Low Power, Environmental Protection.

Long Life with 500,000 Operations.

MOV Provides Reverse Current Protection.

Special photoelectricity control, three steps current application.

Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.

Working with cylinder cannot be copied, do increase security.

The humanized design of Led helps to indicate the working status of lock.

The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.

With complete accessories,available for any doors.

Photoelectricity Control,Low Temperature,

  A:The Low Current is Changed immediately;

  B:When door frame doesn't coincide with door leaf, door leaf against the bolt, the electric bolt will start the low-power function to bring low temperature.

  C:Photoelectricity Control Technology prevents machanical defect.



Technical parameters:

Product Parameter	Parameter Description
Fail Secure	unlocked when energized
Face Plate	210Lx25WX42H(mm)
Strike	90Lx25Wx3H(mm)
Bolt	16mmDIA, stainless steel 13mm throw
Voltage	12VDC (24VDC need order)
Start Current	900mA
Standby Current	80mA
Feature	Fail secure
Autolock Time Delay	0,3,6,9 sec
Door statue signal output contact	NO/COM
Cylinder	One side is key, another side is knob
Solid Bolt Holding Force	1000Kg
Suitable For	wooden door, metal door
Surface Temp	Low Temperature
Induction Distance	8mm
Operating temp	-10～+55℃(14~131F)
Operating Humidity	0～90% (non-condensing)
Special Designed	Tested to 500,000 operations
Face place material	304 stainless steel, wire draw finishing
Weight	1.0kg

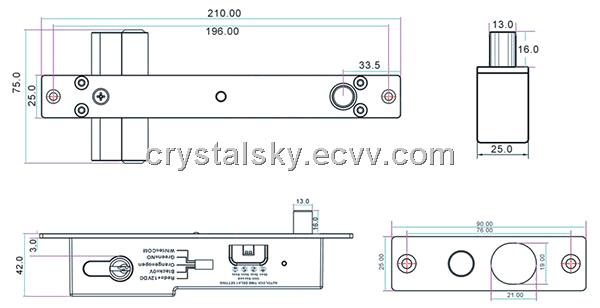

Dimension diagram:

Installation diagram:
