| Place of Origin: | China (Mainland) |
|---|---|
| Brand Name: | |
| Model Number: | ABK-807 |
| Type: | Exit Button |
| Standard Structure: | Stainless steel Panel, Steel Button |
| Output Contact: | NO/COM |
| Dimensions: | 88Lx88Wx20H(mm) |
Quick Details
Specifications
ABK-807 is a Stainless Steel Door Release Button, use with access control system.
Exit button is very common and frequently used in access control systems. It's often used in public authorities, banks, large/small and medium-sized enterprises, department stores and residences, etc. There are some different kinds of exit switch button, such as door release button, infrared sensor exit button, touch control exit switch etc.
Door release button Advantages:
Design with no mechanical failure
Stainless steel Panel with Elegant Style.
500,000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.
Exit Button Technical parameters:
| Product Parameter | Parameter Description |
| Dimensions | 88Lx88Wx20H(mm) |
| Standard Structure | Stainless steel Panel, Steel Button |
| Current Rating | 3A@36VDC Max |
| Output Contact | NO/COM |
| Mechanical Life | 500,000 tested |
| Suitable for Door | Hollow Door |
| Operating temp | 10～+55℃(14-131F) |
| Operating Humidity | 0-95% ( relative humidity) |
| Panel Material | Stainless steel brushed |
| Weight | 0.17kg |

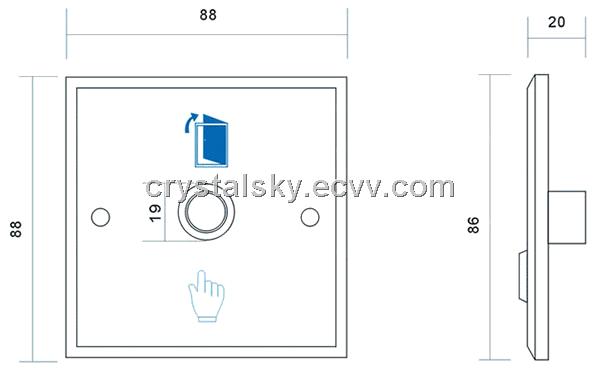

Door release button Dimension diagram:
Exit button Packing:
| Packing Quantity(PCS/CTN) | 70 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 11.9 |
