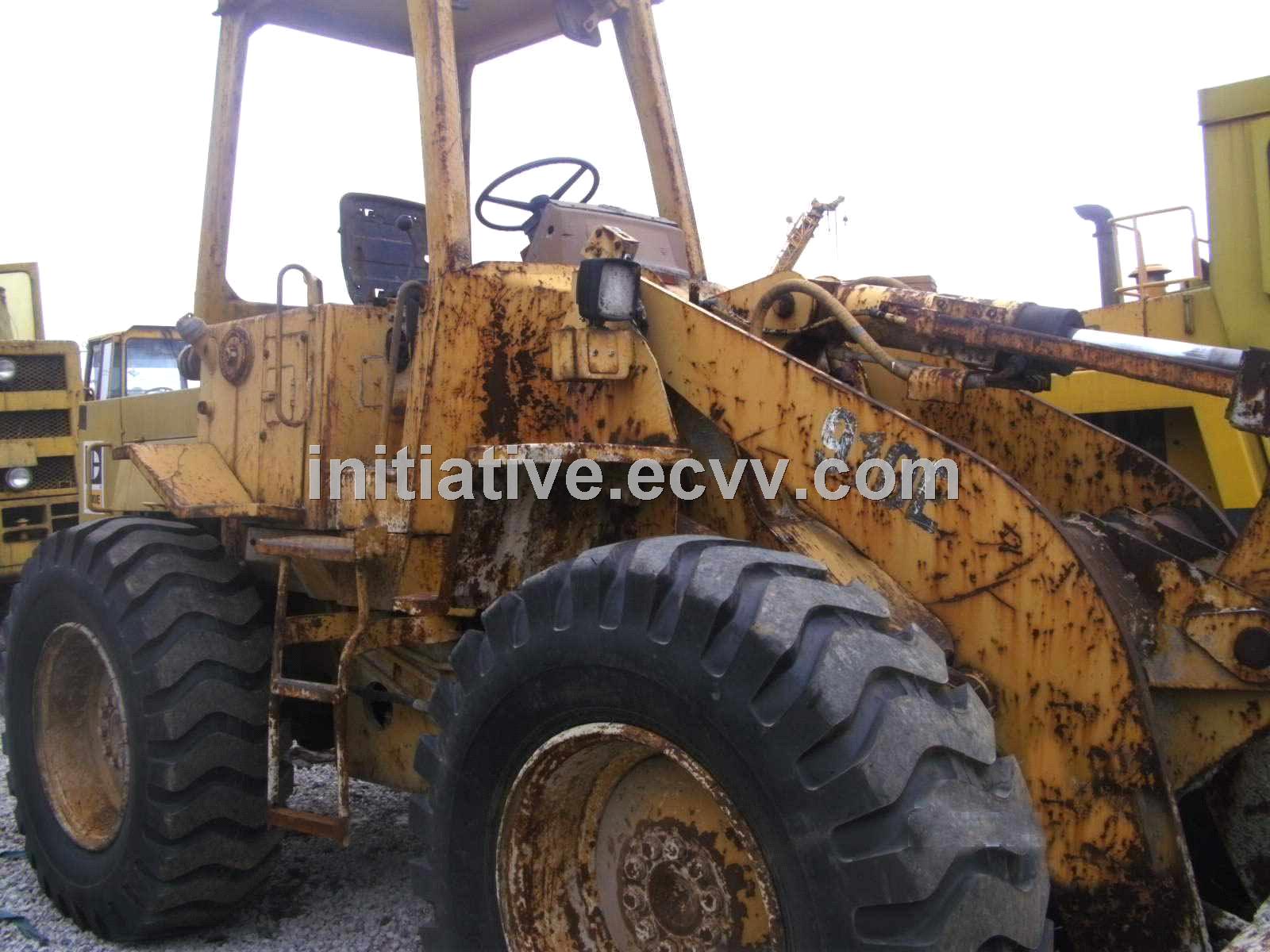

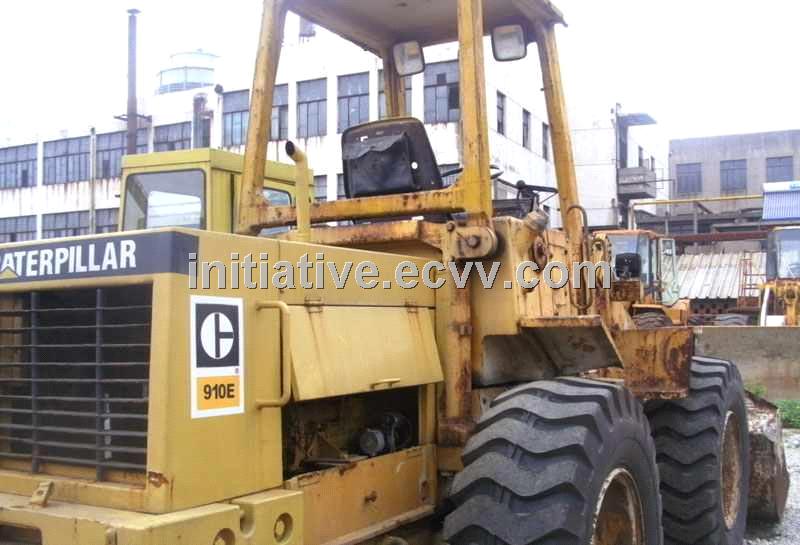

Used wheel loader 910E Caterpillar
Bucket
Dump Clearance at Max Raise 8.5 ft in 2577 mm
Dimensions
Length with Bucket on Ground 19.6 ft in 5970 mm
Width Over Tires 7.1 ft in 2150 mm
Height to Top of Cab 9.8 ft in 2996 mm
Wheelbase 7.7 ft in 2337 mm
Ground Clearance 1.1 ft in 343.4 mm
Hinge Pin - Max Height 11 ft in 3350 mm
Reach at Max Lift and Dump 3.3 ft in 1006 mm
Specification
Engine
Make Caterpillar
Model 3114
Net Power 75 hp 55.9 kw
Gross Power 81 hp 60.4 kw
Power Measured @ 2400 rpm
Displacement 268.5 cu in 4.4 L
Number of Cylinders 4
Aspiration turbocharged
Operational
Operating Weight 15979.1 lb 7248 kg
Fuel Capacity 25.6 gal 97 L
Hydrauilc System Fluid Capacity 18.5 gal 70 L
Engine Oil Fluid Capacity 2.9 gal 11 L
Cooling System Fluid Capacity 7.9 gal 30 L
Transmission Fluid Capacity 6.1 gal 23 L
Front Axle/Diff Fluid Capacity 4.8 gal 18 L
Rear Axle/Diff Fluid Capacity 4.8 gal 18 L
Static Tipping Weight 10491.8 lb 4759 kg
Turning Radius 15.8 ft in 4811.5 mm
Operating Voltage 24 V
Alternator Supplied Amperage 55 amps
Rear Axle Oscillation 22 degrees
Tire Size 15.5x25 8 PR(L-2)
Transmission
Type powershift
Number of Forward Gears 4
Number of Reverse Gears 3
Max Speed - Forward 22.4 mph 36 km/h
Max Speed - Reverse 14.9 mph 24 km/h
Hydraulic System
Relief Valve Pressure 2204 psi 15196 kPa
Pump Flow Capacity 29.6 gal/min 112 L/min
Raise Time 5.3 sec
Dump Time 1.3 sec
Lower Time 3.2 sec
Bucket
Breakout Force 16626 lb 74 kN
Dump Clearance at Max Raise 8.5 ft in 2577 mm
Bucket Width 7.6 ft in 2320 mm
Bucket Capacity - heaped 1.3 yd3 1 m3
Bucket Capacity - struck 1.1 yd3 0.84 m3
Dimensions
Length with Bucket on Ground 19.6 ft in 5970 mm
Width Over Tires 7.1 ft in 2150 mm
Height to Top of Cab 9.8 ft in 2996 mm
Ground Clearance 1.1 ft in 343.4 mm
Wheelbase 7.7 ft in 2337 mm
Hinge Pin - Max Height 11 ft in 3350 mm
Reach at Max Lift and Dump 3.3 ft in 1006 mm




We also have many other machines in stock, pls have a general look as follows.

1.Excavator

Hitachi: EX100, EX100WD, EX120, EX200, EX200LC, EX220, ZX55, ZX70, ZX75 ZX120, ZX150, ZX200

Caterpillar:70, 120, 305, 306, 307, 312, 320, 330, 324, 325, 345 (From Model B to Model D) Komatsu: PC35, PC45, PC50, PC55, PC56, PC58, PC60, PC120, PC130, PC200, PC210, PC220

Kobelco: SK60, SK100, SK120, SK200, SK210, SK250-8

Daewoo: DH55, 60, 130, 150, 220, 225

Hyundai: 60W, 130w, 150w, 200, 210, 220

Volvo: EC210, 240, 290, 360, 460. , etc.

2.Wheel Loader

Caterpillar:916, 924, 928, 936, 938, 950, 966, 980, 988 (From Model C to Model H)

 Komatsu: WA300, 350, 360, 350, 380, 450, 470, 500

Kawasaki: 70B, 70Z, 80Z, 85Z, 90, 90Z, 95Z , etc.

3.Backhoe Loader

JCB3CX, JCB4CX , etc.

4.Bulldozer

Caterpillar: D5G, D6D, D6H, D6R, D6G, D7H, D7G, D7R, D8K, D8R, D8N, D8L, D9N, D9R, D10N

Komatsu:D65, D85, D155, D375 , etc

5.Truck Crane

KATO:NK200E, NK250E, NK300E, NK350, NK400E, NK500E, NK800E, NK2500E

TADANO: TG250, TL250, TL250E, TL300E, TG300E, TG350E, TG450E, GT550E, TG550E, TG650E, GT650E, TG1000E, TG1200E, TG1200M, TG1600M , etc.

6.Rough terrain Crane

KATO: KR25H, KR45H, KA300, SS500.KR250E, KR450

TADANO: KR250E, KR350E, TR250M, TR300M, AZ300D, AR350, TR450E, TR500M , etc.

7.Crawler Crane

HITACHI:KH700, KH120T, KH125, KH150, KH180

KOBELCO: 50T, 100T, 120T, 300T

SUMITOMO:50T, 100T, 200T , etc.

8.Motor Grader

Caterpillar: 12G, 14G, 120G, 140G, 16G, 140H, 160H, 140K , etc.

9.Road roller

DYNAPAC:CA25, CA30 , etc.

10.Forklift

komatsu, Toyota, TCM, NISSAN, Heli, Hangzhou, Mitsubishi (From 2.5T to 15T), etc.

Any of the items be of interest to you, pls do not hesitate to contact me, we will offer u the best price.

If you need more information, please do not hesitate to contact us. Welcome to visit our factory to choose and check your preferred machine.
