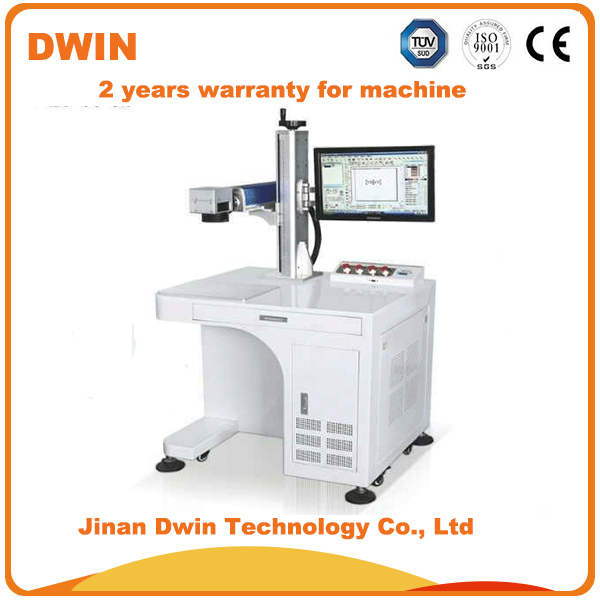

DW-20W Fiber-optic laser marker  +laser marking machine

Brief introduction to the machine



DW-10W Fiber-optic laser marker, very Flexible, which is easily integrate into industrial production processing. It  Can operate laser directly by controling interface (USB), no supplies, and products' depreciation costs are greatly

Reduced.



by comparison,it has performances including high efficiency, long life and maintenance-free and so  No, but the traditional laser does not.



Advantages:



1, high-definition: the resolution is measured by micron; It is two times clearer that traditional machine.



2, Less power consumption: occapy traditional consumption of one and two-fifths to one and ten.



3, high-speed:the speed is three to five times faster than traditional machine.



4, stability: the stability of machine is much better than similar counterpart.



5, long life: its lifespan is ten times longer than traditional machine. 100000hours



Parameters



Average laser output power                   20W(Continuum or Pulse)



Laser wavelength                                   1064nm



Power adjustment range                         10-100%



Repetition frequency                              20-100KHz



Output beam quality                               M2:1.5



Marking Linear deep                              1.2mmMin.



Highlight spot                                         0.005mm



Min. Character size high                          0.15mm



Repetition accuracy                                0.001mm



Max. Linear markingspeed                     9000mm/s



Marking depth                                        0.01mm-0.03mm(according the materials)



Marking format                                      Graphics, character, bar code, two-dimensional code



Software                                                WINXP +ezcad



Standard marking area                           100mm100mm



Marking area option                              50mm50mm  150mm150mm  200mm200mm



Power consumed                                   160W



Electrical demand                                  220V10%/50Hz/4A



Cooling Mode                                       Air-cooled



Control interface                                   USB



Laser module life                                  100000 hours



Laser                                                    Raycus/IPG



Resonance mirror                                  High speed Usage



Application:



Materials:    any metal (including precious metals), engineering plastics, plating, coating materials, spray material, plastic, rubber,  Epoxy resin, ceramic, and other materials.



Industry:      the phone keypad keys translucent plastic, electronic components, integrated circuits (IC), electrical appliances,  Communication products, sanitary ware, tools, accessories, knives, glasses, clocks and                                                    watches, jewellery, automobile  Accessories, bags decorated clasps, cookers, stainless steel products and other industries.



Why do you choose our  laser machine for sale ?



1. Warranty year: 2 year



2. Provide technical provinces to the door



3. Replace all parts for free during warraty period (no human damage)



4. 24 hours technology online support



 Contact me



for more detailed information

I will give you professional advices and support
