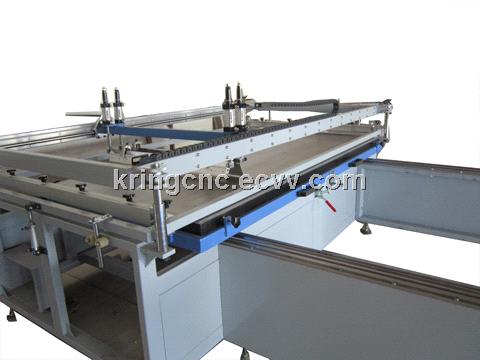

Pneumatic flat screen printing press with guide line KRP120240:

Type:manual flat screen printing press

         pneumatic flat screen printing press for glass

         large pneumatic flat screen printing press

         precision flat silk screen printing press

Application:

Suitable for precise printing on any smooth flat surface of various materials such as metal, plastic, ceramic,glass, wood etc.

Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc.

Feature:

1,The printed panel is made by stainless-steel .Screen is without splicing, high rigidity, smooth surface .

2,Key machine parts are imported .

3,Use electromagnetic air valve ,greatly increase the screen adsorption force , deflation is uniform and quick

4,The printed panel can be adjusted in every direction .Squeegee presure can be contralled ,and Coherent movement synchronization , rational design .

5,Operation is easy and reliable . Accurate positioning. Printed uniform .



Manual flat silk screen printing press specification:

Model	KRP600*800	KRP900*1050	KRP1200*2400
Color printing	Single color printing
Printing face	Flat face
Auto grade	Manual
Max printing area	500*680mm	800*1000mm	1100*2300mm
Worktable size	600*800mm	900*1050mm	1200*2400mm
Max mesh frame	750*980mm	1000*1200mm	1400*2800mm
Voltage/power	220v 50hz 0.37kw	220v 50hz 0.75kw	220v 50hz 2.2kw
Net weight	500kg	750kg	1350kg
Dimension	1400*900*1300mm	1150*1800*1300mm	3000*1800*1400mm
Appliance	Flat surface of materials such as paper,plastic,circuit board,ceramic,glass,non-woven fabric ect

Packing:wooden case of international standard.



Guarantee:the machine guarantee is 12 months .



Delivery date:15 days after receive the deposit.
