Product Main

Quick Details

Place of Origin: China (Mainland)
Brand Name:
Model Number:

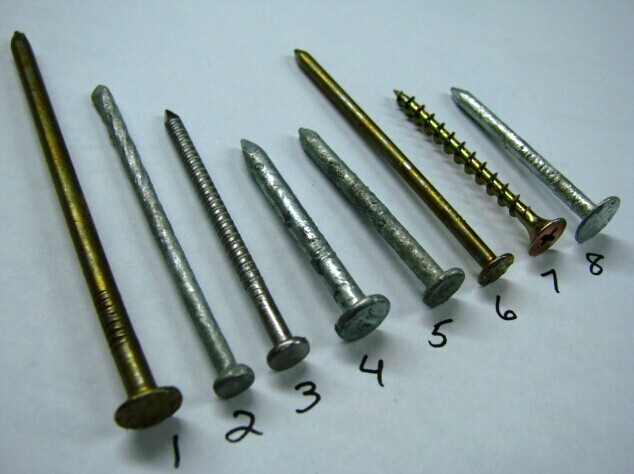

Type: Common Nail
Material: Steel
Length: 1-1/4"(3D)~2-1/2"(8D)
Head Diameter: 9/32"~1/2"
Shank Diameter: Smooth;Barbed;Ring

Specifications

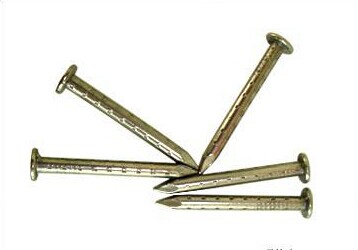

Joist Hanger Nail

Uses: Joist Hanger Nail in our Joist Hanger Nail Factory for attaching joist hangers to wood studs. Short, heavygauge nail provides increased holding power without fully penetrating wood.

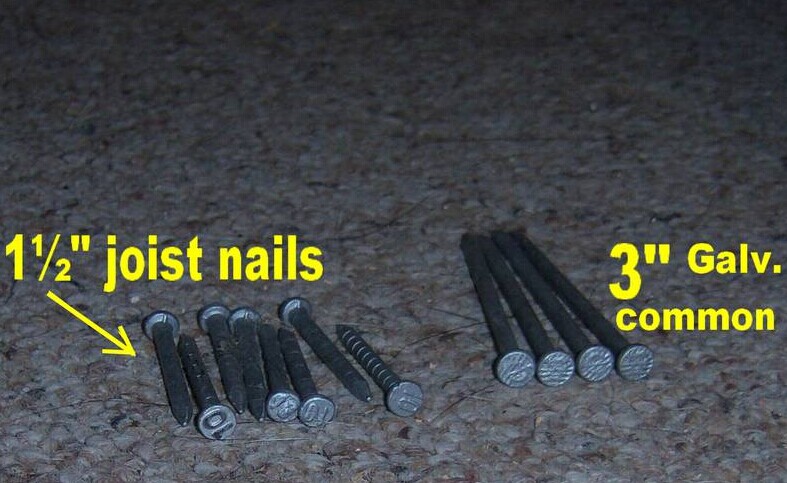

Joist hanger nails
Material: Q195
Length: 1-1/4"1-1/2"
Shank: barbed shank
Finish: E. G,H. D.G, bright

Joist hanger nails

Material: Q195

Length: 1-1/4"1-1/2"

Head diametre: 6.747--7.144mm(17/64"--9/32")

Shank: barbed shank

Head: flat head

Point: diamond point

Finish: E. G,H. D.G, bright

Payment: T/T, L/C

Packing: 25kgs per carton or as customer's requirement

Delivery: 25~30 days

MOQ: 1 ton

Supply ability: 100 tons/month

Usage: for attaching truss plates and hardware when buliding roof trusses and other framing constructions.

Remarks: H. D.G joist hanger nails for use with ACQ lumber.

Bright joist hanger nails

Length Gauge Haed dia. Count per lb.
1-1/4" 11 17/64" 233
1-1/4" 9 9/32" 149
1-1/2" 11 17/64" 200
1-1/2" 10.25 9/32" 120
1-1/2" 9 9/32" 125

H. D.G/E. G joist hanger nails

Length Gauge Haed dia. Count per lb.
1-1/4" 11 17/64" 233
1-1/4" 9 9/32" 149
1-1/2" 11 17/64" 200
1-1/2" 9 9/32" 125
