| Light Source: | |
|---|---|
| Input Voltage(V): | 100-240V 50-60Hz |
| Lamp Power(W): | 330 |
| Lamp Luminous Flux(lm): | |
| Lamp Luminous Efficiency(lm/w): | |
| CRI (Ra>): | |
| Color Temperature(CCT): | |
| Working Temperature(℃): | -20 - 50 |
| Working Lifetime(Hour): | 1500 |
| IP Rating: | IP20 |
| Certification: | CE |
| Emitting Color: | Changeable |
| Base Type: | |
| Place of Origin: | China (Mainland) |
| Brand Name: | WIT |
| Model Number: | WIT-330A |
| Control channel: | 21/23/34 DMX512 |
| Lamp buld: | Orasm 330W/ YODN 350W |
| Type: | superior 15R moving light |
| Color tempreture: | 7500K |
| Control mode: | international standard DMX512,master-slave,auto-run |
| Other function: | remote switch of lamp,display used time of lamp |
| Body material: | high tempreture resistant plastics |
| shell material: | high strength alloy |
| Lens: | anti reflection coating glass lens |
| Application: | stage/party/indoor enents/disco/bar |
| Service time: | 1500hrs |
Quick Details
Specifications

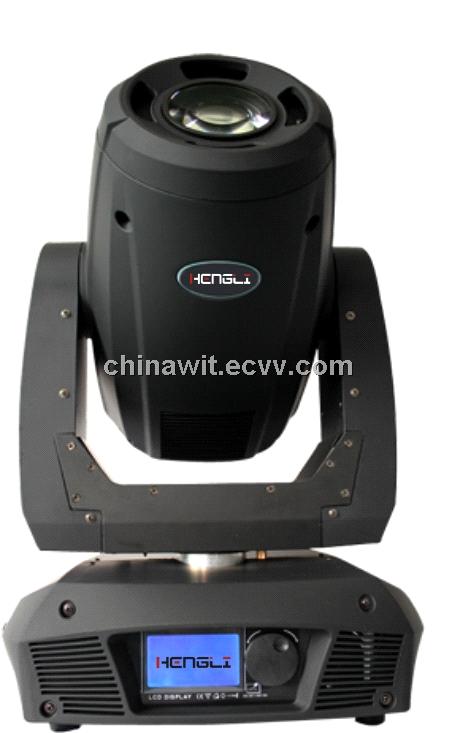

Superior 15R stage beam moving light
Features
- Remote control lamp's switch
- Display used time of lamp
-
Multi control mode and good performance
Dynamic Effects
|
Color wheel: |
6 colors + white,halftone or full color funtion+UV+CMY |
|
Gobo wheel: |
14 statics gobos + 4 white, 8 rotational gobos+white |
|
Prism: |
one 3 facet Prism rotation both side |
|
Lens: |
anti reflection coating glass lens,Lens rotation,with 16 lens marco effect |
|
strobe |
0-13/sec,random strobe |
| irsis: | 5%-100%,with iris effect |
|
Focus: |
linear mechanical focus |
|
Dimmer: |
0-100% linear dimmer |
Control and Programming
- Casting range: Pan:540° ,Tilt:270° , auto correction positioning
- Scanning speed: Pan:3/sec, Tilt:2/sec
- Beam angle:5-7 degree
- Strobe: bi-direction strobe structure, 0.5-9/sec
- DMX channels:21/23/34
- Control mode: 23 international standard DMX512,master-slave,auto-run
Construction
Housing:heat-proof plastic +module pressing alloy materials
Protection rating: IP20

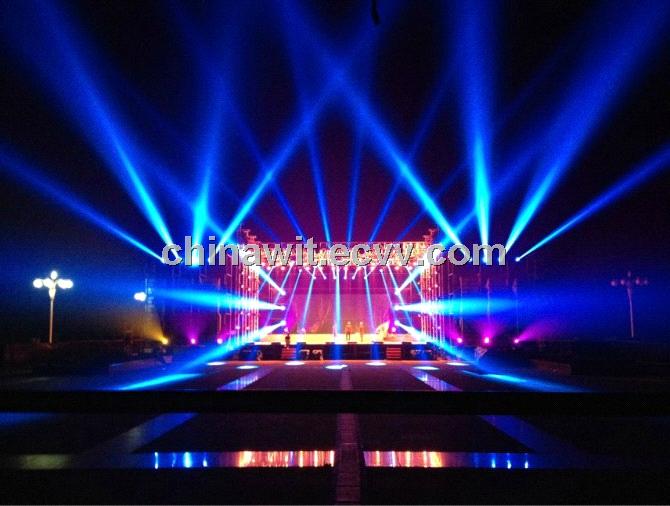

Product show
Superior 15R stage beam moving light
