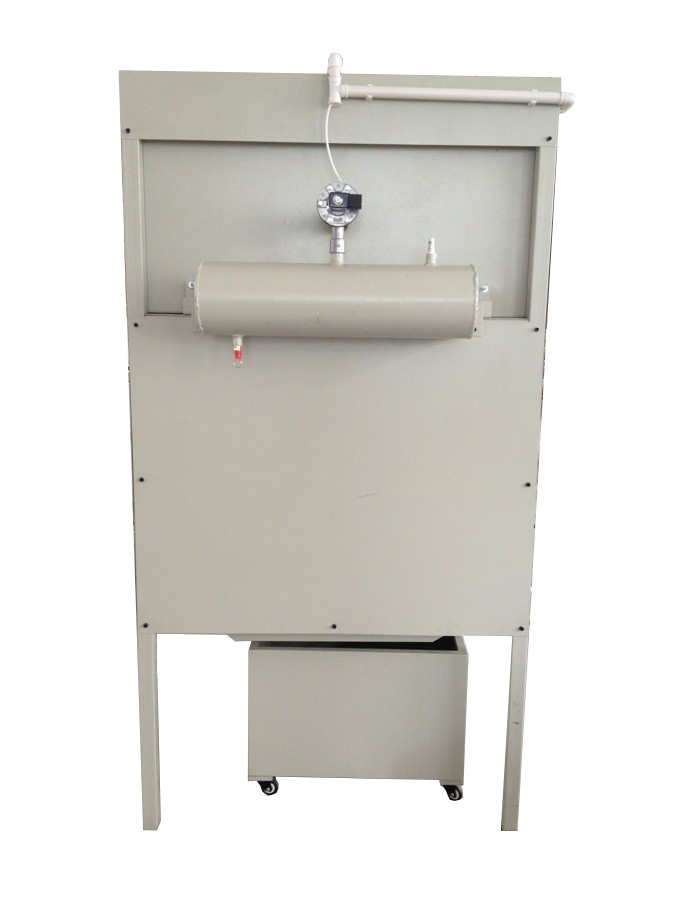

Electrostatic powder spraying booth

The powder booth fans draw air through filters and releases it through the top of the booth. It keeps your shop nice and clean,minimizing powder dust.



Benefits of our powder booth

• Operator Safety
• Environmental compliance
• Production capacity and operational efficiency
• Color changeover
• longer lasting, more durable, quieter

include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.



Data:

One door

Size: W1000mm D1600mm H1900mm

Body material: δ=1.5mm galvanized plate

Pulse valves and solenoids

Air velocity 0.6m/s

Recycling fan1/set 4-72-3.6A   1.5 KW

Fliter number 2pcs/set Flither

sizeφ325×900 fast-loading

light: 220v 36w 1pcs

Voltage is 380V /50HZ (could make as you want)



Booths size could Custom designed,Manual and automatic spray stations are also available.  Other features include:

Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor

Low-profile booth base eliminates operator platforms

Requires only quick, easy conncet electrical and pneumatics to start production .

Fan motor is 1.5KW-5.5KW.



During operation overspray powder accumulates on the cartridge filters. As the cartridge filters load, airflow decreases and the negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure maximum flitter life.



COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems,  Also we are supplier of powder coating, powder filters, powder coating machine,powder coating equipment,powder coatting gun,,Reciprocator, painting guns, pumps and their equipments.
