| Application: | Laser Cutting |
|---|---|
| Certification: | CE |
| Brand Name: | NICE CUT |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Overseas service center available |
| Model Number: | 1810 |
| Place of Origin: | China (Mainland) |
| Control Software: | Letro |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 500mm/s |
| Cutting Area: | 1800*1000mm |
| Cutting Thickness: | 0-20mm |
| Condition: | New |
Quick Details
Specifications

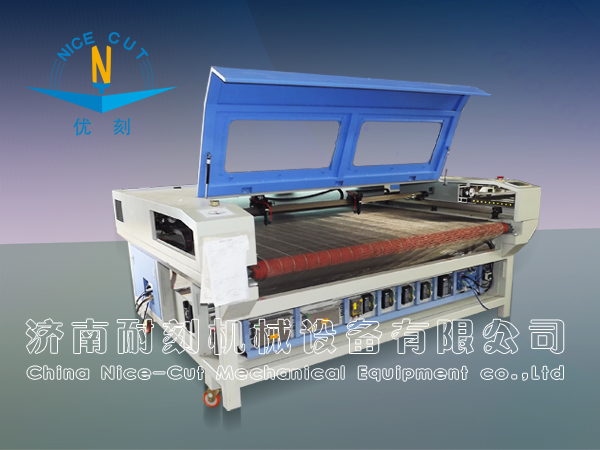

NC-1810 double heads full-automatic multi-function fabric laser cutting mahine
Parameters:
Working area:1800mm*1000mm
Laser power: 80W(larger power optional)
Minimun shape characters: Chinese characters2*2mm,letters 1*1mm
Resolution: <4000dpi
Power: AC220±10%,50HZ
Positioning Accuracy: <0.01mm
Machine weight: 515kg
Hanged line: 90lines
Total power: <1250W
Operating temperature: 0°C-45°C
Operating Humidity: 5%-95%(no condensation)
Graphic format supported: BMP.GIF.JPEG.PCX,TGA,TIFF,PLT,CDR,DMG,DXF
Engraving Speed: 0-64000mm/min
Cutting Speed: 0-36000mm/min
Feathures of automatic feeding laser cutting machine:
1.this type of laser cutting machine can cut materials fast and continuously.
2.It fully supports CAD,CORELDRAW,GERBER, Tajima and other design software.
3.3.User-friendly human-machine interface.
4.It can store up 128 working documents, and thus users can select files without connecting to the computer.
5.the system has achieved 12-way work state output and 16-way input,with strong anti-jamming capacity.

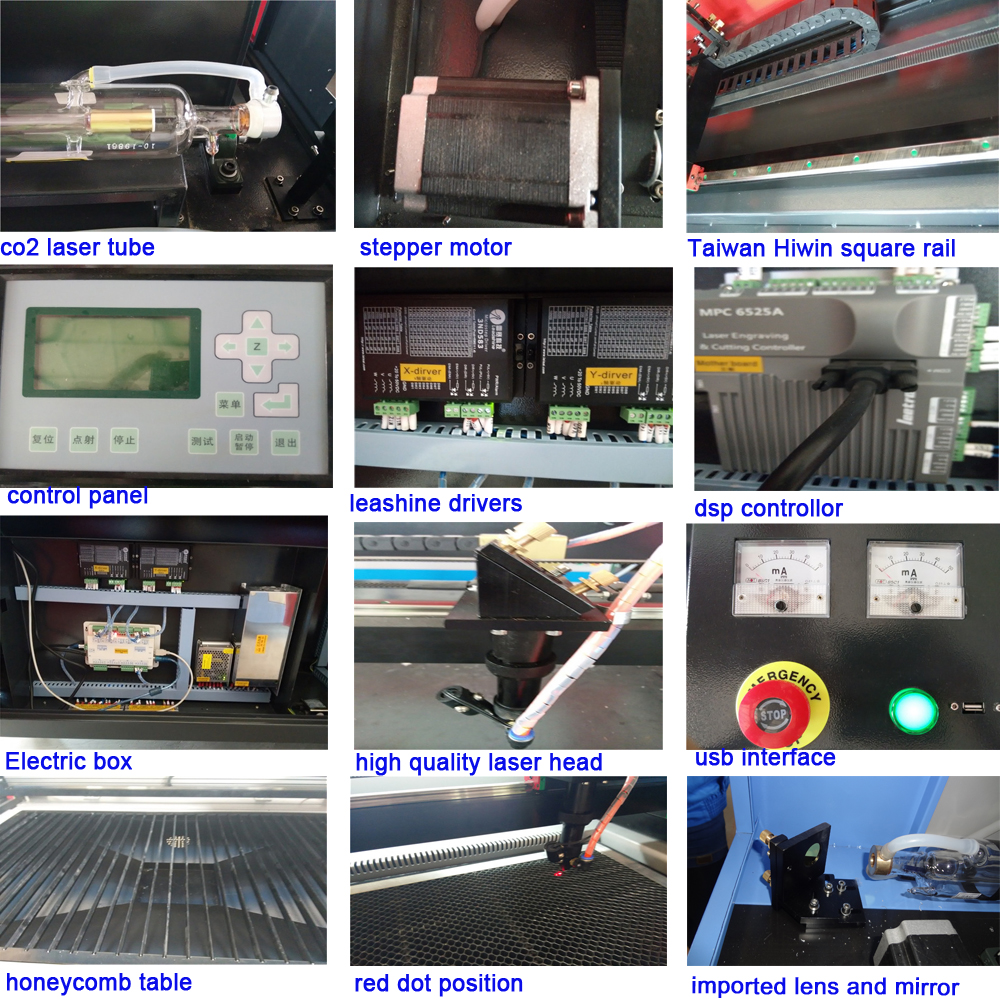

Important parts:
Important parts:
Applications:
Applicable materials include non-metallic materials,such as wood products,bamboo,paper,leather,cloth,plexglass,epoxide resin,acrylic,wool,plastic,rubber,ceramic tiles,crystal,jade etc.
Our automatic feeding laser cutting machine is used extensively in clothing,leather,plush toy and computerized enbroidery industries etc
Parameters:
Working area:1800mm*1000mm
Laser power: 80W(larger power optional)
Minimun shape characters: Chinese characters2*2mm,letters 1*1mm
Resolution: <4000dpi
Power: AC220±10%,50HZ
Positioning Accuracy: <0.01mm
Machine weight: 515kg
Hanged line: 90lines
Total power: <1250W
Operating temperature: 0°C-45°C
Operating Humidity: 5%-95%(no condensation)
Graphic format supported: BMP.GIF.JPEG.PCX,TGA,TIFF,PLT,CDR,DMG,DXF
Engraving Speed: 0-64000mm/min
Cutting Speed: 0-36000mm/min
Feathures of automatic feeding laser cutting machine:
1.this type of laser cutting machine can cut materials fast and continuously.
2.It fully supports CAD,CORELDRAW,GERBER, Tajima and other design software.
3.3.User-friendly human-machine interface.
4.It can store up 128 working documents, and thus users can select files without connecting to the computer.
5.the system has achieved 12-way work state output and 16-way input,with strong anti-jamming capacity.
Important parts:
Important parts:
Applications:
Applicable materials include non-metallic materials,such as wood products,bamboo,paper,leather,cloth,plexglass,epoxide resin,acrylic,wool,plastic,rubber,ceramic tiles,crystal,jade etc.
Our automatic feeding laser cutting machine is used extensively in clothing,leather,plush toy and computerized enbroidery industries etc
