| Light Source: | |
|---|---|
| Input Voltage(V): | 90-240V HZ50-60 |
| Lamp Power(W): | 162w |
| Lamp Luminous Flux(lm): | |
| Lamp Luminous Efficiency(lm/w): | |
| CRI (Ra>): | |
| Color Temperature(CCT): | |
| Working Temperature(℃): | -40 - 60 |
| Working Lifetime(Hour): | 100000hours |
| IP Rating: | IP55 |
| Certification: | CE,ROHS |
| Emitting Color: | Changeable |
| Base Type: | |
| Place of Origin: | China (Mainland) |
| Brand Name: | xlighting |
| Model Number: | X-P543 |
Quick Details
Specifications
2014 Promotion Dmx Stage Lights Dj High Quality constant current 54*3w RGBW Led Par Cans Stage Par Ligh
Technical specification:
1.Power supply: AC90V~240V, 50/60Hz;
2.Power consumption: 200W ;
3.Lamp: 3W*54 RGBW LED (R: 16, G: 16, B: 16, W: 6) ;

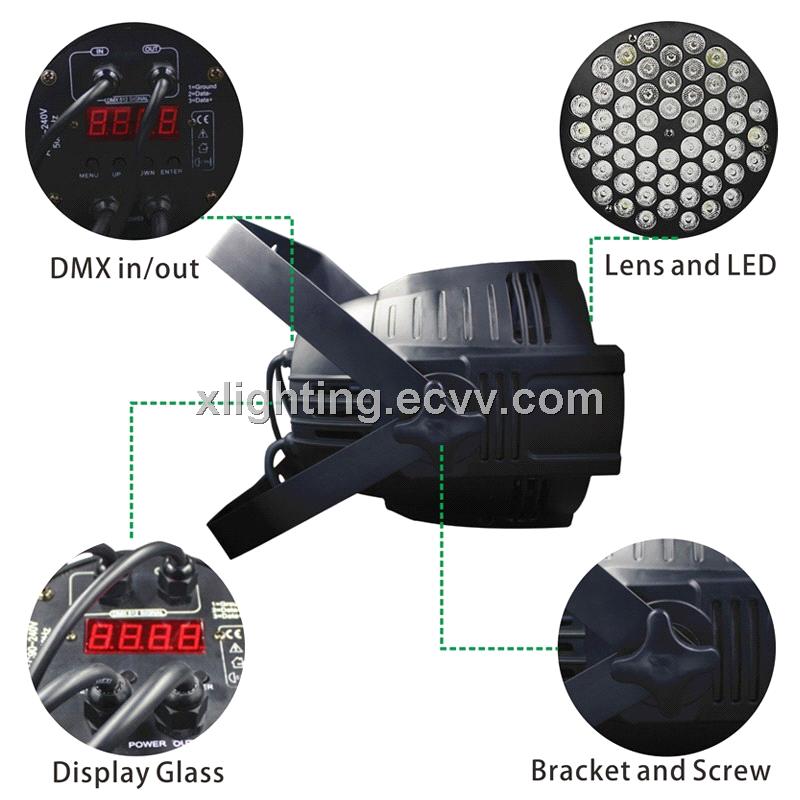

4.Control mode: DMX512/Auto/Sound/Master slave;
5.Channel: 8 Channel;
6.Packing Carton size: 25*25*36cm;
7.G. W:4KG/pc
Par Light Channel List
CH1:Always controls the beam control;
CH2:Red light beam control;
CH3:Green light beam control;
CH4:Blue light beam control;
CH5:White light beam control;
CH6:According to " red - green - blue –white " smooth twinkle speed regulation, gradation.
CH7:Speed regulation;
CH8:Gradient speed regulation
