Quick Details

Light Source:
Input Voltage(V):	90-240V HZ50-60
Lamp Power(W):	150w
Lamp Luminous Flux(lm):
Lamp Luminous Efficiency(lm/w):
CRI (Ra>):
Color Temperature(CCT):
Working Temperature(℃):	-40 - 60
Working Lifetime(Hour):	100000hours
IP Rating:	IP55
Certification:	CE,ROHS
Emitting Color:	Changeable
Base Type:
Place of Origin:	China (Mainland)
Brand Name:	xlighting
Model Number:	X-M412

Specifications

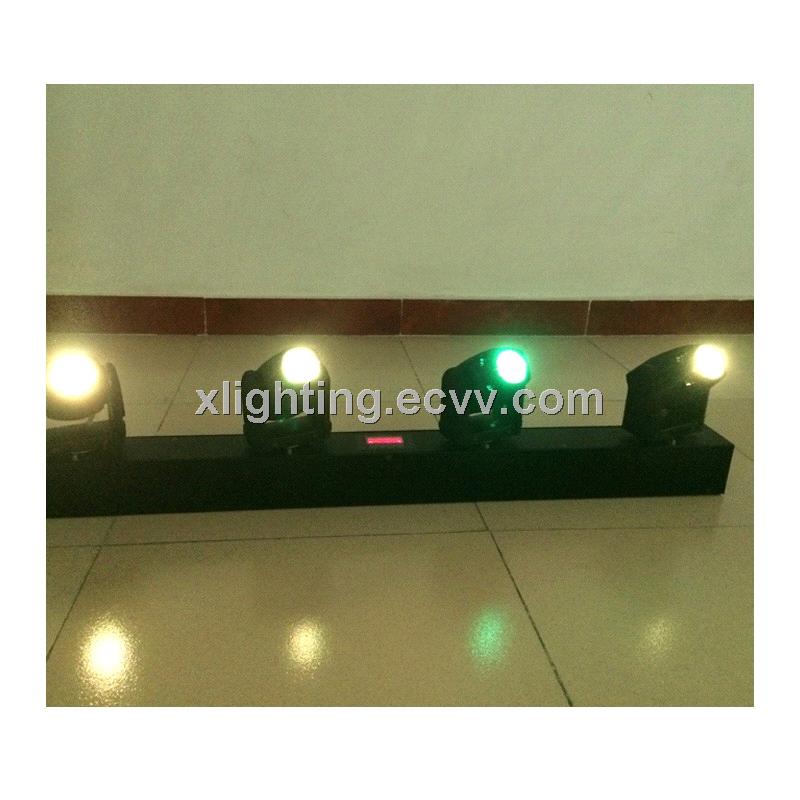

4 heads Cree RGB full color rotating led beam moving head light stage equipment light

Technical specification:

1.Input voltage : AC90-240V,50/60Hz;

2.Power consumption : 80W;
3.LED quantity : 4*10W Cree 4in1 LED;
4.Control signal : DMX512, master-slave , sound, auto;
5.Control channel: 6CH,29CH;
weight : 12KG;
7.Gross Weight : 14KG;
8.Packing Size : 1030(L)*90(W)*250(H)mm;

9.4pcs mini moving head light, individually controllable;

10.Horizontal 540°, vertical 270°;
11.Dedicated 8°advanced optical system;
12.18 times/s high-speed stroboscopic;
13.0-100% smooth linear dimming.

Moving head light channel list

No

Function

Illustrate

1

X

X Motor

2

Y

Y Motor

3

R Dimmer

R dimmer from dark to bright

4

G Dimmer

G dimmer from dark to bright

5

B Dimmer

B dimmer from dark to bright

6

W Dimmer

W dimmer from dark to bright

No

Function

Illustrate

1

Dimmer

RGBW dimmer from dark to bright

2

Strobe

RGBW Strobe Strobe speed from slow to fast

3

R1 Dimmer

R1 dimmer from dark to bright

4

G1 dimmer

G1 dimmer from dark to bright

5

B1 dimmer

B1 dimmer from dark to bright

6

W1 dimmer

W1 dimmer from dark to bright

7

R2 dimmer

R2 dimmer from dark to bright

8

G2 dimmer

G2 dimmer from dark to bright

9

B2 dimmer

B2 dimmer from dark to bright

10

W2 dimmer

W2 dimmer from dark to bright

11

R3 dimmer

R3 dimmer from dark to bright

12

G3 dimmer

G3 dimmer from dark to bright

13

B3 dimmer

B3 dimmer from dark to bright

14

W3 dimmer

W3 dimmer from dark to bright

15

R4 dimmer

R4 dimmer from dark to bright

16

G4 dimmer

G4 dimmer from dark to bright

17

B4 dimmer

B4 dimmer from dark to bright

18

W4 dimmer

W4 dimmer from dark to bright

19

X1

X1 motor

20

Y1

Y1 motor

21

X2

X2 motor

22

Y2

Y2 motor

23

X3

X3 motor

24

Y3

Y3 motor

25

X4

X4 motor

26

Y4

Y4 motor

27

Motor speed

1—250 motor speed from fast to slow

251--255

28

Function choose

0--30:DMX 29 channel control

31--50:Gradual(motor control)

51--70:Pulse variable (motor control)

71--90:running(motor control)

91--110:sound1 (motor control)

111--130:sound2; (motor control)

131--150:gradual(motor control)

151--170:Pulse variable(motor control)

171--190:running(motor control)

191--210:sound 1(motor control)

211--230:sound 2 (motor control)

231--255:no function

29

DMX512 ID

ID 1            5--9

ID 2            10--14

ID 3            15--19

ID 4            20--24

........            .........

ID 51           255

This function in the same address code, can be controlled 50pcs lights.

No	Function	Illustrate
1	X	X Motor
2	Y	Y Motor
3	R Dimmer	R dimmer from dark to bright
4	G Dimmer	G dimmer from dark to bright
5	B Dimmer	B dimmer from dark to bright
6	W Dimmer	W dimmer from dark to bright

No	Function	Illustrate
1	Dimmer	RGBW dimmer from dark to bright
2	Strobe	RGBW Strobe Strobe speed from slow to fast
3	R1 Dimmer	R1 dimmer from dark to bright
4	G1 dimmer	G1 dimmer from dark to bright
5	B1 dimmer	B1 dimmer from dark to bright
6	W1 dimmer	W1 dimmer from dark to bright
7	R2 dimmer	R2 dimmer from dark to bright
8	G2 dimmer	G2 dimmer from dark to bright
9	B2 dimmer	B2 dimmer from dark to bright
10	W2 dimmer	W2 dimmer from dark to bright
11	R3 dimmer	R3 dimmer from dark to bright
12	G3 dimmer	G3 dimmer from dark to bright
13	B3 dimmer	B3 dimmer from dark to bright
14	W3 dimmer	W3 dimmer from dark to bright
15	R4 dimmer	R4 dimmer from dark to bright
16	G4 dimmer	G4 dimmer from dark to bright
17	B4 dimmer	B4 dimmer from dark to bright
18	W4 dimmer	W4 dimmer from dark to bright
19	X1	X1 motor
20	Y1	Y1 motor
21	X2	X2 motor
22	Y2	Y2 motor
23	X3	X3 motor
24	Y3	Y3 motor
25	X4	X4 motor
26	Y4	Y4 motor
27	Motor speed	1—250 motor speed from fast to slow 251--255
28	Function choose	0--30:DMX 29 channel control 31--50:Gradual(motor control) 51--70:Pulse variable (motor control) 71--90:running(motor control) 91--110:sound1 (motor control) 111--130:sound2; (motor control) 131--150:gradual(motor control) 151--170:Pulse variable(motor control) 171--190:running(motor control) 191--210:sound 1(motor control) 211--230:sound 2 (motor control) 231--255:no function
29	DMX512 ID	ID 1 5--9 ID 2 10--14 ID 3 15--19 ID 4 20--24 ........ ......... ID 51 255 This function in the same address code, can be controlled 50pcs lights.
