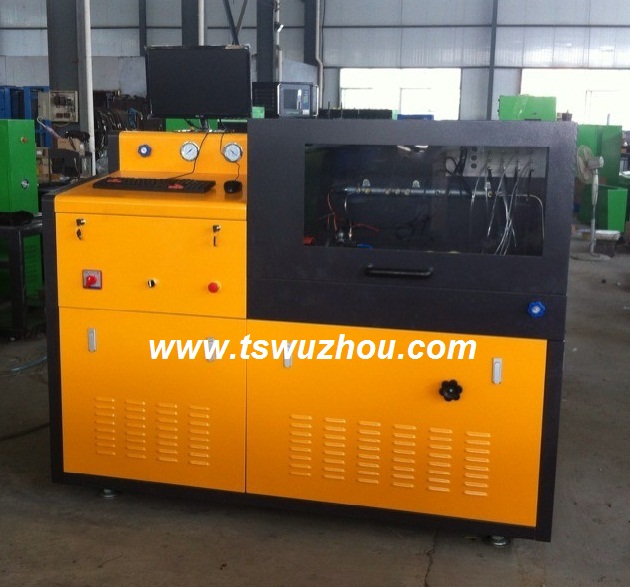

CR3000A COMMON RAIL TEST BENCH is professional test bench which is used for testing common rail system, can test common rail pump, common rail injectors at the same time.

    1. Pump Testing: Pressure, PVC working status, Leakage of itself, Pump Delovery ( Optional), HP0 pump testing ( Optional)

    2. Injector Testing: Leakage, Oil quantity (Pre-injection, Idling, emissions, full load) (Leak, VL, EM, LL, VE)

    3. Pressure Sensor/ DRV valve testing

    4. Support System: BOSCH, DENSO, DELPHI and SIEMENS

    5. Testing data inside ( Pump and Injector)

    6. Electronic fuel delivery measuring ( automatic detection)

    7. Data can be searched, printed and made into database.

    8. HEUI testing function ( Optional)

    9. EUI/EUP testing function ( Optional)

Technical parameters

1. Motor power: 7.5KW, 11KW, 15KW and 18.5KW

2. Electronic power: 3Phase 380V or 3Phase 220V

3. Motor speed: 0-4000 RPM

4. Pressure adjustment: 0-2000 bar

5. Flow testing range: 0-600ml/1000times

6. Flow measurement accuracy: 0.1ml

7. Temperature range: 40+-2 degree

8. Cooling system: fan or forced cooling
