| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE,ISO |
| Weight: | 720KG |
| Max. Lifting Height: | 1900mm |
| Min. Lifting Height: | 120mm |
| Rated Loading Capacity: | 450kg |
| Power: | 2.2kw |
| Lift Drive / Actuation: | Hand |
| Lift Mechanism: | Lift Chain |
| Model Number: | QJ-Y-2-45A |
| Brand Name: | sunshine |
| Place of Origin: | China (Mainland) |
| Clearance between posts: | 2800mm |
| Total width: | 3420mm |
| Thickness of post material: | 5mm |
| Long arm maximum length: | 1070mm |
| Long arm minimum length: | 730mm |
| Short arm maximum length: | 1000mm |
| Short arm minimum length: | 730mm |
| Lifting Time: | 50s |
| Lowering Time: | 30s |
| Power Supply Voltage: | 220V/380V ,1ph/3ph |
Quick Details
Specifications

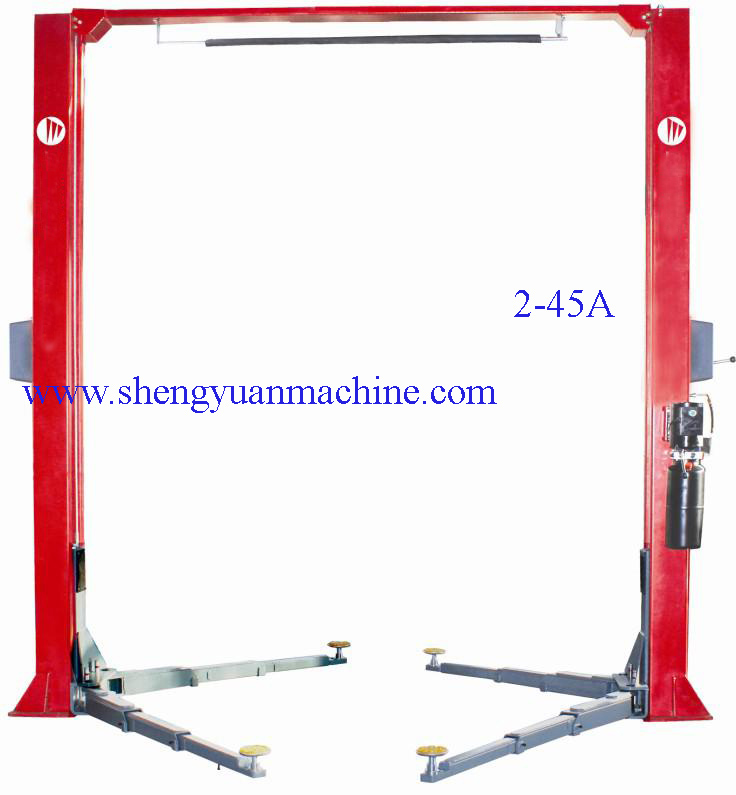

2 Post Hydraulic Car Hoist Lift:
Model: QJ-Y-2-45A
Clearfloor 2 post lift
With Single side manual release, Dissymmetrical arms;
Specifications:
Lifting capacity: 4500Kg (10000lbs)
Post Height: 3590mm
Car max lifting height: 1900mm
Minimum height: 120mm
Clearance between posts: 2800mm
Total width: 3419.6mm
Thickness of post material:5mm
Long arm maximum length: 1070mm
Long arm minimum length: 730mm
Short arm maximum length: 1000mm
Short arm minimum length: 730mm
Lifting Time: 50s
Lowering Time: 30s
Power Supply Voltage: 220V/380V ,1ph/3ph
Net Weight: 710Kg
Gross Weight :730Kg
Packing Dimension:
840*290*340MM and 3560*520*820MM
Cubic Meter: 1.5cbm Sh0ipping: 36 pieces / 40' container
