| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Overall Dimensions: | 3470*1160*2095mm |
| Fork Width: | 12cm |
| Fork Length: | 1070mm |
| Min. Lifting Height: | 15cm |
| Max. Lifting Height: | 3000mm |
| Rated Loading Capacity: | 3000kg |
| Power Souce: | Gasoline Engine |
| Type: | Powered Pallet Truck |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications

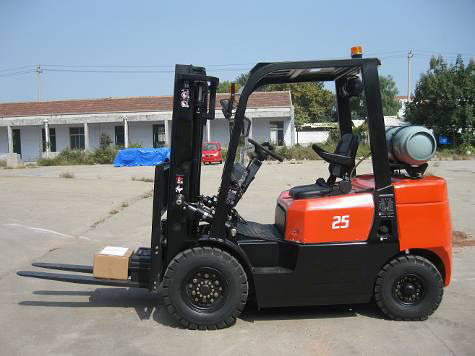

LPG & Gasoline Powered Forklift Truck:
|
Model |
CPQD20FR |
CPQD25FR |
CPQD30FR |
CPQD35FR |
||
|
Load capacity (kg) |
2000 |
2500 |
3000 |
3500 |
||
|
Load center (mm) |
500 |
500 |
500 |
500 |
||
|
Power type |
Petrol\liquid gas |
Petrol\liquid gas |
Petrol\liquid gas |
Petrol\liquid gas |
||
|
Max.lifting speeds(with load)(mm/s) |
400 |
400 |
400 |
375 |
||
|
Max.Driving speeds(with without load)(km/h) |
17/19 |
17/19 |
18/20 |
17/19 |
||
|
Max.Towing speeds(with/without load)(kN) |
14/9 |
15/10 |
15.5/10.5 |
16/11 |
||
|
Gradeability(with/without load)(%) |
15/20 |
15/20 |
15/20 |
15/20 |
||
|
H1 Lifting height (mm) |
3000 |
3000 |
3000 |
3000 |
||
|
Free lift (mm) |
60 |
60 |
80 |
80 |
||
|
Tilting angles(forward-backward) |
6/12 |
6/12 |
6/12 |
6/12 |
||
|
Min. turning radius (mm) |
2425 |
2425 |
2500 |
2500 |
||
|
Min. right angle aisle width (mm) |
2050 |
2050 |
2110 |
2110 |
||
|
Min. under-clearance (mm) |
110 |
110 |
135 |
135 |
||
|
Dimensions |
Overall length (inincluding fork) (mm) |
3580 |
3605 |
3800 |
3800 |
|
|
Overall width (mm) |
1160 |
1160 |
1230 |
1230 |
||
|
Overall height(mast lowered) (mm) |
2095 |
2095 |
2110 |
2110 |
||
|
Overall height(mast extend) (mm) |
4080 |
4080 |
4270 |
4270 |
||
|
H3 Overall height to overhead guard (mm) |
2095 |
2095 |
2110 |
2110 |
||
|
Fork overhang (mm) |
451 |
451 |
465 |
465 |
||
|
Wheel base (mm) |
1640 |
1640 |
1700 |
1700 |
||
|
Tread |
Front tread (mm) |
970 |
970 |
1000 |
1000 |
|
|
Rear tread (mm) |
970 |
970 |
970 |
970 |
||
|
Tyre |
Front tyre |
7.00-12 |
7.00-12 |
28×9-15 |
28×9-15 |
|
|
Rear tyre |
6.00-9 |
6.00-9 |
6.5-10 |
6.5-10 |
||
|
Total weight (kg) |
3320 |
3600 |
4320 |
4580 |
||
|
Fork width (mm) |
100 |
122 |
125 |
125 |
||
|
Fork thickness (mm) |
40 |
40 |
45 |
50 |
||
|
Backrest height (mm) |
1000 |
1000 |
1225 |
1225 |
||
|
Fork length (mm) |
1070 |
1070 |
1220 |
1220 |
||
|
Engine |
Engine model |
MITSUBISHI4G64-31ZG/CHINESEGQ4Y |
MITSUBISHI4G64-31ZG/CHINESEGQ4Y |
MITSUBISHI4G64-31ZG/CHINESEGQ4Y |
MITSUBISHI4G64-31ZG/CHINESEGQ4Y |
|
|
Rate power (KW) |
37/36 |
37/36 |
37/36 |
37/36 |
||
|
Rotate Speed At Rate Power (rpm) |
2650/2400 |
2650/2400 |
2650/2400 |
2650/2400 |
||
|
Max.torque (Nm) |
≥148 |
≥148 |
≥148 |
≥148 |
||
|
Rotate speed at max torque (rpm) |
1800~1900 |
1800~1900 |
1800~1900 |
1800~1900 |
||
|
Type of power shift |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
||
