| Place of Origin: | China (Mainland) |
|---|---|
| Brand Name: | TZJD |
| Model Number: | 1325B |
| Machine color: | Blue |
| Working area: | 1300mm*2500mm*200mm |
| Machine structure: | Rack gear |
| Working table: | Six section vacuum absorp |
| Spindle: | 3.7kw wind-cooling |
| Control system: | DSP |
| Motor and driver: | Leadshine driver |
| Command language: | G code |
| Guide rails: | HIWIN Square linear bearing |
| Software: | Type3 |
Quick Details
Specifications

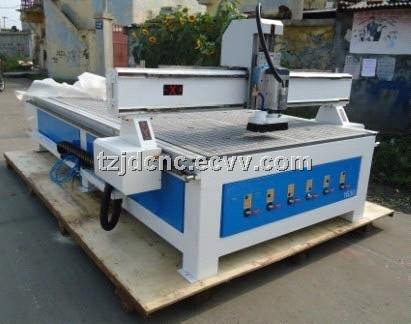

Wood Door Making CNC Router Cutting Engraving TZJD-1325B
1-Product Features
1. Three Axis under the control of Type3 software, high automation.
2. Y axis adopts double motors to ensure stable operaton.
3. High speed and efficiency, max. speed over 14m/m.
4. The CNC Engraver is with two motors and unique two rack driving,
No deformation and vibration after a long-time work within high speed.
5. Application of driver with high definition subdivision ensures fast speed and high accuracy.
6.Wood industry,it is a professional wood door making and furniture making machine.
7. Automatic oiling system fulfills the periodic lubrication maintenance just by a slight press.
8. Imported Taiwan HIWIN linear guide rail, ensure the machine stable movement.
9. Vacuum absorption table, which can guarantee to adsorb the wooden material firmly.
2-Applicable industry
4-Specification Parameter
Description
Paramater
TZJD-1325B
Working Area (X*Y*Zmm)
1300mmx2500mmx200mm
X, Y Structure
Gear Wheel Transmission, Shaft Linear Bearings
Z Structure
Ball Screw, Shaft Linear Bearings
Table Surface
Vacuum absorption table with vacuum pump system
Max Engraving Speed
20000mm/min
Frame
Cast Square tube welding
Spindle power(KW)
3kw/4.5kw/5.5kw/6kw/7.5kw/9kw
Max. Power Consumption(Without spindle)
2.0KW
Spindle Speed
6000-24000rpm
Resolution
0.005mm
Repeatability
0.01mm
Voltage
AC220V,50/60Hz,1PH(option,380V 3PH)
Drive motor
Stepper/servo
Working Dictate
G Code*.u00*.mmg*.plt
Operating system
Dsp System/Syntec/LNC
Necessary function
Auto-oiling system
Interface
USB
Flash memory
128M(U Disk)
Software Compatability
Type3,Ucancam, Artcam Software
Running Environemt
Temperature: 0℃～45℃
Relative humidity: 30%～75%
Working software
Windows98/2000/xp
Wood industry,wood door making and furniture making, relief, double-color board, bamboo crafts,
Advertising industry,breastplate,doorplate, aluminum, marble/stone industry.
3-Applicable material
Wood,organic glass,PVC board, plastic, marble, metal, aluminum, KT board,Acryl ,etc.

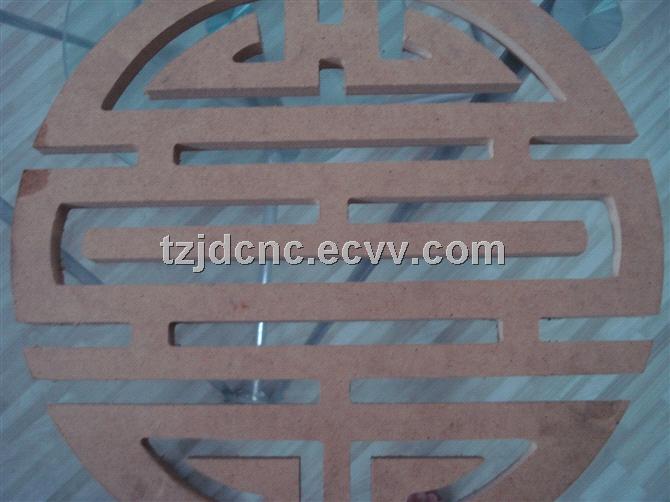

6- Sample picture
