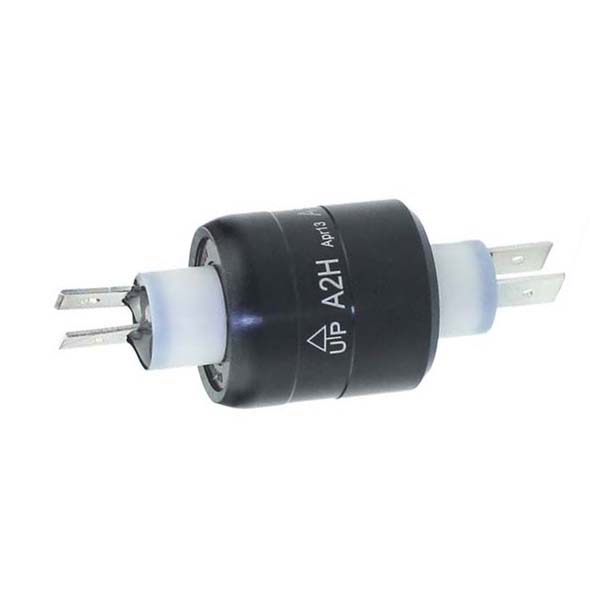

2 Poles No Noise Mercury Slip Ring Rotating Connectors

Description

Slip rings enable the transfer of electric power or signal circuits across a rotating surface, such as those found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites.  the sliding contact is established by a brush that presses against a metal ring.  the " brush" can look like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring.

Mercury contact slip ring is used with special sealing materials,insulation and conductive technology production.

Specification
Poles	2
Operating Speed	0-1800rpm
Working Temperature	-30℃~ +60℃
Electrical:
Voltage Rating	250VAC/DC or higher
Current Rating	30A
Dielectric Strength	≥500V@200Hz between each circuit
Insulation Resistance	>25MΩ
Electrical Noise	≤10mΩ

Feature

A. Low contact resistance
B. No maintenance
C. Aluminum alloy or stainless steel
D. High reliability


Product display

Company introduction



JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and skillful 300 employees. JINPAT slip ring is one of the best-known brands in the Europe and North America.



It is rich technologically advanced equipment with high precision test instruments. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.



Frequent Asked Questions



1. What does JINPAT do?

We focus on developing, designing, manufacturing high quality slip rings, and offering various solutions for rotating systems.

2. Can you tell me how to install the through hole slip ring

Please do not worry, our sales person will send you installation guide to help you how to install product correctly in the shortest time.



3. how biggest current of your product could pass?

 We can customize special design as per customer'S requirement. so far, we sold the biggest current--600A to our customer, which received great welcome from them. If you require higher current, please feel free to contact with us.



4. Your coax rotary joint series only have one channel or more?

 We can provide one channel or multi-channel with SM or MM to you. If you have other special demands, our sales engineer will recommend you the most suitable product.



5. Why should I choose precious metal over mercury contacts?



the primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. Leakage of the mercury and the resultant contamination could be extremely serious.



Notes



1. the operating life of the unit depends upon temperature, rotation speed and environment.

We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

2. If you want to know more details about JINPAT slip rings, please contact us with you special needs!

Custom Solutions

JINPAT offers the superior fiber brush technology that has an extensive lifetime of over 100 million revolutions. this technology does not require lubricants and is characterized by low wear generation for minimal maintenance. Also the temperature range and the packaging of this product matches the harsh conditions required by this industry.

Our engineering department is available for consultation to help you tailor a solution to meet your requirements.
