| Input Voltage: | AC85-305V |
|---|---|
| Power: | 18W |
| Light Source: | 1W High Power Led |
| Chip Brand: | Epistar & Bridgelux 45MIL |
| Lumen: | 1800lm |
| Lamp Luminous Efficiency(lm/w): | 100-110LM/W |
| Beam Angle: | 120 degree |
| CRI (Ra>): | 80 |
| Color Temperature (CCT): | 2700-7000K |
| Working Temperature: | -20-45 degree |
| Working Lifetime (Hour): | 50000H |
| Lamp Body Material: | Die-cast aluminum |
| IP Grade: | IP44 |
| Size: | 190xH80mm |
| Hole Size: | 180mm |
| Certification: | CE & Rohs & FCC & EMC & C-tick |
| Place of Origin: | China |
| Brand Name: | VCC |
| Install Style: | Downlight |
| Dimmable: | Optional |
| OEM/ODM: | Available |
Quick Details
Specifications

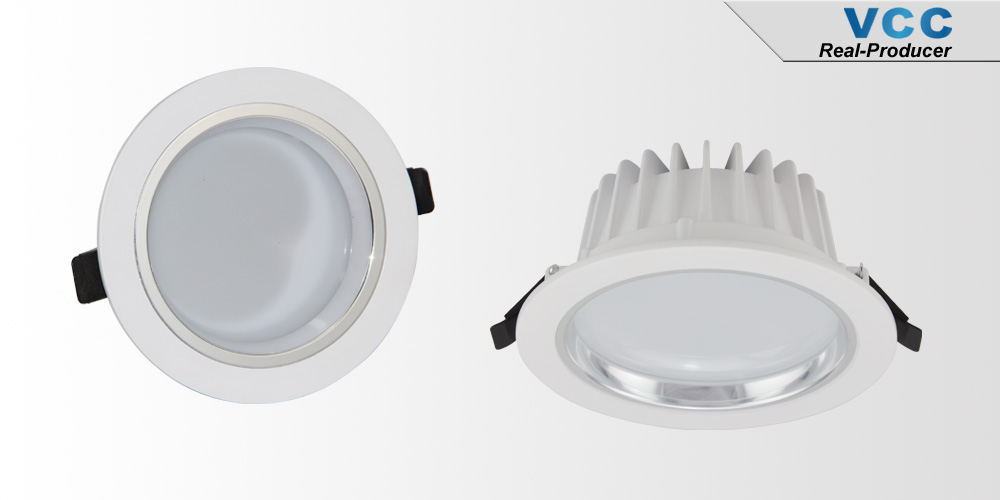

6 inch 18W Dimmable Led Downlight
1). It can be made from 4W to 30W (2.5 inch -10 inch are optional)
2). 3 YEARS WARRANTY
3). High CRI, Ra> 80
4). High PF, PF> 0.9
5). CE & Rohs Approval
Specification of 18W High Power Dimmable Led Recessed Downlight
| Item | Technica Data | Item | Technica Data |
| Led Type: | 1W high power LED | Beam Angle: | 120 degree |
| Power: | 18W | Lumen: | 1800LM |
| Input Voltage: | AC85-305V | CRI (Ra> ): | 75-80 |
| Working Temperature: | -20-45 degree | Working Life: | 50000H |
| Frequency: | 50/60HZ | Operation Humidity: | 10%-90% |
| Color Temperature: | 2700-7000K | Power Factor: | > 0.85 |
| Product Size: | φ190xH80mm | Hole Size: | φ180mm |
Dimmable 4W-30W Epistar & Bridgelux Led Down Light
| Model NO |
Watt (W) |
Lumen (LM) |
Dimension | Hole Size |
Input Voltage |
Dimmable |
| VC-TDB2H-P04 | 4W | 400LM | Φ90xH54mm | Φ75mm |
AC85- 305V |
YES |
| VC-TDB4L-P09 | 9W | 900LM | Φ130xH65mm | Φ115mm | YES | |
| VC-TDB5L-P12 | 12W | 1200LM | Φ160xH65mm | Φ145mm | YES | |
| VC-TDB5H-P15 | 15W | 1500LM | Φ180xH74mm | Φ165mm | YES | |
| VC-TDB6L-P18 | 18W | 1800LM | Φ190xH80mm | Φ180mm | YES | |
| VC-TDB8L-P24 | 24W | 2400LM | Φ230xH85mm | Φ205mm | YES | |
| VC-TDB8H-P24 | 24W | 2400LM | Φ240xH70mm | Φ220mm | YES | |
| VC-TDB10L-P30 | 30W | 3000LM | Φ300xH100mm | Φ260mm | YES |
Package Details:
| Available: | VCC Standard Neutral White Box/ Neutral Color Box/ Customized |
| Inner Box Size: | 210x210x100mm |
| Master Carton Size: | 645x415x435mm |
| Qty/CTN: | 24pcs |
Features:
1). General Indoor Illumination
2). No Infrared and UV
3). Aluminum Reflector to Reduce Glare
4). Super bright, high energy-saving
5). High power Bridgelux 45MIL chips with 100-110LM/W
6). Epistar & Bridgelux chips and Isolated Driver promise high quality
7). All Models can be Dim to 0%-100% with Universal or Trailing Edge Dimmer
8). No RF interference, No flickering
9). No mercury and other hazardous materials fully RoHS-compliant
Application:
Indoor Places: e. g. Office, hospital, public, transportation, shopping mall, super market, retail shop, warehouse, car park, restaurants, schools and corridor etcs
Payment Term:
Serivce:
1). Short Delivery time: 5-14 working days
2). Flexible Payment Term: T/T, L/C, Western Union, PayPal etcs
3). No Limited of MOQ to support trial order
4). Fast Reply: All enquiries or emails are promised to be replied within 1 hour
5). OEM & ODM are supported: your required customized Lighting can be designed and produced by us
6). Project orders are supported: kinds of project solutions are offered to meet your demands
7). Customer protective policy: protect clients' marketing and design ideas, be secret with their private information
Product Details:
Our German Western Hotel Project:
