| Application: | Sewage |
|---|---|
| Pressure: | High Pressure |
| Fuel: | Diesel |
| Standard or Nonstandard: | Standard |
| Power: | Electric |
| Usage: | Water |
| Structure: | Single-stage Pump |
| Theory: | Centrifugal Pump |
| Model Number: | SP |
| Brand Name: | naipu |
| Place of Origin: | China (Mainland) |
| Model: | 40PV-SP |
| Material: | Metal or Rubber |
| Capacity: | 19.44 to 43.2m3/h |
| Head: | 4.5-28.5 |
| Speed: | 1000-2200RPM |
| Max Power: | 15kw |
| No.of vanes: | 5 |
| Impeller Dia: | 198mm |
| Weight: | 285kg |
Quick Details
Specifications

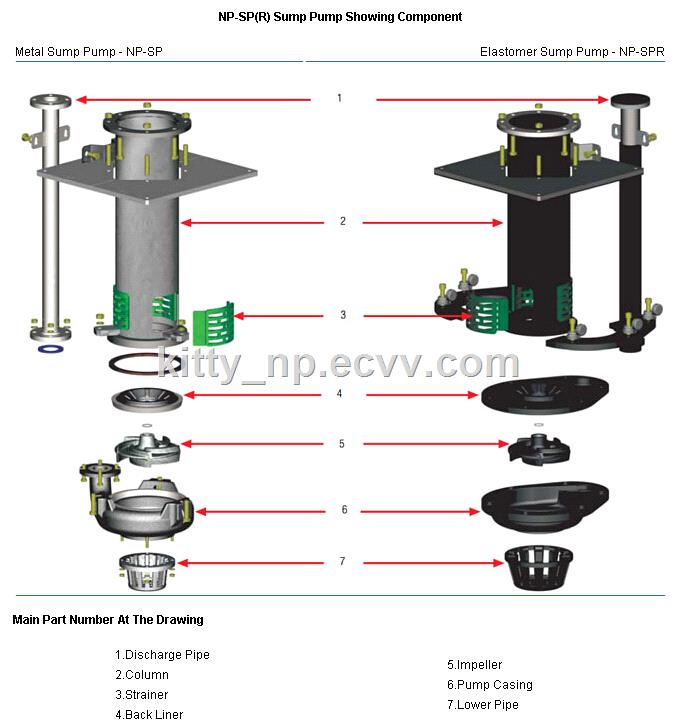

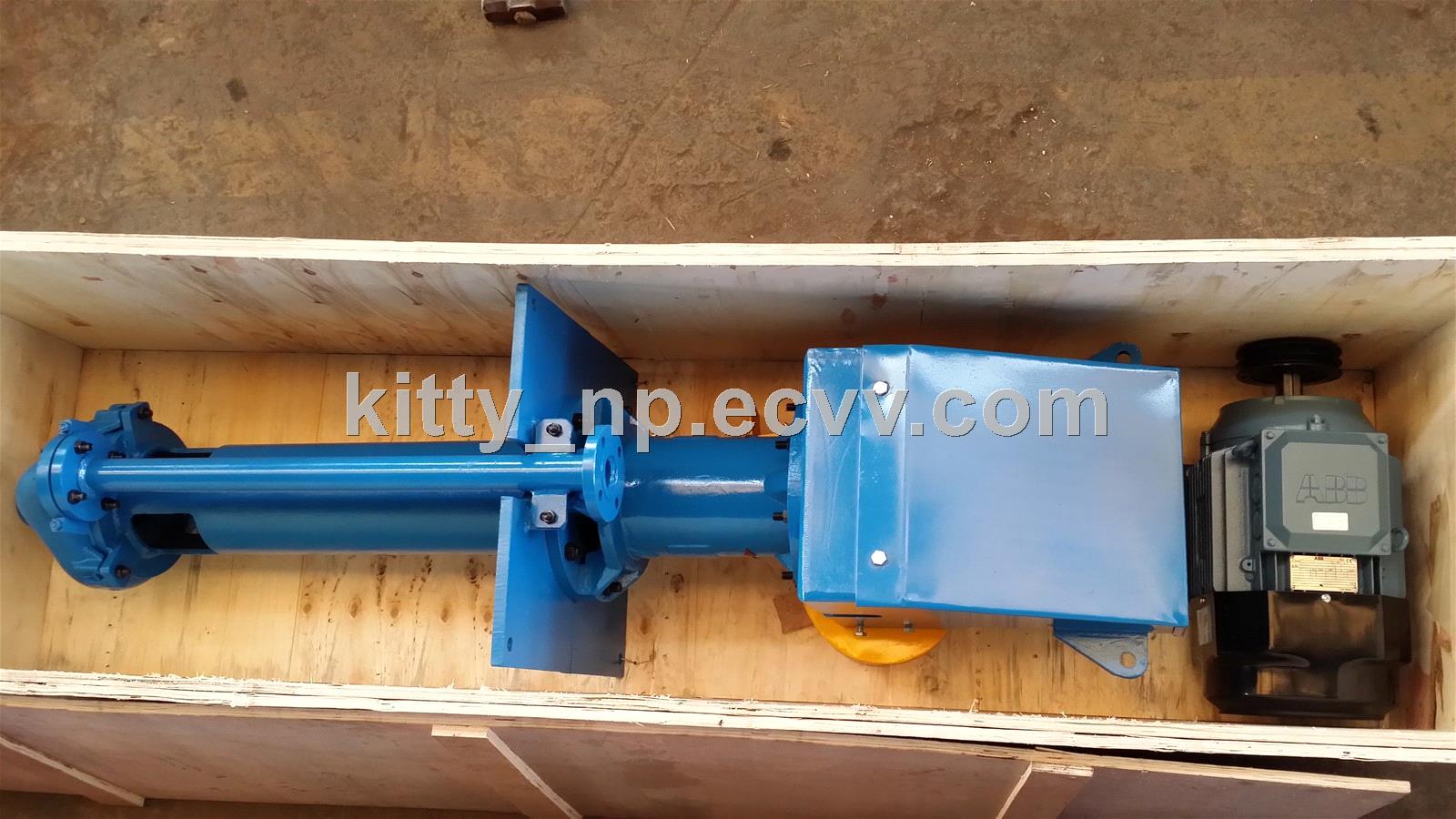

100RV-SP Vertical Sump Slurry Pump
Manufacture of Sand pump, dredging pump, slurry Pump
Please contact me for more details Direct
NaiPu Main products
1. AH, AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM Casting machinery parts
Pump Type: Vertical centrifugal slurry pumps
Drvie Type: BD/DC
Power: Motor
Discharge Size: 40mm-200mm
Capacity: 5.4-247.5 l/s
Head: 4.5m-37m
Feature and Application:
SP Pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.these pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.
Typical Applications---
Sump drainage washdown
Floor drainage
Mill sumps
Carbon transfer
Monitoring
Magnetite mixing
NP-SP SUMP PUMP PERFORMANCE PARAMETERS
Type |
Allowable Mating Max. Power(Kw) |
Range of Performance |
Impeller | |||||
Capacity/Q |
Head/m |
Speed/rpm |
Max Efficiency/% |
No. of Vanes |
Impeller Diameter/mm | |||
M3/hr |
L/S | |||||||
40PV-NP-SP |
15 |
19.44-43.2 |
5.4-12 |
4.5-28.5 |
1000-2200 |
40 |
5 |
188 |
65QV-NP-SP |
30 |
23.4-111 |
6.5-30.8 |
5-29.5 |
700-1500 |
50 |
5 |
280 |
100RV-NP-SP |
75 |
54-289 |
15-80.3 |
5-35 |
500-1200 |
56 |
5 |
370 |
150SV-NP-SP |
110 |
108-479.16 |
30-133.1 |
8.5-40 |
500-1000 |
52 |
5 |
450 |
200SV-NP-SP |
110 |
189-891 |
152.5-247.5 |
6.5-37 |
400-850 |
64 |
5 |
520 |
250TV-NP-SP |
200 |
261-1089 |
72.5-302.5 |
7.5-33.5 |
400-750 |
60 |
5 |
575 |
300TV-NP-SP |
200 |
288-1267 |
80-352 |
6.5-33 |
350-700 |
50 |
5 |
610 |
Materials of Construction
|
IMPELLERS |
CASING |
COLUMN |
DISCHARGE |
SEALS |
Standard |
High Chrome Alloy Rubber |
High Chrome Alloy Rubber |
Mild Steel |
Mild Steel |
Natural Rubber |
Options |
Butyl |
Neoprene |
Neoprene |
Neoprene |
Nordel |
Company information:
Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. the enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. the technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
the company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
the products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
