| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Model Number: | 8/6E-G |
| Brand Name: | naipu |
| Place of Origin: | China (Mainland) |
| Suction Size: | 14 inches |
| Discharge size: | 12 inches |
| capacity: | 1500-2200m3/h |
| Head: | 10-65m |
| Drive: | Motor or diesel |
| Material: | high chrome alloy |
| Factory or not: | Factory |
| OEM: | Yes |
| MQQ: | 1 pcs |
| Feature: | Abrasive resistant |
Quick Details
Specifications

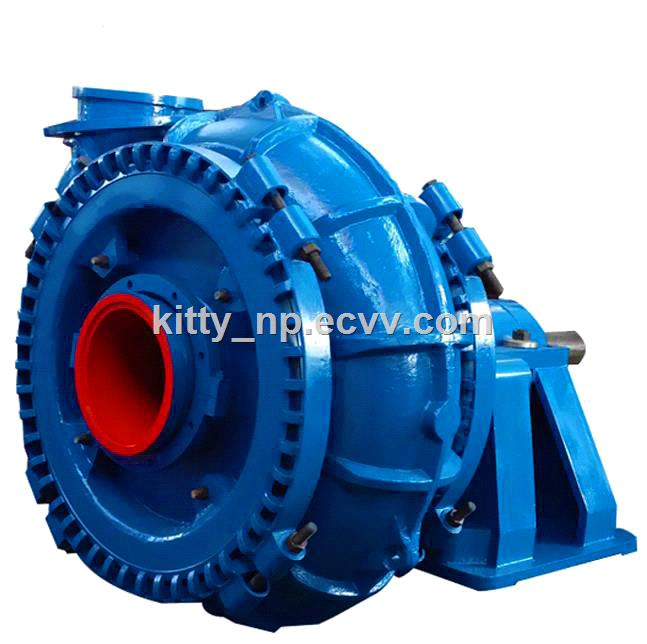

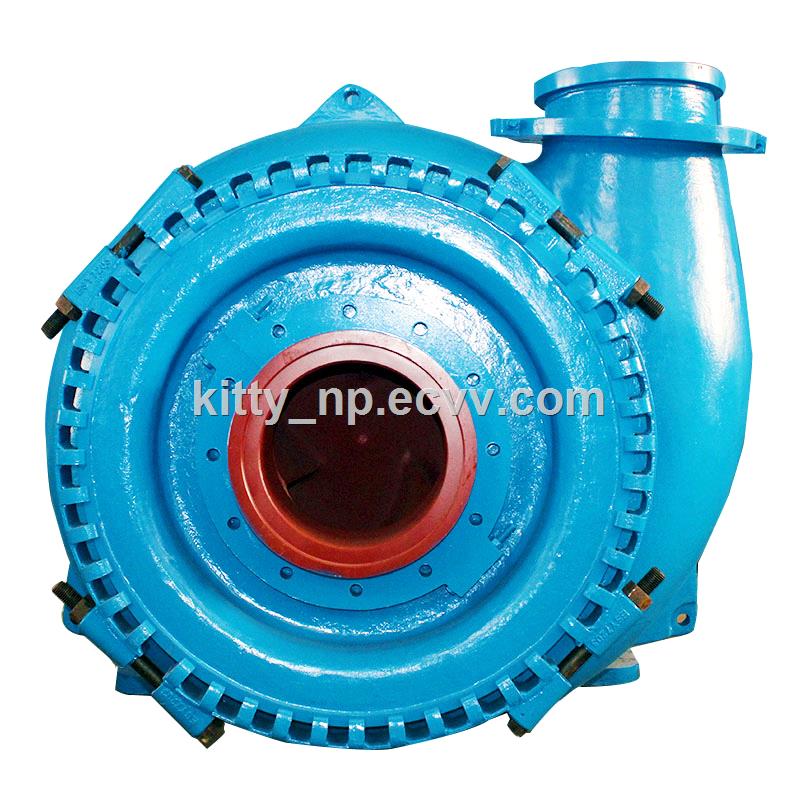

NP-G 6 inch Sand Dredging Pump
What products NaiPu Pump Supply?
1. Horizontal slurry pump, vertical sump pump, Submersible Slurry Sand pump, Sand gravel pump, Dredging pump, Mine dewatering pump And so on.
2. OEM Service according the drawing or sample. NaiPu Own mould, foundry, machining, assembly workshop.
Welcome to contact me for more the latest catalogue.

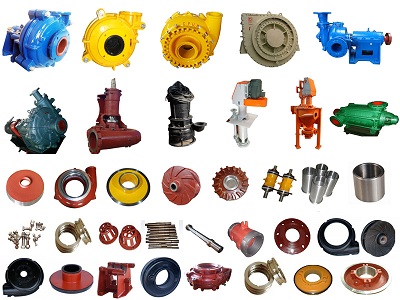

NaiPu Main products
1. AH, AHF,Horizontal Slurry Pump
2. SP Vertical sump pump

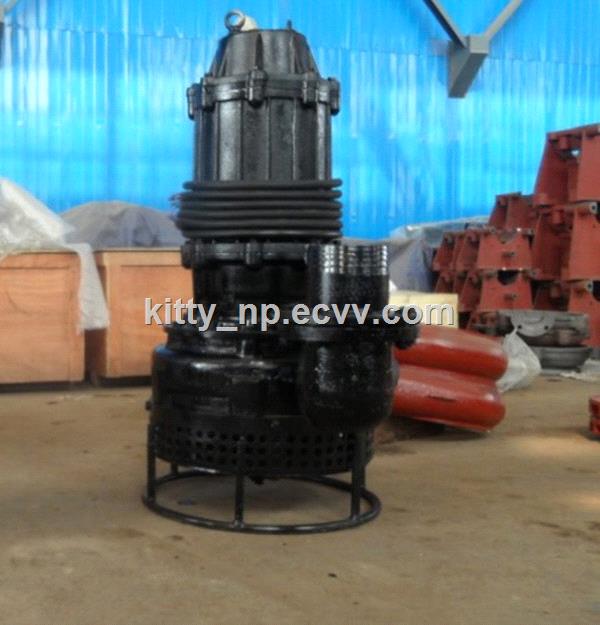

3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM Casting machinery parts
1. AH, AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM Casting machinery parts
Description of Sand Dredging Pump
Name: NP-G 6 inch Sand Dredging Pump
Pump Type: centrifugal
Drvie Type: ZVz/CRz/CV/DC
Power: motor/diesel
Discharge Size: 4 to 28 inch
Capacity: 36-3168m3/h
Head: 7-66m
Feature and Applications of Sand Dredging Pump
G series of Dredge and Gravel pumps is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. the large volume internal profile of the casing reduces associated velocities further increasing component life. Model Flow(m3/h) Head(m) Speed(r/min) Efficiency(%) NPSHr/m Max permissible particle size/mm 6X4D-NP-G 187-36 7-51 1400-600 30-58 1.5-3.7 82 8X6E-NP-G 576-133 10-48 1400-800 60-54 1.2-4.2 127 10X8F-NP-G 930-216 11-44 940-500 65-34 3-7 178 12X10G-NP-G 1512-360 11-58 850-400 70-50 1.5-6 220 14X12G-NP-G 3168-522 9.5-66 700-300 68-60 2-8.5 241 16X14TU-NP-G 3024-900 14-45 500-300 70-50 3.5-6.5 254 10X8F-NP-GH 1091-324 19.2-56.5 800-500 72-60 1.5-5 180 12X10G-NP-GH 2232-612 28-77 700-450 73-60 1.5-8 210
Typical Applications of Sand Dredging Pump
Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet
Performance Curve of Sand Dredging Pump

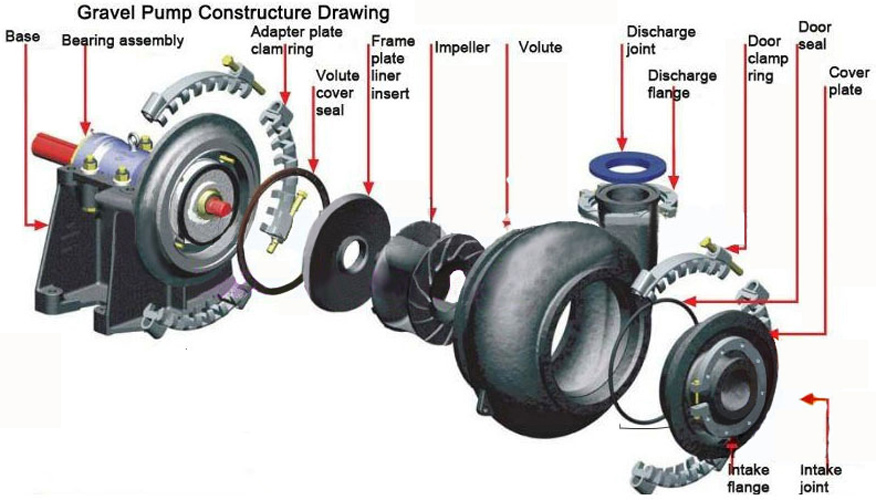

Construction of Sand Dredging Pump
Main Part Number at the Drawing
003: Base 131: Bowl
005: Bearing Assembly 137: Impeller
132: Intake Joint 041: Back Liner
Discharge Joint 135: Door Clamp Ring
130: Discharge Flange 134: Adapter Plate Clamp Ring
Intake Flange 124: Volute Cover Seal
013: Cover Plate
Materials of Construction
Materials of Construction
| VOLUTE | IMPELLERS | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard | High Chrome Alloy | High Chrome Alloy | Cast Iron | Chrome Alloy or SG Iron |
Chrome Alloy or SG Iron |
SG Iron | Natural Rubber |
| Options | SG Iron | SG Iron | Mild Steel Fabricated |
SG Iron | SG Iron | EN56C Ferralium Hasteloy C Ceramic Stellite Chrome Oxide |
Nordel Neoprene Viton Butyl EPDM |
FAQ
Q1. What information should I let you know if I want to get a quotation?
A: Usage, Pump capacity, pump head , Slurry SG, the More the Better.
If you are using slurry pump, Please let me know the type you are using now.
Q2. Are you a manufacturer?
A: Yes, with 30 years manuafacture and design experience. Our Factory located in Shijiazhuang, Hebei, China. Welcome to visit.
Q3. What the the MQQ?
A: 1 set even 1 piece pump spare
Q4. Do you accept OEM (Original Equipment Manufacture)?
A: yes, we can arrange manufacture accroding the drawing or sample.
We haver rich experience in OEM design, like shaft, shaft sleeve, wear parts, impeller, also the whole pump
Q. how the Delivery terms?
A: by sea.by plane, as customer's request
Q6. how to gurantee the quality.
A: All our pump and spare parts pass ISO 9001:2008 and CE certificate. and also we will do strict inspection before shipment.
Warranty time is 12 month.
Q7. Delivery time
A: for the Common Slurry pump and spare parts, the delivery time within 7-15 days.
Q8. Package of sand gravel suction pump
A: Fumigation free wooden box with plastic inner
Q9. Payment Term
A: TT, Alibaba Trade Assurance, LC or negotiate.
Our Advantage:
1. Own Model, Casting, Machining, Assembly Workshop with 30 years experience
2. Our pump and spare parts can totally interchange with AH HH M L SP AF G Series
3. We have exported the pump to many country with good reputation, like USA, Australia, Russia, Germany, Itally, South Africa, Zambia, India, Malaysia, Thailand, and etc.
4. We are 30% of the cost of famous brand
5. the delivery is acceptable. for standard pump and spare parts, Delivery time is 5-7 days after get the payment
6. with rich experience of manufacture and design ability, can supply OEM (Original Equipement Manufacture) acording the drawing or sample
Welcome to contact me for More Details of sand dredging pump
