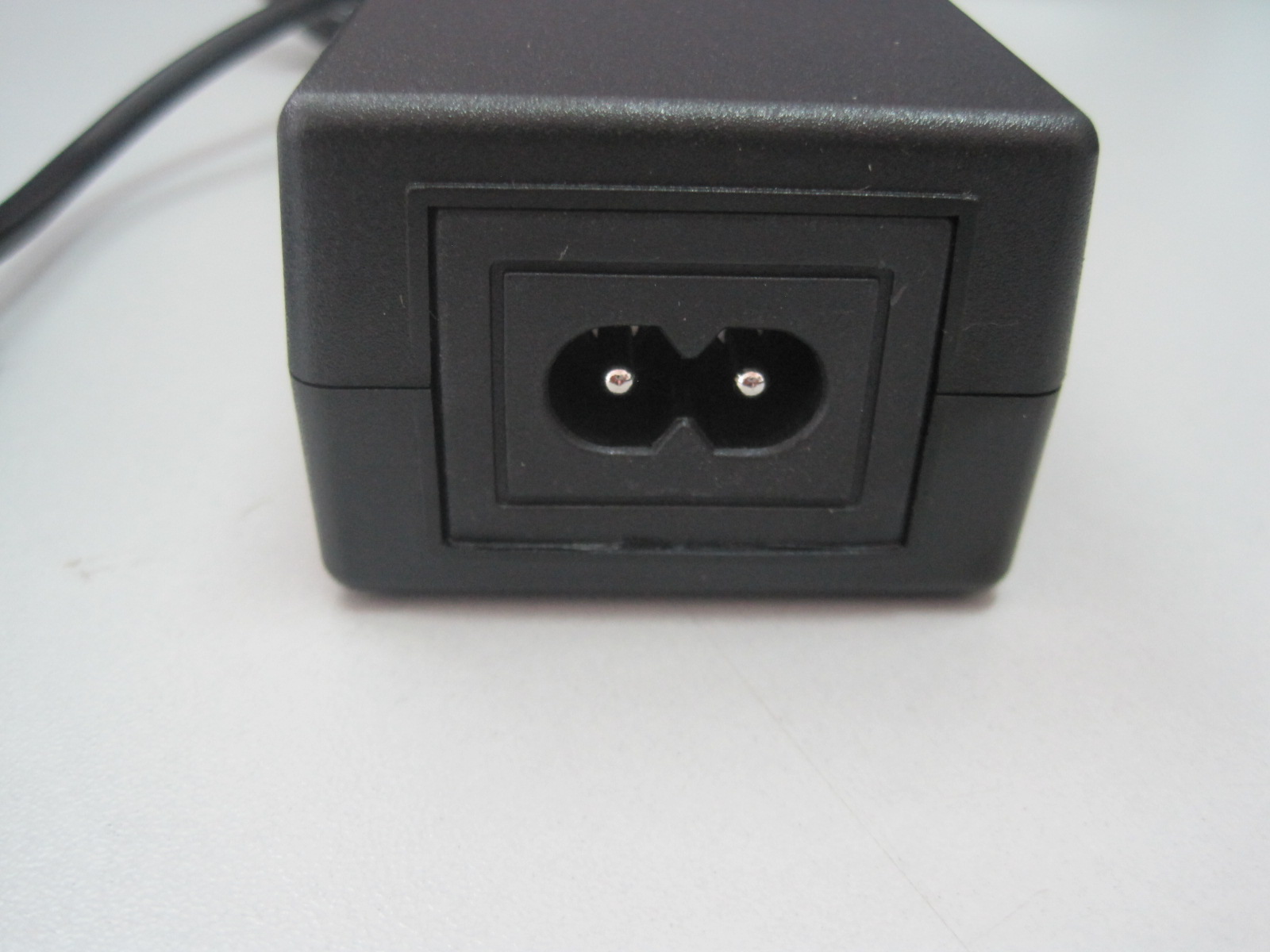

UL&SAA Listed 24V 2A 48W AC to DC Switching Power Adapter type
ULSAA Listed 24V 2A 48W ACDC Switching Power Adapter type

Feature:
Universal AC input / Full range

Protections: Short circuit / over current / over voltage

Cooling by free air convection

Small and compact size

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

SPecification:

MODEL		JYH32-2402000
Output	VOltage	18.0-24.0V
	CUrrent	0 2.0A
	Power(max.)	48W
	Ripple&noise(max.)	100mVp-p
	EFficiency	85%
	VOltage tolerance	5.0%
	LineRegulation	1.0%
	LOad regulation	1.0%
	SEtup,rise time	100ms / 115VAC at full load
	HOld up time	30ms/115VAC at full load
Input	VOltage range	90 ~ 264VAC
	FRequency range	47 ~ 63H
	AC CUrrent(max.)	1.2A/115VAC 1.0A/230VAC
	INrush current(max.)	COLD START 30A/115VAC 60A/230VAC
PRotection	OVer current	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	OVer voltage	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	SHort circuit	TYPE: cut output reset: automatic recovery
ENvironment	WOrking temp.	0~ 40
	WOrking humidity	20% ~ 80% R.HNon-condensing
	STorage temp.,humidity	-20~ 70 20% ~ 90% R.H
Safety &EMC	DIelectricSTrengthHi-Pot	Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA
	INsulation resistance	Primary to secondary, Primary to shell, shell to secondary;>100M Ohms / 500VDC
	LEaking current	0.25mA / 240VAC
	SAfety standard	UL GS SAA KCC BSI PSE CCC
	EMC STandards	CE EN55022B FCC
	GReen mode	Noload Power Consumption Less Than 0.3W
Others	MTBF	50000hrs min. MIL-HDBK-217F (25 )
	DImension	1154731mm(LWH)
	Weight	160g/pcs
