Features;

Universal AC input / Full range

Protections: Short circuit / Over current / Over voltage

Cooling by free air convection

Small and compact size

100% full load burn-in test

Low cost, high reliability

Suitable for LEDlighting and moving sign applications

It can used for LED lighting strips,LCD Monitor,CCTV Camera,Displayers.and home appliance....ect.

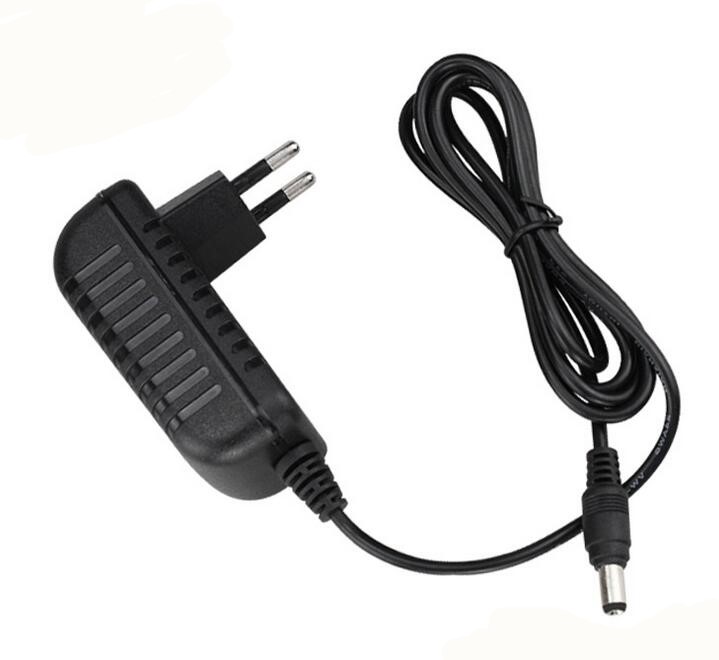

Model:JYH32-0900500
Output:

     9V 0.5A
       Power(max):4.5W

        Ripple & noise (max.):100mVp-p

        Efficiency:75%

        Voltage tolerance:5.0%

        Lineregulation:1.0%

        Load regulation:1.0%

        Setup time:100ms / 115VAC at full load

        Hold up time:30ms/115VAC at full load

Input:

        Input voltages: 90~264V AC

        Frequency range: 47~63Hz

        AC Current (max.): 0.2A/115VAC     0.1A/230VAC

        Inrush current(max.):COLD START 30A/115VAC  60A/230VAC

Protection:

        Over voltage protection/Over current protection/Short circuit

Environment:

        Working temperatures: 0 ~ 40

        Storage temperatures: -20 ~ 70

        Working humidity:20% ~ 90% R.H non-condensing

Safety &EMC:

        Safety standard:UL GS SAA KCC BSI PSE CCC

        EMC Standards:CE EN55022B  FCC

        Green mode:Noload Power Consumption Less Than 0.3W

MTBF:50000hrs min.  MIL-HDBK-217F (25 )

Dimension:60*39*27MM(L*W*H)

Weight:80g/pcs
