| Type: | Digital Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE certification |
| Weight: | 400kg |
| Dimensions(L*W*H): | 3.12*1.12*1.34m |
| Gross Power: | Under 1500VA |
| Voltage: | 220V |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | hybrid UV printer |
| Model Number: | WT-M1820 |
| Brand Name: | Wute |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
| Printhead: | DX7 |
| Printhead Quantity: | 2PCS |
| Printing size: | 1.8m |
Quick Details
Specifications

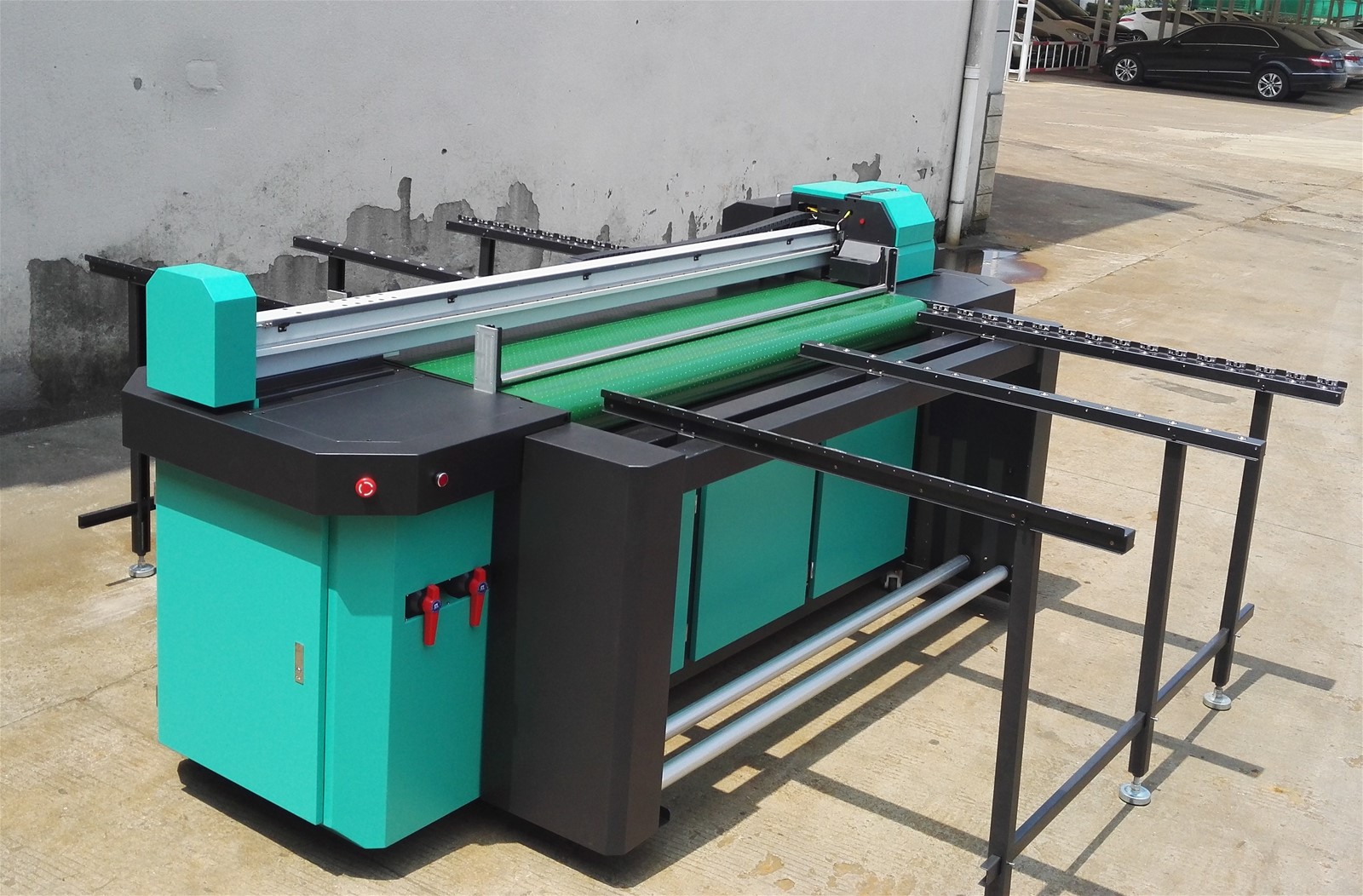

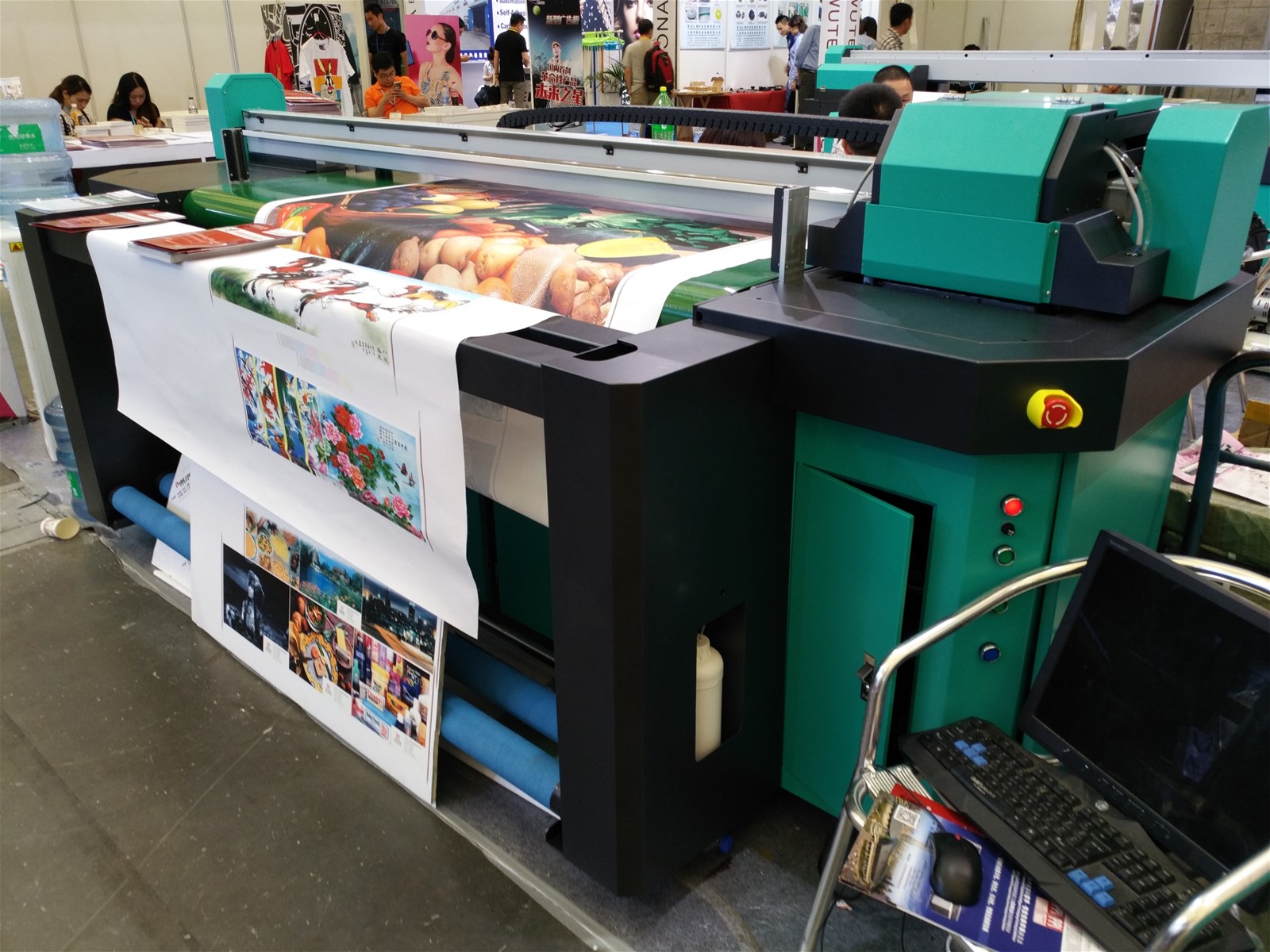

1.8m Multifuncition Hybrid UV Flatbed&Roll to Roll Printer
Features:
New innovation
CNC milled aluminum brick print head mounting base - Never distorted
User friendly print head physical position and angle adjusting
New CNC milled aluminum capping block seal print head tightly
Multifunction
the best new improved control boards to protect print heads
Front and MID. Heating system with PID temperature control unit
Taking up / Feeding system to maintain long feeding
New developed sub tank system to ensure good ink supply
Easy control
Rip maintop5.3 User friendly control console software
USB2.0 high speed interface for large volume data transferring
Model |
WT-M1820 | |
Printing Method |
Piezo Ink-jet Method (DX7 Print Head) | |
Printing Width |
1800mm | |
Conditions for Usable Media |
Type |
Roll to roll material or rigid flat material(Banner,KT board,glass, Steel plate, marble,wooden plate ,leather,wallpaper, Non-woven fabrics etc ) |
Max Thickness |
5.0CM | |
Material Weight |
No limited | |
Ink Cartridge |
Type |
Eco-solvent Ink+coating /UV ink |
Capacity |
1000ml | |
Color |
4color(C M Y K) | |
Capacity |
Continuous Ink Supply Cartridge | |
Color Gamut Performance |
1670 Million Color | |
Printing Resolution |
2Pass 720X720dpi 25-30sqm/h | |
3Pass 720X1080dpi 18-20 sqm/h | ||
4Pass 720X1440dpi 13-15 sqm/h | ||
6Pass 720X2160dpi 8-12 sqm/h | ||
8Pass 720X2880dpi 4-6 sqm/h | ||
Media Control |
Automatic Feeding System | |
Media Sensors |
Two sides: front and back | |
Height of Printing Heads |
Two types optional :1.5mm/2.5mm | |
Printing Heads Cleaning |
Automatic cleaning and manual cleaning | |
Interface |
USB2.0 | |
Software |
1 |
Maintop or ultraprint |
2 |
Photoprint(option) | |
Power-saving Function |
Automatic Sleep Feature | |
Power consumption |
under 1500VA | |
Environmental |
|
Temperature: 10 to 30°C Humidity: 40 to 70%RH (non-condensing) |
