| Place of Origin: | Chile |
|---|---|
| Brand Name: | TZJD |
| Model Number: | 6090A |
| Machine color: | Red, as customize |
| Structure: | Steel square tube welding whole body |
| Working area: | 600mm*900mm*100mm |
| Spindle: | 2.2kw water-cooling spindle power |
| Motor driver: | Stepper |
| Interface: | USB |
| Working table: | Vacuum absorptional table |
| Inverter: | Fulling |
| Control system: | Ncstudio card |
| Software: | Original Type3 |
Quick Details
Specifications
Factory supply! Low price Wood CNC Machine TZJD-6090A
1- Specification Parameter
Dust collector system, spindle cover, Japan Panasonic
Servo motor, vacuum absorption table & vacuum pump
system, Auto-oiling system, Tool-sensor,
Description
Parameter
TZJD-6090A
Working Area (X*Y*Zmm)
600mm*900mm*100mm
Max Engraving Speed
6000mm/min
Frame
Cast Steel
Spindle power(KW)
1.5 KW/2.2KW/3KW
Max. Power Consumption(Without spindle)
1.2KW
Spindle Speed
6000-24000rpm
Resolution
0.005mm
Repeatability
0.01mm
Voltage
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor
Stepper(option:Servo motor)
Working Dictate
G Code*.u00*.mmg*.plt
Operating system
Nc-studio/DSP optional
Software environment
Windows98/2000/xp
Interface
USB
Flash memory
128M(U Disk)
Software Compatability
Type3,,Ucancam,Artcam Software)
Running Environemt
Temperature: 0℃～45℃
Relative humidity: 30%～75%
Machine available
2- Product features
1. German Ball Screw Nut and imported Guide; guarantee the long-life using.
2. Broken-point memory ensures the continuity of work when inciddent happens.
3, Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy; Solid gantry, well structure of lathe bed, stable lathe table.
4. High power cutting of Desktop CNC Router ensures the smoothness and clearness of the processed metal.
5. Aluminum decorated appearance, beautiful shape and magnificent looking.
6. Wide range of use: Architecture model, school, government departments and enterprises.
7. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
3- Applicable industry
can be used for advertisement engraving and cutting, handicraft industry, various types of man-made plate,
LED, Neon literlly cutting groove, stone processing, mold manufacturing, wood processing, craft manufacturing,
light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing,
sign and mark manufacturing, acrylic board processing,PCB circult board engraving.
4- Applicable material
Acryl ,wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board,
breastplate, indoor & outdoor decoration,etc.

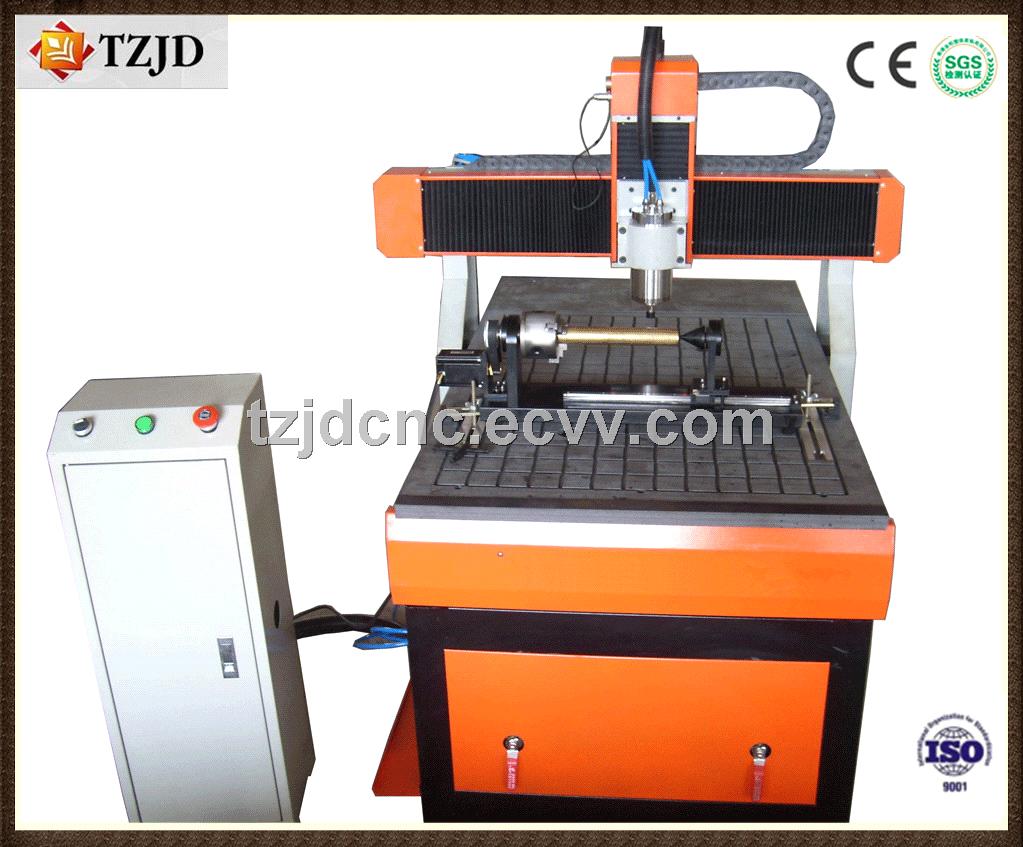

5- Machine picture

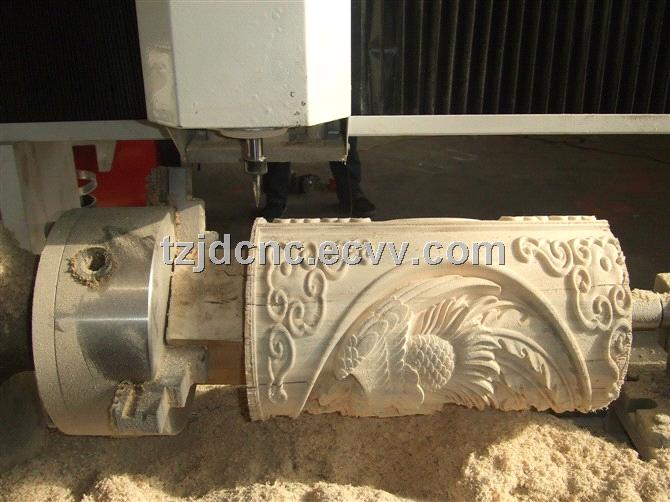

6- Sample picture
