| Connection: | Plug In |
|---|---|
| Usage: | Game Player |
| Brand Name: | JP |
| Type: | PLUG-IN TYPE |
| Model Number: | JYH32-0501500 |
| Place of Origin: | China (Mainland) |
| Input Voltage: | 90-264VAC |
| Output: | 5V 1.5A |
| Size: | 74*45*30mm |
| Warranty: | 1 year |
| DC Connctor: | 5.5*2.1*10mm(optional) |
| Power: | 7.5W |
| Color: | Black |
| protection: | Over Current,Over Voltage/Short Circuit Protection |
| Cetification: | CE UL FCC SAA GS C-tick Cul |
Quick Details
Specifications

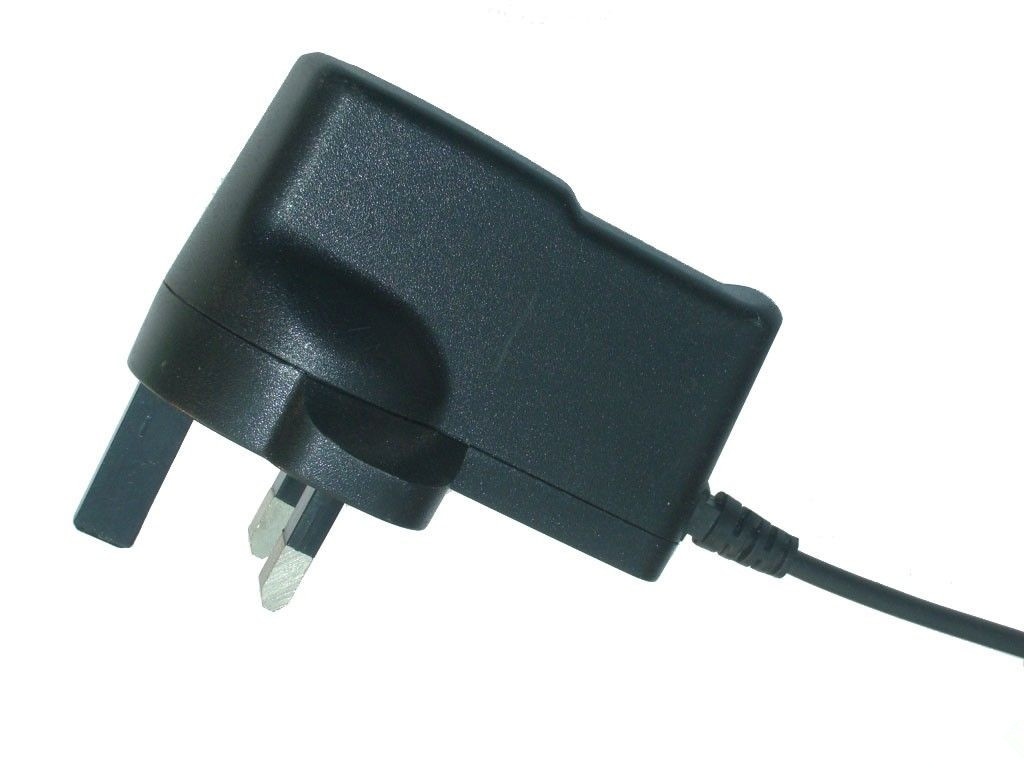

AC to DC 5V 1.5A Power Adapter Switching with 2.1*5.5mm for LED lighting and moving sign applications
Features:
Universal AC input / Full range
Protections: Short circuit / over current / over voltage
Cooling by free air convection
Small and compact size
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
Model:JYH32-0501500
Output:
5V1.5A
Power(max):7.5W
Ripple&noise(max.):100mVp-p
EFficiency:80%
VOltage tolerance:5.0%
LineRegulation:1.0%
LOad regulation:1.0%
Setup time:100ms / 115VAC at full load
HOld up time:30ms/115VAC at full load
Input:
Input voltages: 90~264V AC
Frequency Range: 47~63Hz
AC Current (max.): 0.4A/115VAC 0.2/230VAC
Inrush Current(max.):COLD START 30A/115VAC 60A/230VAC
Protection:
over Voltage protection/over current protection/Short circuit
ENvironment:
Working Temperatures: 0 ~ 40
Storage Temperatures: -20~ 70
Working Humidity:20% ~ 90% R.H non-condensing
Safety&EMC:
SAfety standard:UL GS SAA KCC BSI PSE CCC
EMC STandards:CE EN55022B FCC
GReen mode:Noload Power Consumption Less Than 0.3W
MTBF:50000hrs min. MIL-HDBK-217F (25 )
DImension:68*40*34mm(L*W*H)
Weight:130g/pcs
