Product Main

Quick Details

LED Light Source: 1W 36PCS
Input Voltage(V): 12V~24V
Lamp Power(W): 36W
Lamp Luminous Flux(lm): 3600LM
Lamp Luminous Efficiency(lm/w): 90-100lm
CRI (Ra>): 80
Color Temperature(CCT): RGB/white/warm white/red/green/blue/yellow/orange/purple/pink
Working Temperature(℃): -40 - 55
Working Lifetime(Hour): 50000
IP Rating: IP68
Certification: CE,CQC,EMC,GS,LVD,PSE,ROHS,REACH,SAA,UL
Lamp Body Material: S/S316 & Toughened glass
Base Type: screws
Place of Origin: China (Mainland)
Brand Name: Shengwei
Model Number: SW-SDD-36W

Specifications

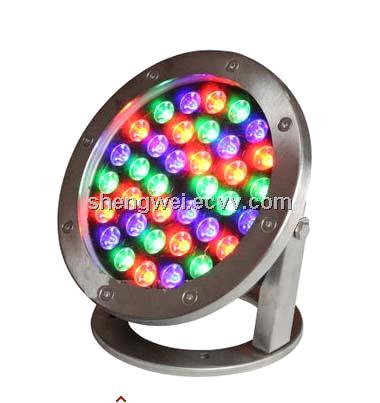

36W LED Underwater Light/Fountain Light

Product Description

Specification

1. Projecting distance: 10m
2. Color: Red yellow blue green white warmwhite RGB etc.
3. Size: D230mm*H240mm
4. LED power: 36*1W
5. Voltage: DC24V/AC85-265V
6. Power: 36W
7. Beam angle: 15deg, 30deg, 45deg or 60deg
8. Color range: RGB or single color
9. Life Span: >50000hrs
10. Work temperature: -20 -+50 degree
11. IP rating: IP68
12. Lumems: 3600lm
13. Certification: CE, RoHS
14. Warranty: 3 years

-----------------------------------------------------------------------------------------------

Features

1. Adopting 3*1W high power LEDs as lighting source
2. Energy saving, environment protecing and long life
3. Low working voltage, secure and reliable
4. Good weatherability and pressure resistance
5. No UV or IR radiation, green product
6. Low power consumption and high intensity, good color saturation
7. Protecting rating: IP68, can work under water for long time
8. Long working life >50000hrs
9. Energy saving up to 80%
10. Working Lifetime: 50, 000hs
11. Easily and fastly installl or replace traditional lamp

-----------------------------------------------------------------------------------------------

Application

Use as under water lighting for swimming pool, fish ponds, fountains, water lighting features etc.

This LED underwater light can be designed into multi colors.

-----------------------------------------------------------------------------------------------

Colour Choose

The colour can be changable which has 7 different colours or pure colour. But if you request pure colour, we also can design for you.

-----------------------------------------------------------------------------------------------

Remark

1. Warranty: 3 Year
2. Battery and charger warranty: Three months.
3. Certification: CE RoHS
4. Payment: If your order above 1K, you can pay 30% as deposit, 70% must be paid before shipping 5. Product delivery time: Sample: 3days. 100-500PCS: 5-7days. 500-2000PCS: 10-15days.


For any further information about our Led Underwater Light, just be free to contact me.

Model                           Material Luminous flux Led Chips Voltage Emitted Color Beam Angle
SW-AS-SDD-3W Stainless steel+Toughened glass 300lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW-AS-SDD-6W Stainless steel+Toughened glass 6 00lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW- AS-SDD- 9 W Stainless steel+Toughened glass 900lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW- AS-SDD-12W Stainless steel+Toughened glass 1 2 00lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW- AS-SDD-15W Stainless steel+Toughened glass 1500lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW-AS-SDD-18W Stainless steel+Toughened glass 1800lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW-AS-SDD-24W Stainless steel+Toughened glass 2400lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
SW-AS-SDD-36W Stainless steel+Toughened glass 3600lm Bridgelux45mil DC24V/AC85V-265V 50HZ-60HZ Warm White,White,Red,Blue,Green,RGB 15/30/45/60deg
