| Model Number: | SW-MZ-4D |
|---|---|
| Chip Material: | InGaN |
| Emitting Color: | |
| Luminous Intensity: | 24000MCD |
| Luminous Flux(lm): | 80LM |
| Optical Attenuation(%): | 3 |
| Power: | |
| Power Dissipation: | 1 |
| Viewing Angle(°): | -50 - 80 |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2700k~12000k,Red yellow blue green white warmwhite RGB |
| Operating Temperature(℃): | -30 - 50 |
| Storage Temperature(℃): | -40 - 60 |
| Place of Origin: | China (Mainland) |
| Brand Name: | Shengwei |
| Certification: | CE,ROHS |
Quick Details
Specifications
- Export Markets: North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Product Description
Mode: LS-Pri4-module

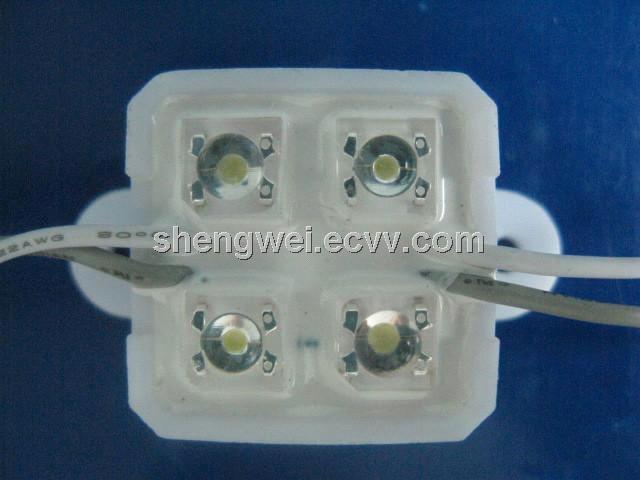

Product Name: Four lamps LED Piranha Module
Available color: Red/Green/Blue/Yellow/White/Multicolor
Applications: Commercial advertising signs
CE, RoHS Approved / Two Years Warranty /Return Policy Available
| Part Number: LS-Pri4-module | Application: channel letters string and festival illumination | |
| LED type: Piranha | LED quantity: 4 LED | |
| Physical dimension:36mm (dia) *36mm (Length) | Operating voltage: 12 VDC | |
| Power consumption: 0.24 Watt per lamp, | Operating temperature: -40oC ~ +50oC | |
| Emitting color: W,R, G, B, Y ,Multicolor | Luminous output each color: as per datasheet | |
| Beam angle: 12 0o | Life span: 35000 hours | |
| Defend grade: IP65 | Driven mode: Constant voltage | |
