| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Certification: | CE |
| Model Number: | 3636 |
| Brand Name: | NICE-CUT |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Condition: | New |
| Place of Origin: | China (Mainland) |
| Brand Name: | NICE CUT |
| Model Number: | NC-3636 |
| Voltage: | 380V 50/60HZ |
| Power(W): | 1.5KW |
| Dimension(L*W*H): | 360*360MM |
| Weight: | 300KG |
| Certification: | CE |
| Warranty: | 1 YEAR |
Quick Details
Specifications
NC-3636 CNC ROUTER preto black granite marble cutting machine /cnc router granite cutters prices
1 X,Y,Z Working Area 360*360mm
2 Table Size 1440×3040mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Positioning Accuracy ±0.05mm
5 Lathe Structure Welded Structure
6 X, Y Structure Gear Wheel Transmission, Shaft Linear Bearings

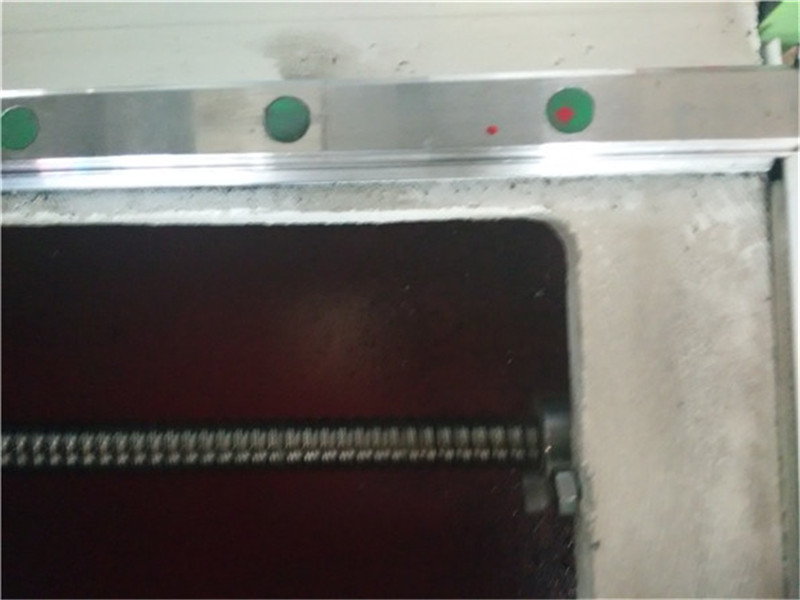

7 Z Structure Ball Screw, Shaft Linear Bearings
8 Max. Consume power 6.5Kw
9 Max. Speed 0-32000mm/min
10 Max. Working Speed 0-20000mm/min
11 Spindle Power Motor 1.5kw water coolant Spindle
12 Spindle Speed 0-24000RPM
13 Drive Mode Stepper Motor
14 Working Voltage AC220V/380V, 50/60Hz
15 Command G Code, *uoo, *mmg, *plt
16 Operating System DSP Control System
17 Interface USB
18 Flash Memory 128M
19 Collet ER25
20 X,Y Working Delicacy <0.01mm
21 Software Type3, Ucancam, Artcam
22 Running Circumstance Temperature: 0°C~45°C Relative humidity: 30%~75%
23 Packing Size Separated: 3200X1950X1404mm
24 Net Weight 900KG
25 Gross Weight 1150KG
All parameters above subject to change without prior notice
1.Precision traveling of Y axis driven by double motors ensures the stable performance of our marble cnc router.
2.High accuracy,high speed and strong power are ensured by the high precision rack gear transmission.

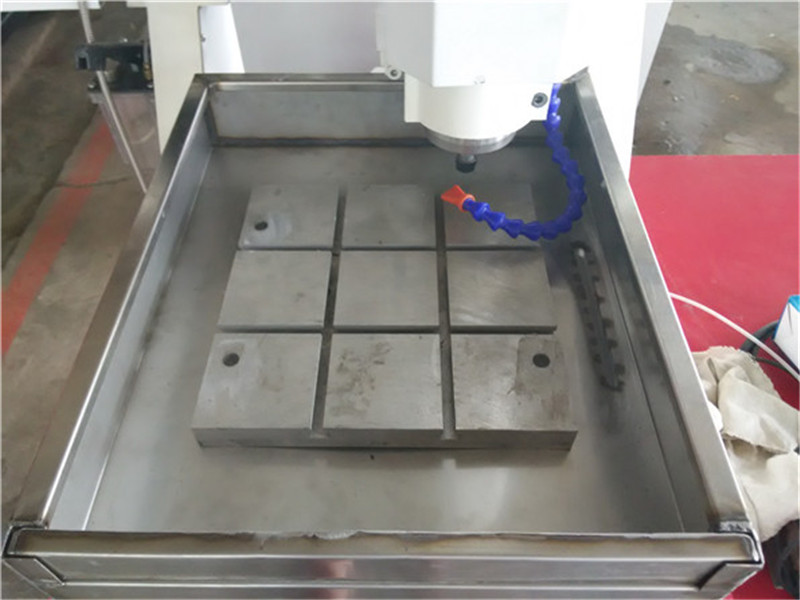

3.This marble cnc router is configured with water tank and antomatic cooling water supply system.
