| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO,CE |
| Weight: | 1050kg |
| Max. Lifting Height: | 1730mm |
| Min. Lifting Height: | 350mm |
| Rated Loading Capacity: | 3500kg |
| Power: | 2.2kw |
| Lift Drive / Actuation: | Hydraulic |
| Lift Mechanism: | Lift Chain |
| Model Number: | SXJS3517 |
| Brand Name: | Sunshine |
| Place of Origin: | China (Mainland) |
| Lifting Time (Loaded): | 50s |
| Overall Width: | 3097mm |
| Model Number: | 2241mm |
| Distance Between Post: | Car Lift |
| Width of Each Platforms: | 508mm |
| Width Between Platforms: | 900mm |
| Length of Platform: | 4300mm |
| Overall Length: | 5415mm |
| Overall Height: | 2020mm |
| Ramp width: | 490mm |
Quick Details
Specifications

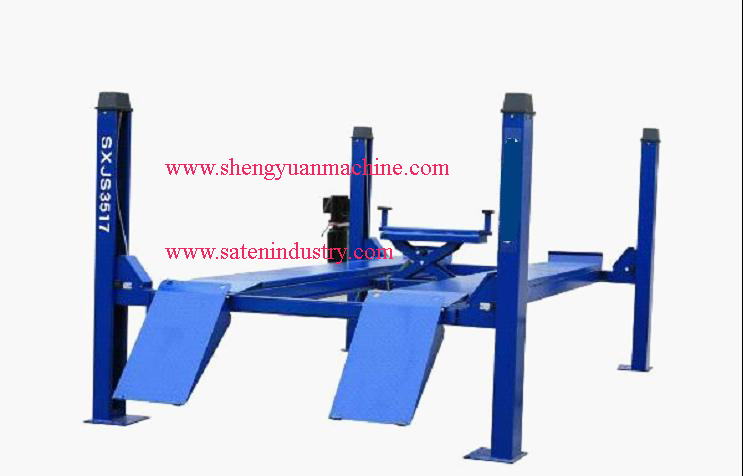

Model: SXJS3517
4 Post alignment lift with Manual release 3.5tons
Come with Rolling jacks and Side Slipping plate.
.............................................................................
Specifications:
Lifting Capacity: 3500Kg (8000lbs)
Sec. Lifting Capacity: 2000Kg
Lifting Height: 1730mm
Sec. Lifting Height: 350mm
Lifting Time (Loaded): 50s
Lowering Time (Loaded): 30s
Power Supply Voltage: 220V,1ph or 380V, 3ph
Motor Power: 2.2Kw
Overall Width: 3097mm
Distance Between Post: 2241mm
Width Between Platforms: 900mm
Width of Each Platforms: 508mm
Length of Platform: 4300mm
Overall Length: 5415mm
Overall Height: 2020mm
Ramp width: 490mm
Ramp length:880mm
Net Weight: 1050Kg Gross Weight: 1100Kg
Cubic Meter: 3.00cbm
Shipping:
9 pieces / 20'container
18 pieces / 40'container
