| Item Type: | Underground Lights |
|---|---|
| Light Source: | LED |
| Model Number: | E3W-01 |
| Brand Name: | CBY |
| Place of Origin: | China (Mainland) |
| Certification: | CCC,CE,CQC,EMC,Energy Star,FCC,LVD,RoHS,UL |
| IP Rating: | IP68 |
| Lamp Body Material: | Aluminum Alloy |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | all kinds is avialbale |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 110 |
| Lamp Luminous Flux(lm): | 330 |
| Lamp Power(W): | 3 |
| Input Voltage(V): | 85-265VAC |
| Warranty(Year): | 3 |
| LED Light Source: | 1W high power |
Quick Details
Specifications
Specifications of led underground lamp:
|
Model |
CBY-E3W-01 |
|
LED Qty |
3pcs 1W |
|
LED Color |
W/WW/R/G/B/Y/RGB |
|
Power |
3w |
|
Optioanal Power |
1w/3w/5w/6w/7w/9w/12w/15w/18w/24w/36w |
|
Voltage |
AC85-265V |
|
Frequency Range |
50-60HZ |
|
Color Temperature |
WW: 2700-3500K PW: 4000-5500K CW: 6000-7000K |
|
Power Factor |
> 90% |
|
Lamp Efficiency |
> 85% |
|
Lumen |
White: 90—100lm/w; warm white: 80—90lm/w; red: 20—25lm; Yellow: 20—25lm; blue: 10—15lm; green: 70—80lm |
|
CRI |
> 80 |
|
Beam Angle |
15°/30°/45°/60° |
|
Working Temperature |
-35°C-+70°C |
|
Life Span |
50,000hours |
|
IP Grade |
IP65 |
|
Material |
Stainless Steel/Aluminum+Tempered Glass |
|
Dimension |
Φ110×H85mm Cut size: 95mm |
|
Certification |
CE ROHS |
|
Warranty Period |
3years |
Main features of led undergroud light:
1. 80% energy saving than traditional lamp
2. No flickering
2. No RF interference
4. No UV radiation
5. Proprietary design for excellent thermal management
7. Recessed mounted, easy installation and maintenance free
8. Super bright and low lumen attenuation
9. The light has a fashionable and attractive out-looking which
widely use in garden pond, swimming pool, fountain and so on
10. IP68 for waterproof use
11. CE, ROHS approved.
Why choose our led led underground light:
1. 45mil Bridgelux chips , it has higher Lumen output and small light failure.
2. Strong stability constant current driver , make the lamps work more stably
3. Using the latest Phase change technology for heat sink . It's better for heat transmission and dissipation
4.3 years warranty !

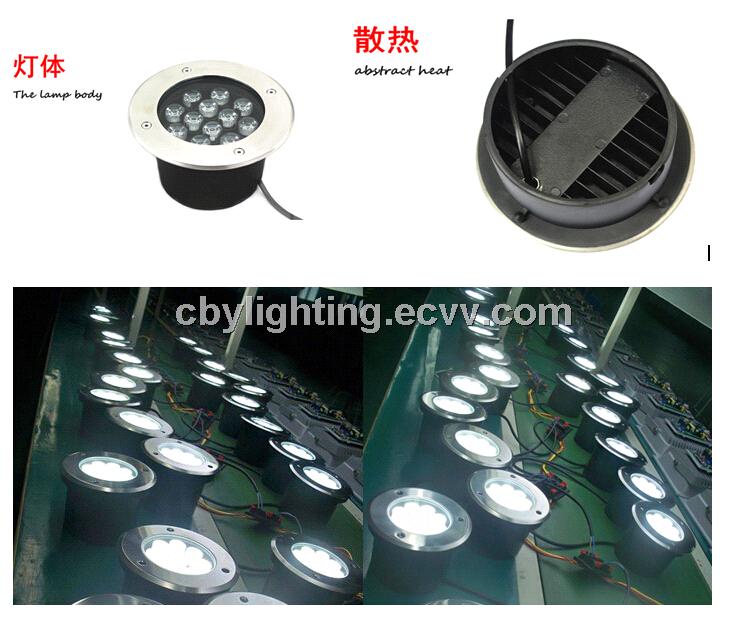

Product details of led high bay light:

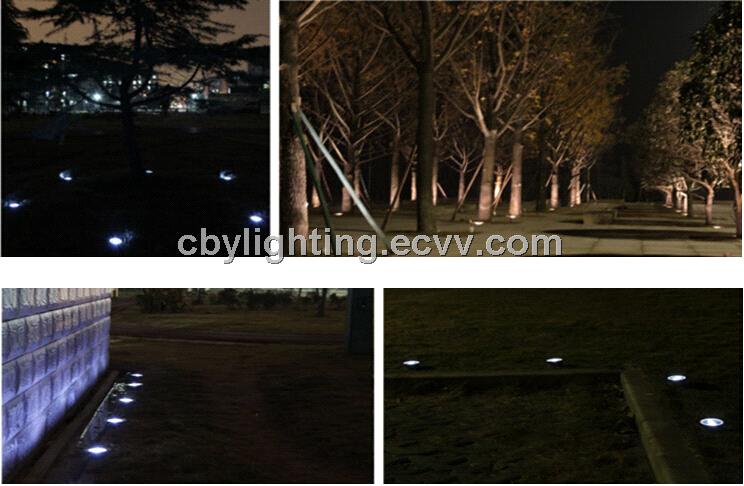

Application of led underground lamp:
