| Item Type: | Light Strips |
|---|---|
| Light Source: | LED |
| Model Number: | SW-bar-5730-18w |
| Brand Name: | Shengwei |
| Place of Origin: | China (Mainland) |
| Emitting Color: | White |
| Certification: | BV,CE,EMC,ETL,FCC,GS,PSE,RoHS,SAA,UL |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | 27000-12000K,red,yello,blue,green,white,warmwhite,rgb |
| CRI (Ra>): | 80 |
| Lamp Luminous Flux(lm): | 80 |
| Lamp Power: | 18W |
| Input Voltage(V): | 12v/24V |
| Type: | LED Bar Lights |
| LED Light Source: | SMD5630 |
| LED Light Source: | SMD5730 |
| Type: | LED Bar Lights |
| Input Voltage(V): | 12V/24V |
| Lamp Power: | 18 |
| Lamp Luminous Flux(lm): | 3600LM |
| CRI (Ra>): | 90 |
| Color Temperature(CCT): | red,yello,blue,green,white,warmwhite,rgb |
| Working Temperature(℃): | -40 - 50 |
| Working Lifetime(Hour): | 100000 |
| Lamp Body Material: | Aluminum Alloy |
Quick Details
Specifications

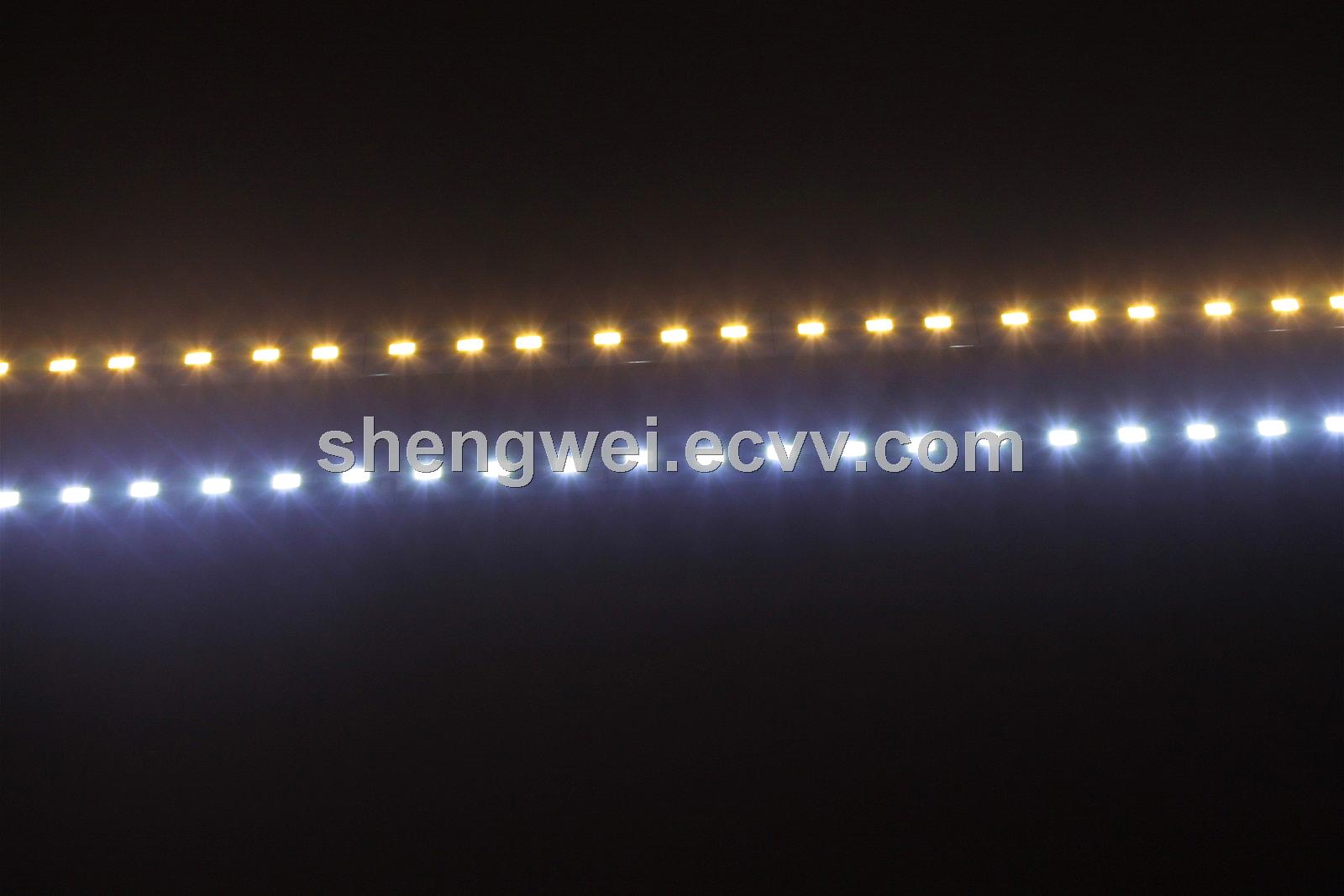

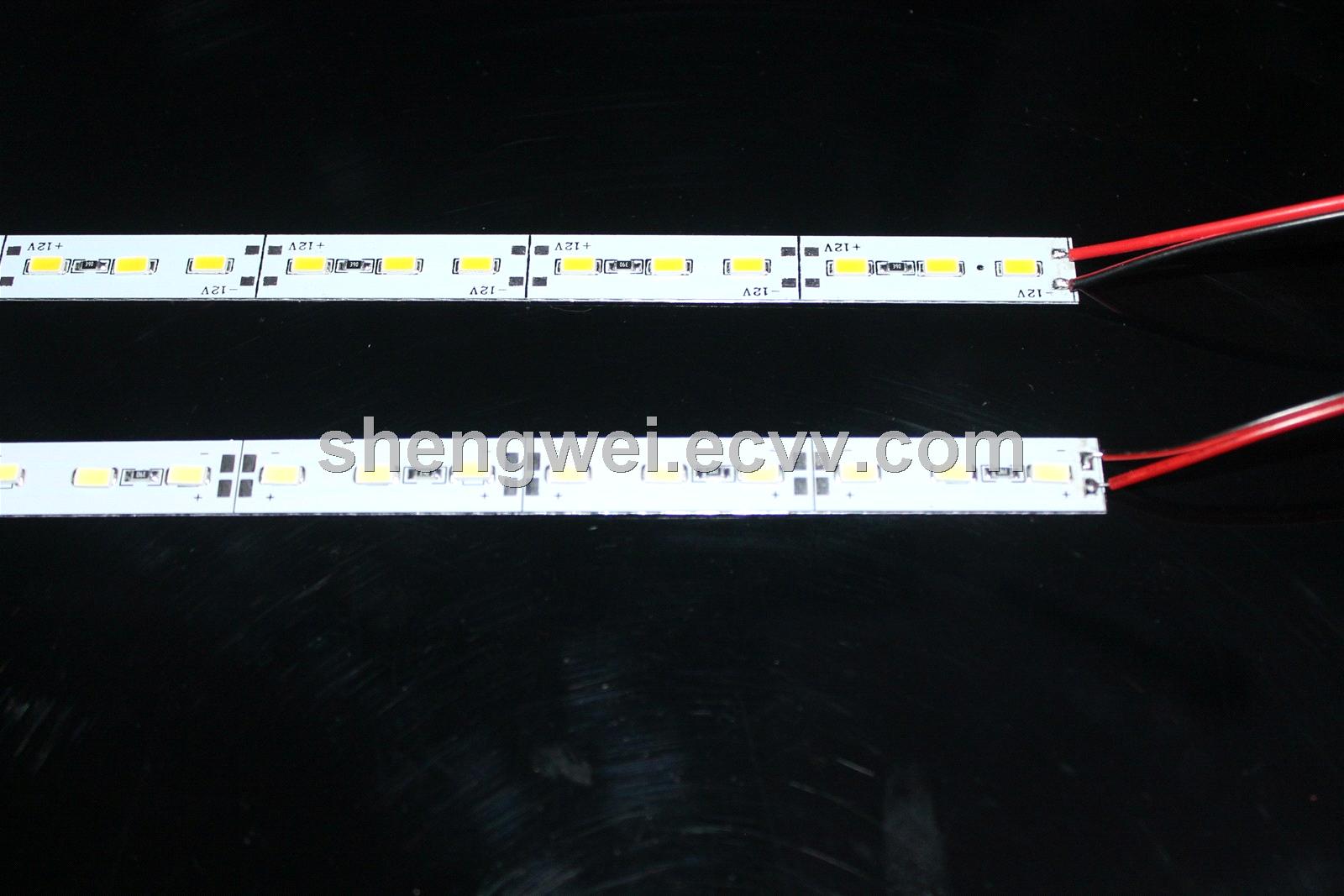

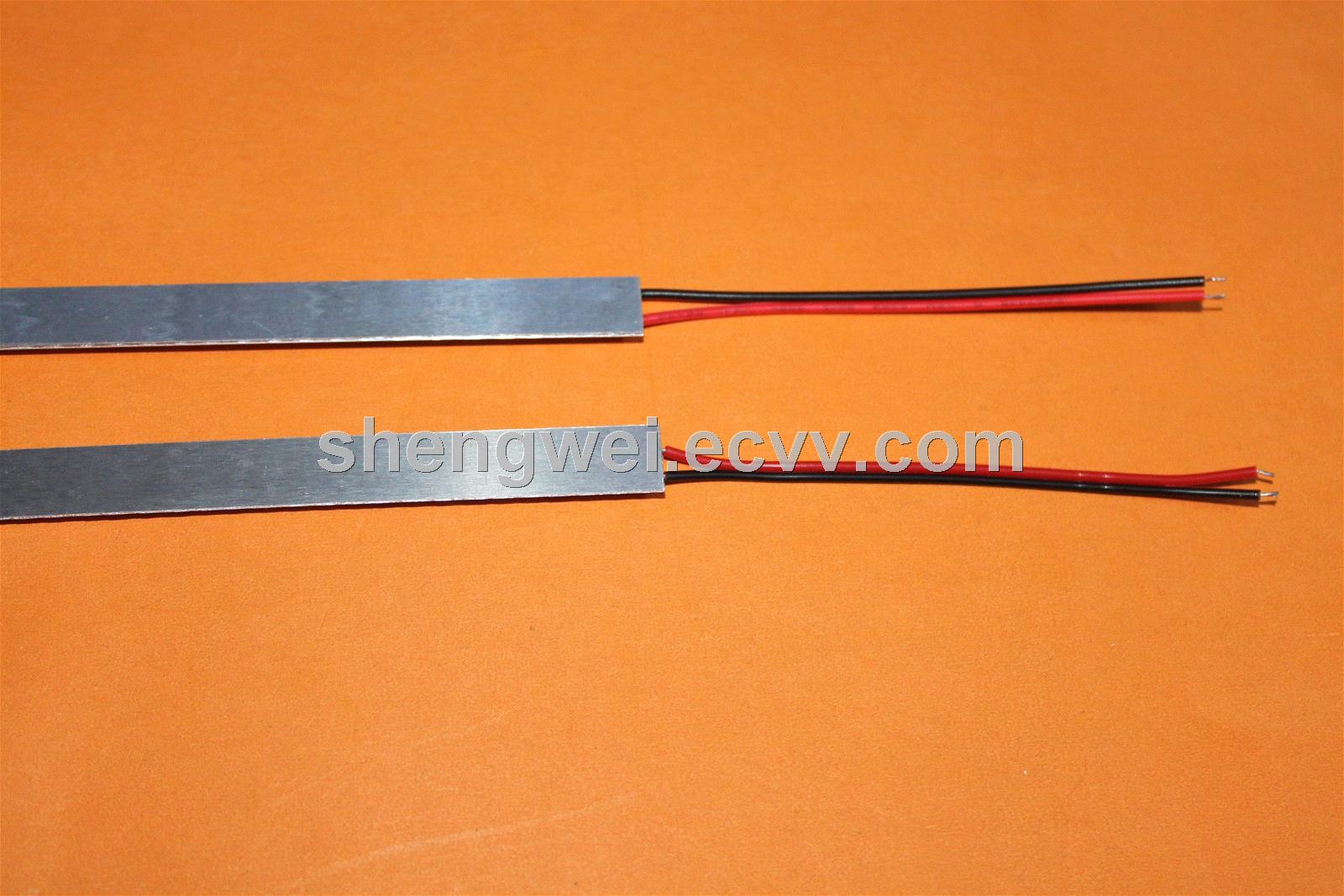

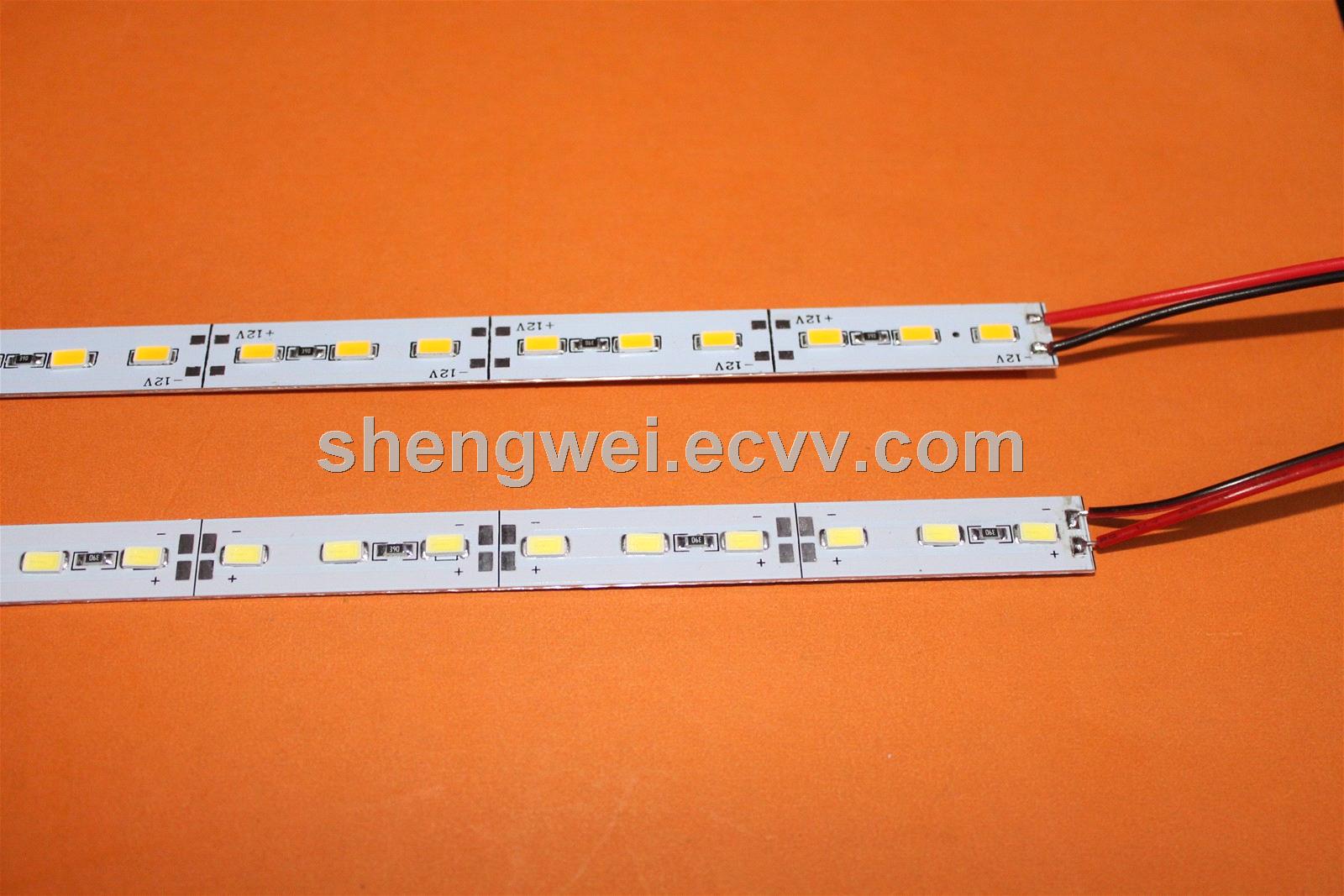

High bright 5730/5630 rigid led light bar 60 led/meter:
Products Advantages:
1. Competive Price
2. High luminous efficiency, good color, high brightness
3. Epistar chip
4,one year warranty CE Rohs approved!
5, high SMT Machine to sure fast delivery time.Products Specifications
Production Features:
1. Input voltages: DC12V/24V
2. Available Colors: Red, Green, Blue, Yellow, White, Cool White
3. Lens Angle: 120 Degree
4. PCB Materials: Aluminium base board
5. LED packages: 5730/5630
6. LED Quantitys: 30/60/72 per meter
7. MTBF: 50,000 hours
Applications:
1) Illuminating signs
2) Path & contour marking
3) Edge-Lighting of transparent or diffused materials
4) Decorating lighting.
5) Architectural decoration Lighting
6) Backing lighting for under water project
7) Archway/Canopy & Bridge Edge Lighting
8) Amusement park/ Theater/ Aircraft cabin mood lighting
9) Furniture Decoration Lighting
10) Cove lighting
11) Channel letters lighting
12) Stairway Accent lighting
| Part Number | Color | LED Type | LED qty /m | PCB Size | Length/PCS | ||
| SW-W60-5630/5730 | White | SMD5630/5730 | 30/60/72pcs | 1000*10mm | 1m/pcs | ||
| SW-WW60-5630/5730 | Warm White | ||||||
